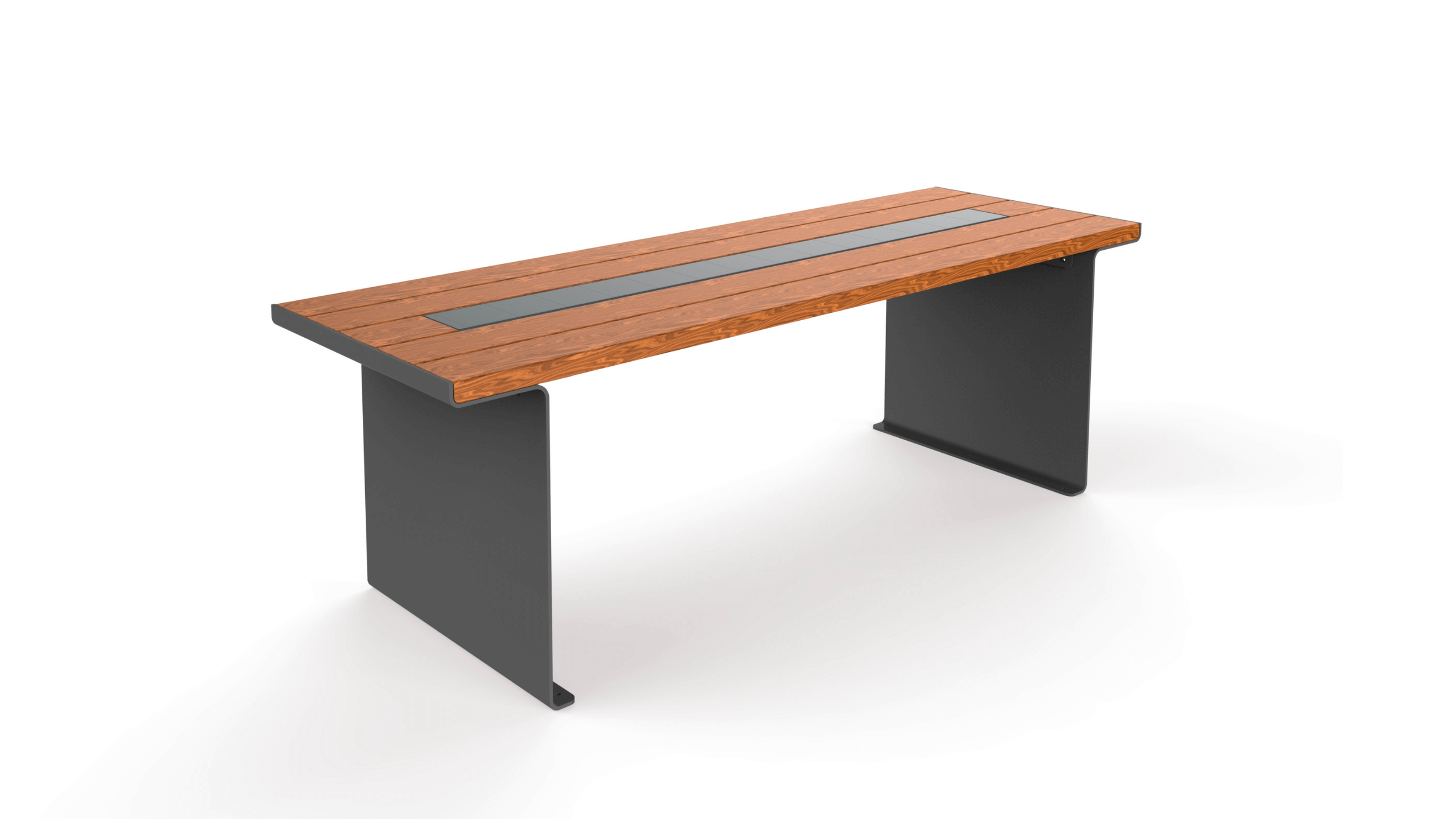

Table 25206.SOLAR
€2,430.00 excl. VAT
Additional information
| Material & finish | Carbon steel galvanized & painted, Stainless steel |
|---|---|
| WiFi panel | No, Yes |
| Air Quality sensor | No, Yes |
DESCRIPTION
Innovative & Sustainable
The Table 25206.SOLAR redefines urban furniture by integrating cutting-edge technology with contemporary design tailored for modern work and study needs as well as practical everyday use – convenient device charging. Every time you charge your device on the solar table, you promote using renewable energy, helping to reduce CO₂ emissions and positively impacting the future of our planet.
Featuring a 48 W solar panel and a 20 Ah Li-Ion battery, Table 25206.SOLAR generates 100% clean energy to power its LED lighting and two wireless charging surfaces, ensuring functionality both day and night even cloudy conditions.
In addition to night-time lighting and charging surfaces, the Table 25206.SOLAR offers modular add-ons, including an air quality sensor with real-time data available in the Dashboard, or a WiFi router integrated into a separate solar-powered panel. These features make it an ideal solution for smart cities, public parks, and other urban spaces, providing connectivity even in off-grid locations where power would otherwise not be available.
Solar furniture series is designed to operate in temperatures ranging from -10°C to 50°C. The table is built to withstand diverse climate conditions while maintaining its performance and aesthetic appeal, thanks to durable materials and corrosion-resistant finishes.
Dashboard
The real-time data of the solar panel can be accessed through the control dashboard. It allows users to manage various solar panel functions, such as LED lighting usage – including scheduling on/off times and monitoring collected air quality data – particulate matter concentration. The dashboard also provides the ability to track battery capacity and cooling fan operation, as well as monitor energy consumption, the number of completed charging sessions, and Wi-Fi signal strength.
Configurations

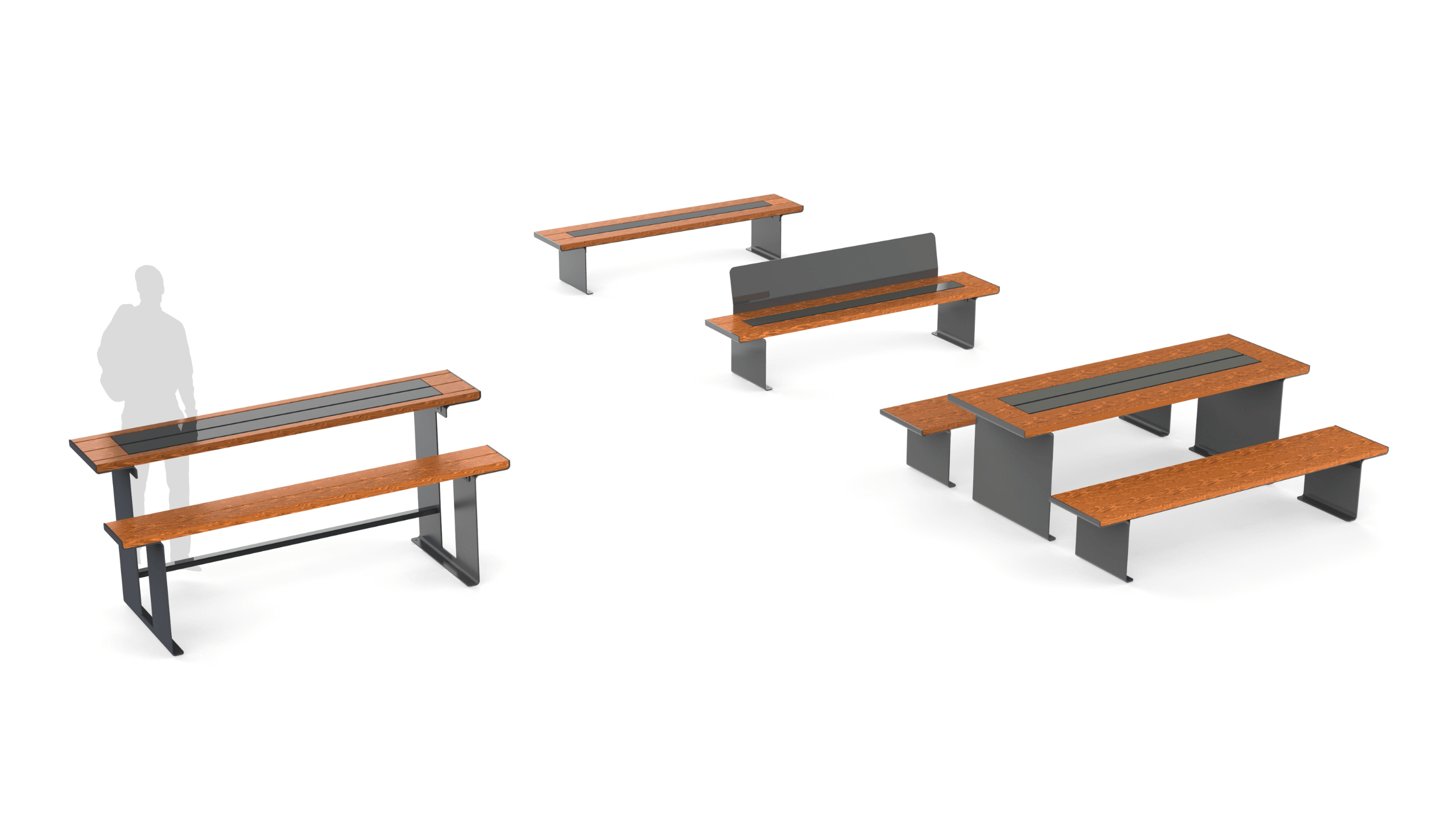

The Table 25206.SOLAR is compatible with benches from the same design line, like models 11210.220 and 11210.BENCH.220. This allows for a uniform design and modular layout in various public spaces.
Standard Features
- Solar panel 48 W
- Battery 20 Ah Li-Ion
- Two wireless charging surfaces
- LED lighting 2 W
- The frame is available in two options:
- Carbon steel treated with anti-corrosion protection and painted
- Stainless steel
- FSC certified tropical wood for table top.
- Color variations for the steel frame include 22 RAL tones, choosing from CONTEMPORARY, NATURE, and ACCENTS color palettes, and 5-6 tones for wooden boards depending on the wood type.
Add-on Options
- Air Quality sensor
- WiFi router (built into a separate panel)
Dashboard Features - GPS location (anti-theft)
- Solar panel energy output
- Electricity drawn during charging
- Battery health and voltage
- LED lighting control
- Fan operation and internal temperature
- Network signal strength
- Air quality data
Dashboard Features
- GPS location (anti-theft)
- Solar panel energy output
- Electricity drawn during charging
- Battery health and voltage
- LED lighting control
- Fan operation and internal temperature
- Network signal strength
- Air quality data
Warranty
Warranty 24 months, battery warranty 12 months.
Operating temp -10 up to 50°C
Certifications CE. RoHS
Installation
The Table 25206.SOLAR is by securing a set of ANCHOR 200 in a concrete footing.
SPECS

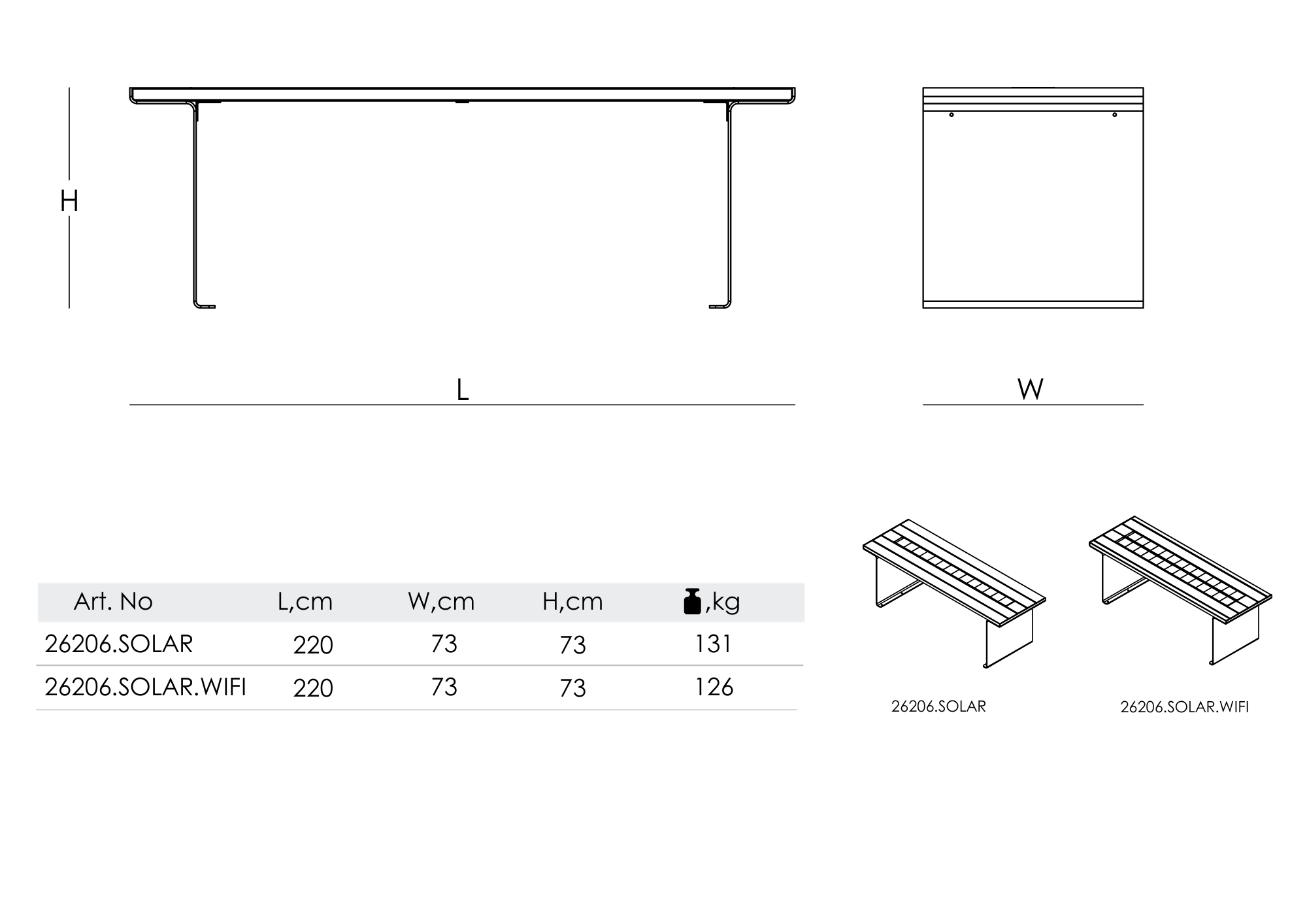

| DIMENSIONS, cm | 73(W) x 220(L) x 73 (H) For Art.No 25206.SOLAR 73(W) x 220(L) x 73 (H) For Art.No 25206.SOLAR.WIFI  |
| WEIGHT, kg | 131 For Art.No 25206.SOLAR 126 For Art.No 25206.SOLAR.WIFI |
| MATERIAL | For table legs: • Carbon steel or • Stainless steel For table top: • Tropical wood more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Stainless steel: • Bead blasted (subject to availability) |
| ELECTRICAL COMPONENTS | • Solar panel 48 W • Battery 20 Ah Li-Ion |
| QTY ON PALLET | 4 units on Pallet 80×200 cm |
Installation
The table 25206.SOLAR is manufactured with pre-drilled holes and supplied with screws, and it requires easy self-assembly.
Mounting method
The table default mounting method is on-ground. Please refer to the Installation Instructions.
If sub-surface fastening is needed, we will make the appropriate modifications to the steel framework. Longer lead time and possible additional charges may apply.
Anchors
The set of the table does not include anchors.
The contractor is responsible for choosing the proper anchoring method and materials depending on the mounting surface, loads, and external conditions.
ANCHOR.200 ensures secure fastening and minor visible elements (countersunk or ‘mushroom’ type bolt). For the bench anchoring 4 sets of ANCHOR.200 can be ordered here.
The table package includes:
- Steel structure (table legs) with holes for anchoring into the ground and for connecting to a wooden table top – 2 pcs of each.
- Wooden table top screwed onto the steel frame – 1 pc.
- Solar panel integrated in to the wooden table top.
- Bolts and nuts for the assembly of table legs to wooden top.
- QR code labels linking to the Installation and Maintenance Instructions.
- Packing list.
Maintenance
Wood is an organic matter and as exposed to the external environment is constantly changing. To minimize the influence of sunlight, variable air humidity and temperatures proper maintenance and renovation should be carried out.
Maintenance manual – Street-furniture-maintenance-manual
Wooden Surface Restoration Guide – Wooden-surface-restoration-guide
