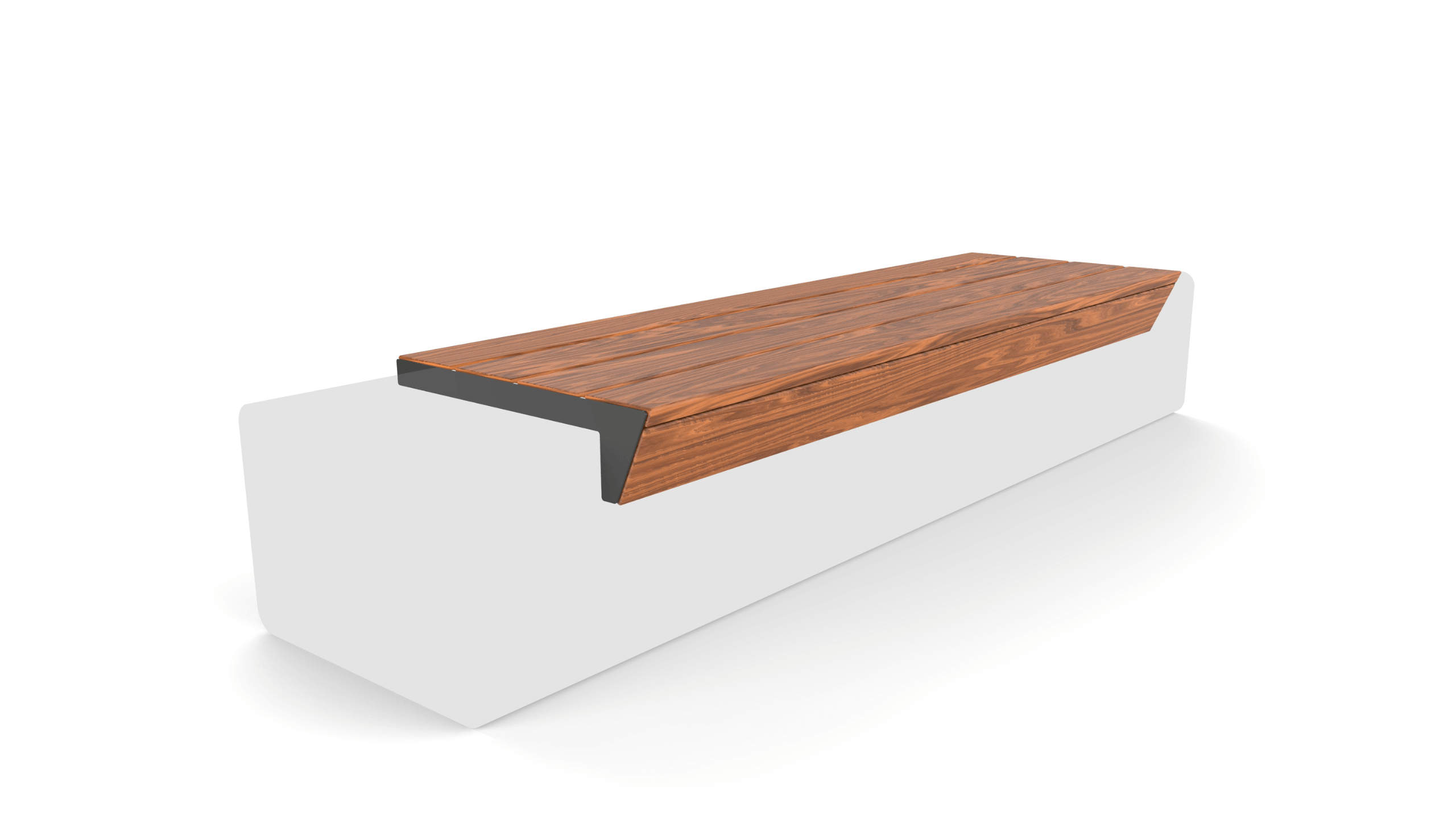

Seating 11205.TOP.BASIC
€225.00 excl. VAT
Additional information
| Weight | 28 kg |
|---|---|
| Dimensions | 191 × 60 × 16 cm |
| Wood type | Pine tree, Tropical wood |
| Backrest | Yes, No |
SPECS

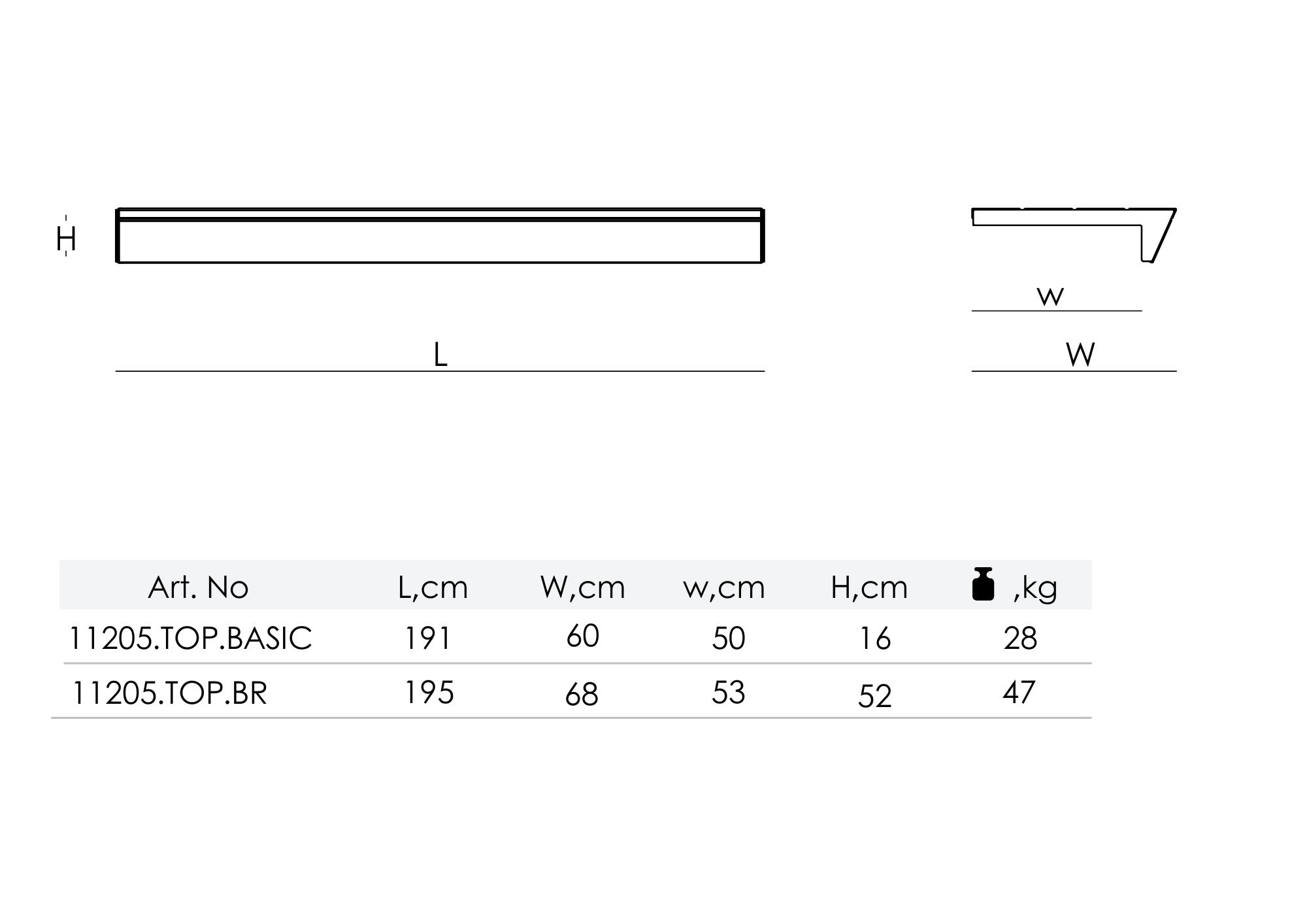

| DIMENSIONS, cm | 60 (W) x 50 (w) x 191 (L) x 16 (H) – For Art.No 11205.TOP.BASIC 68 (W) x 53 (w) x 195 (L) x 52 (H) – For Art.No 11205.TOP.BR  |
| WEIGHT, KG | 28 – For Art.No 11205.TOP.BASIC 47 – For Art.No 11205.TOP.BR |
| MATERIAL | For frame: • Carbon steel For seat and backrest: • Pine tree or • Tropical wood more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted |
| COMPONENTS | Stainless steel bolts for seat and backrest |
| QTY ON PALLET | 5 units on Pallet 80×200 cm |
Installation
The seating 11205.TOP.BASIC is manufactured with pre-drilled holes and supplied with screws, and it requires easy self-assembly.
Mounting method
The seating surface default mounting method is on a concrete foundation. Please refer to the Installation Instructions.
If sub-surface fastening is needed, we will make the appropriate modifications to the steel framework. Longer lead time and possible additional charges may apply.
Anchors
The set of the bench does not include anchors.
The contractor is responsible for choosing the proper anchoring method and materials depending on the mounting surface, loads, and external conditions.
ANCHOR.200 ensures secure fastening and minor visible elements (countersunk or ‘mushroom’ type bolt). For the bench anchoring 4 sets of ANCHOR.200 can be ordered here.
The seating surfaces package includes:
- Steel frame with holes for connecting to a wooden seat and backrest – 2 pcs.
- Wooden seat and backrest screwed onto the steel frame – 1 pc. of each.
- Bolts and nuts for the assembly backrest to seat.
- QR code labels linking to the Installation and Maintenance Instructions.
- Packing list.
Maintenance
Wood is an organic matter and as exposed to the external environment is constantly changing. To minimize the influence of sunlight, variable air humidity and temperatures proper maintenance and renovation should be carried out.
Maintenance manual – Street-furniture-maintenance-manual
Wooden Surface Restoration Guide – Wooden-surface-maintanence-guide
Downloads
Dimensions
Installation scheme
Maintenance manual
CAD Files
