11208.BENCH.60
€240.00 excl. VAT
Additional information
| Wood type | Pine tree, Tropical wood |
|---|---|
| Material & finish | Carbon steel galvanized & painted, Stainless steel |
DESCRIPTION
Functional & Ascetic

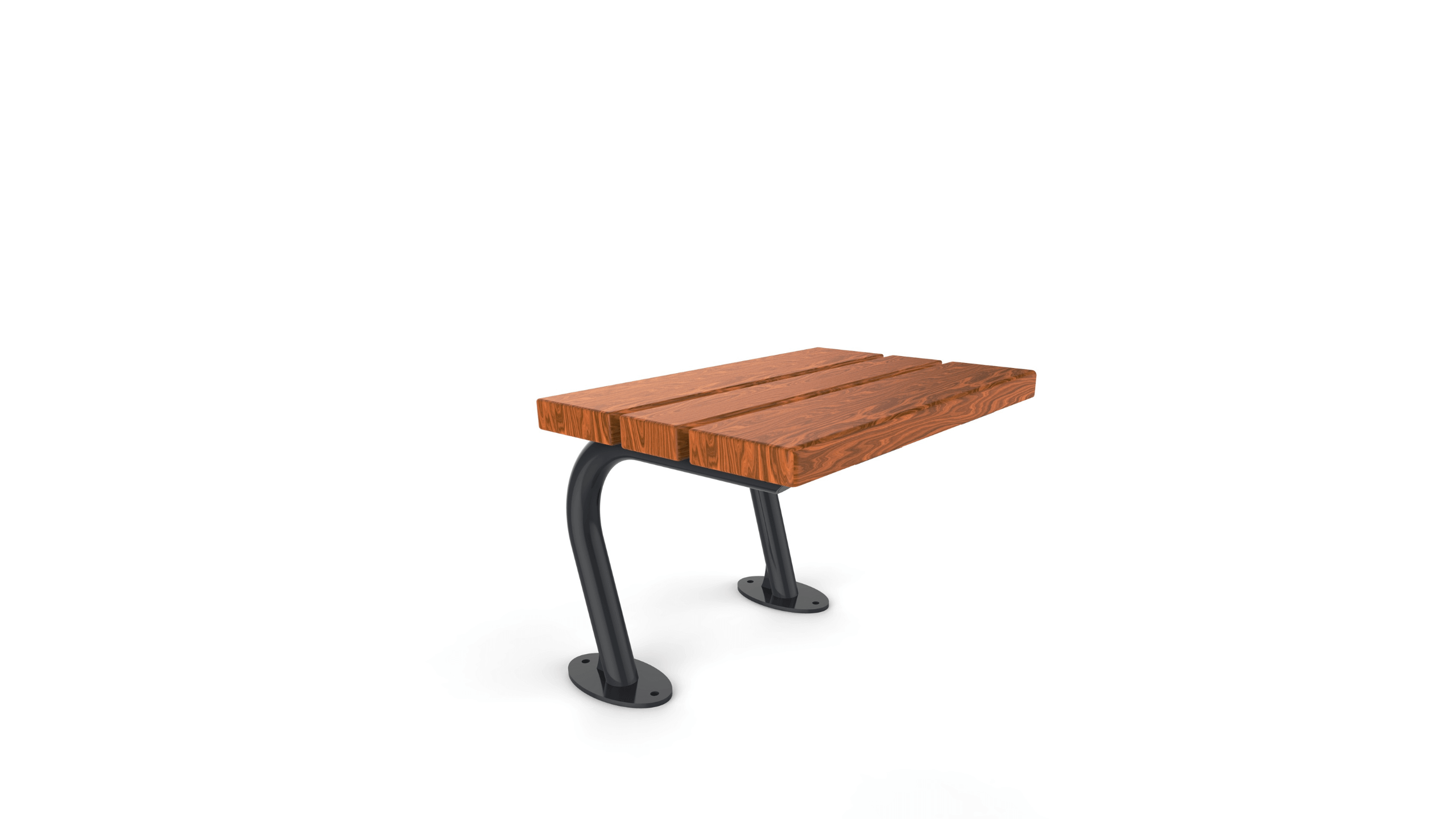

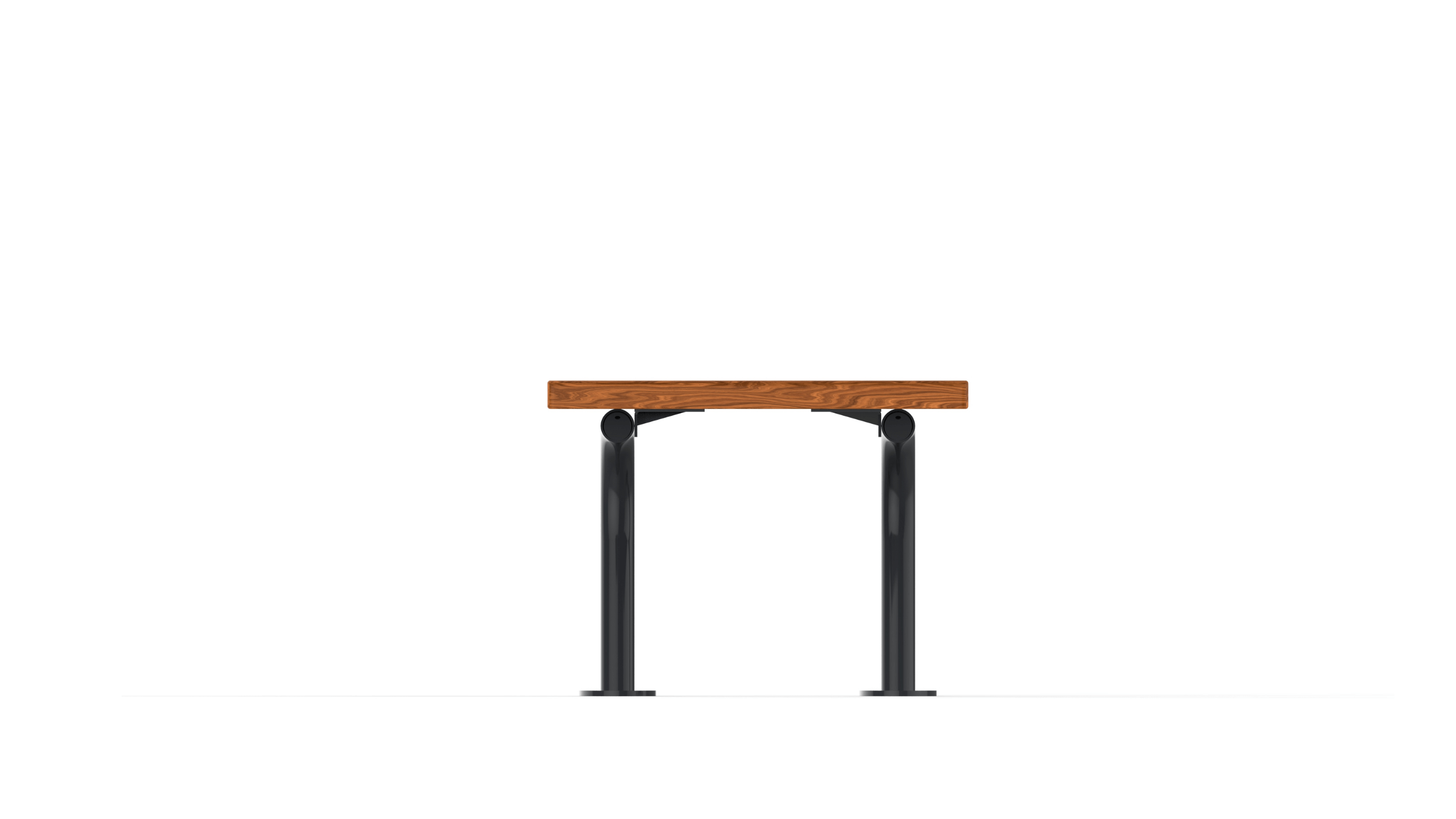

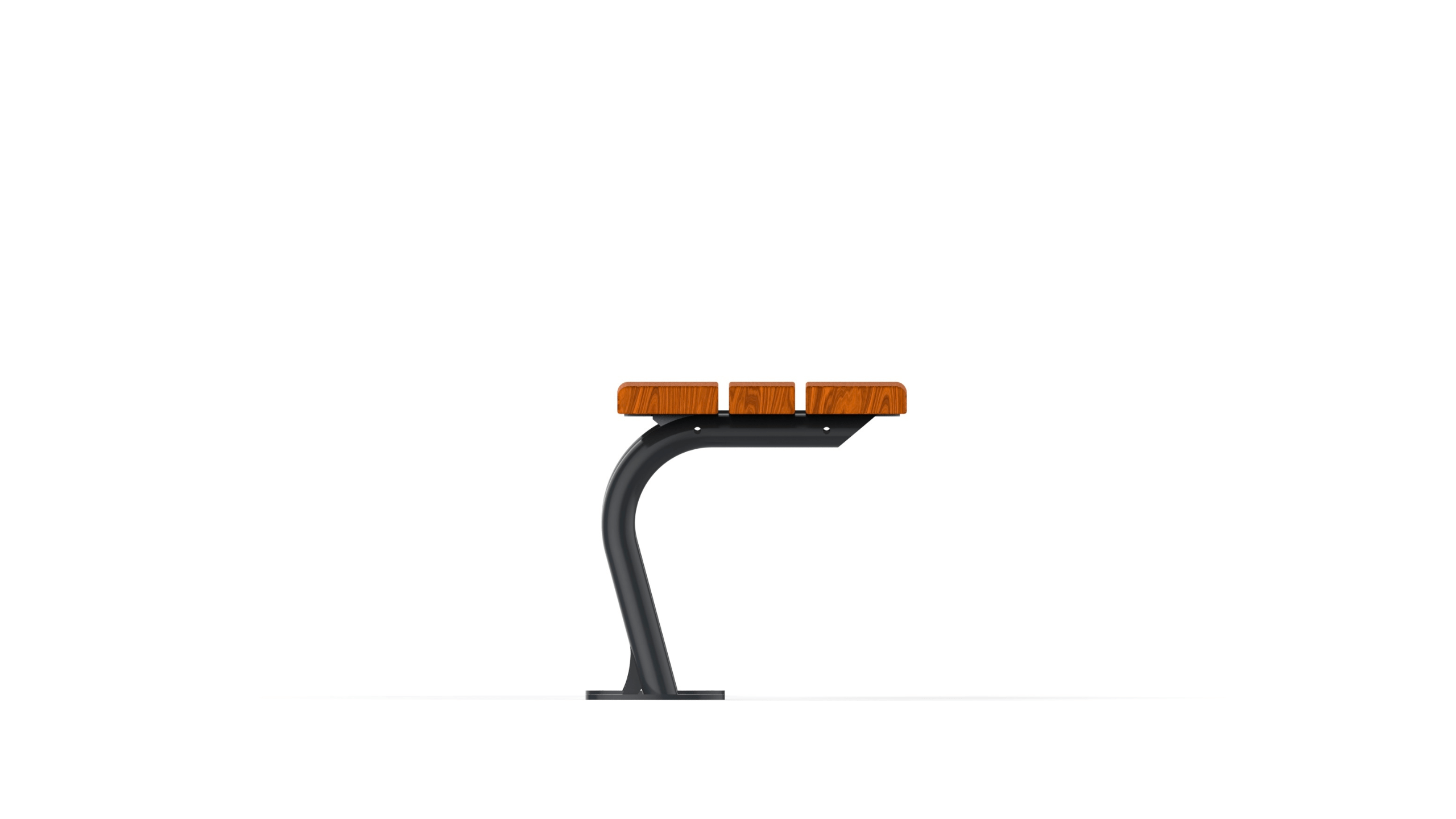

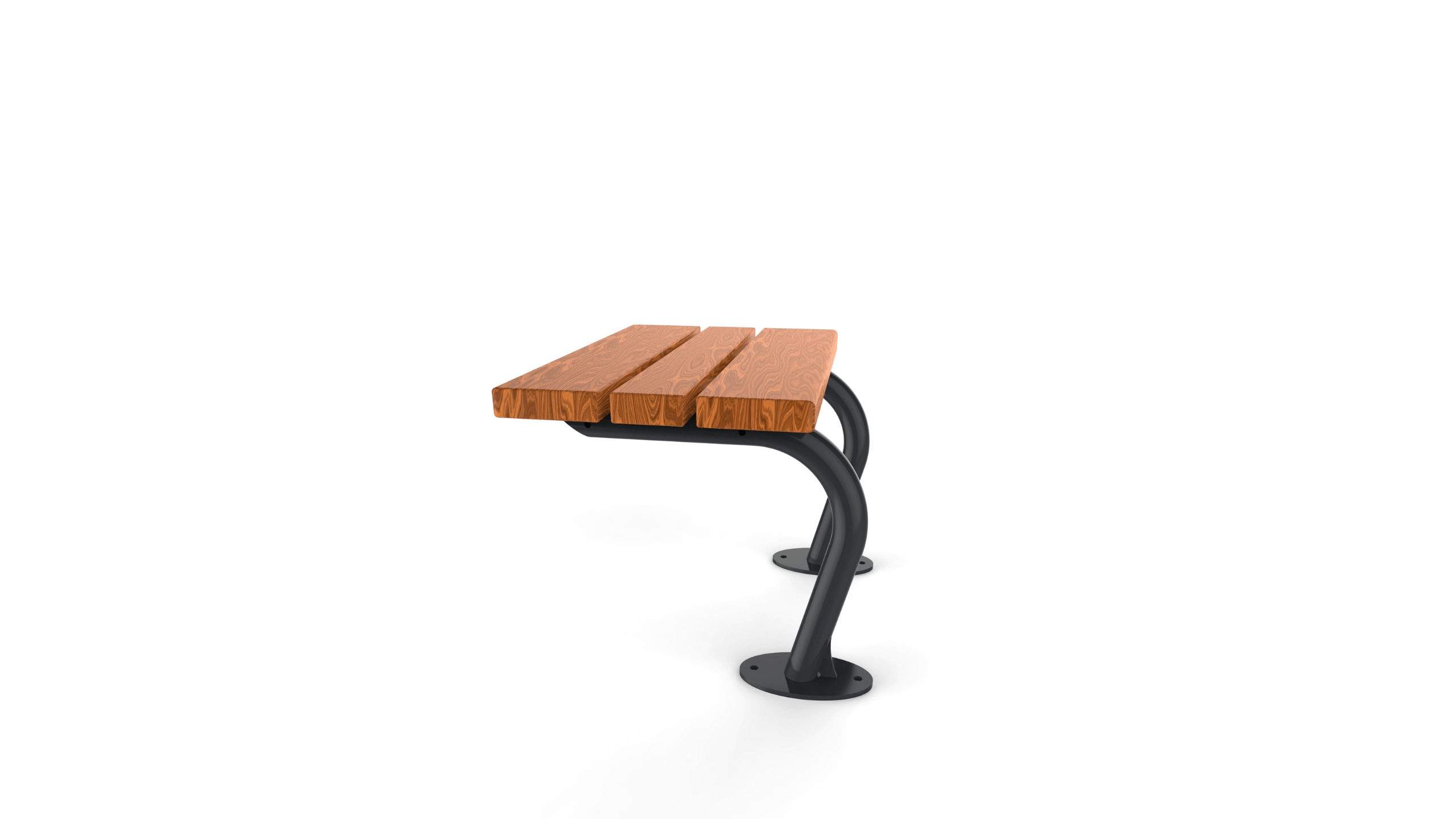

The basic outdoor bench 11208.BENCH.60, with its sleek and ascetic design, features reinforced legs that provide reliable performance in public activity areas, such as stadiums, sports grounds, and schoolyards. The combination of tropical hardwood seating and a frame made from stainless steel or galvanized carbon steel ensures durability and maintenance-free use for years to come.
Features:
- Boasts a sleek and sturdy design
- Fits for recreational and activity areas
- The frame is available in two options:
- Carbon steel treated with anti-corrosion protection and painted, ensuring long-lasting durability
- Stainless steel, suited for extensively used spaces
- Wood options for the seat:
- Coniferous species wood for a natural look
- Tropical wood for minor care
More about materials.
Color variations for the steel frame include 22 RAL tones, choosing from Contemporary, Nature, and Accents palettes, and 5-6 tones for wooden boards depending on the wood type.
We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.
SPECS

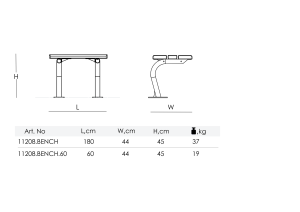

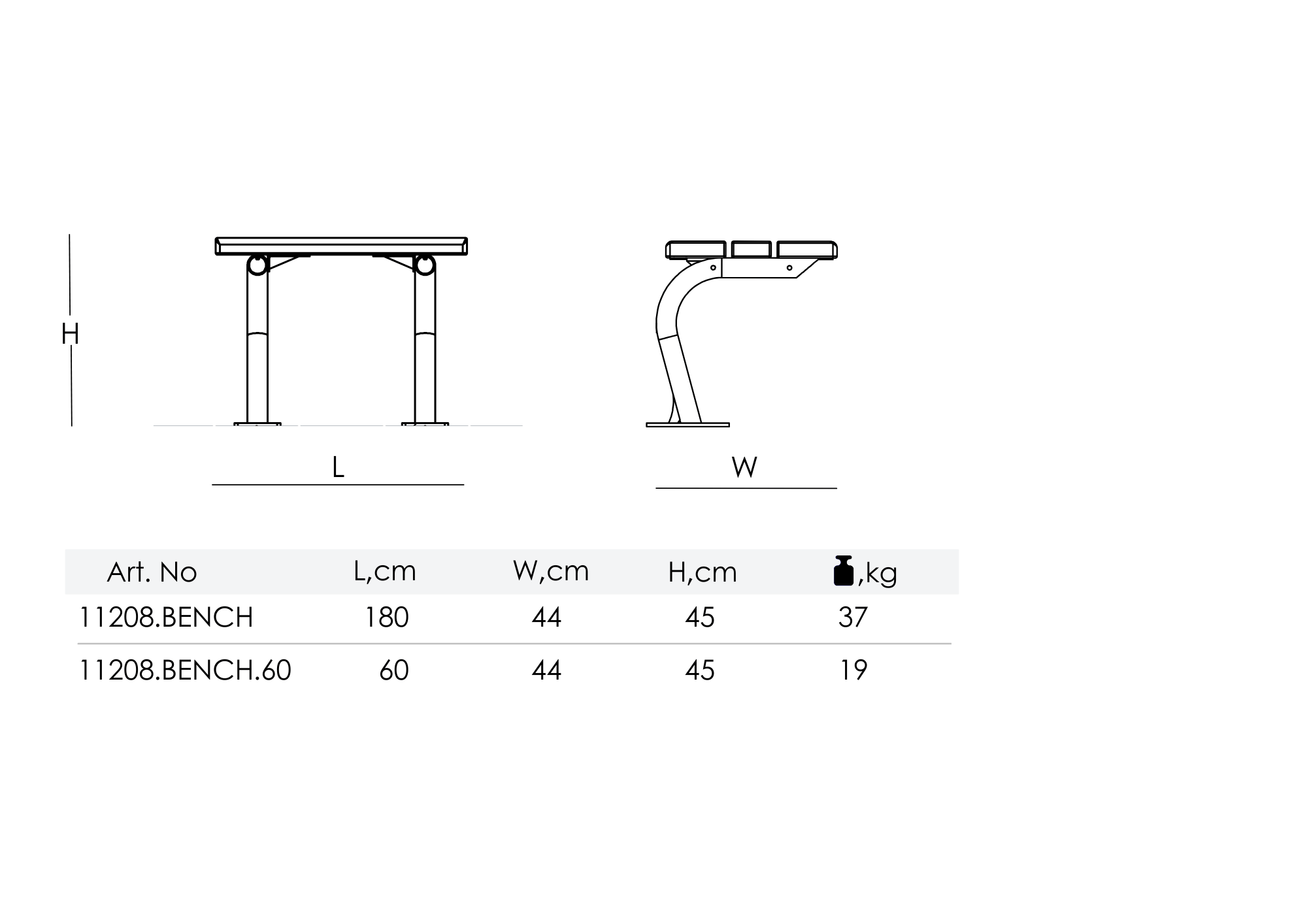

| DIMENSIONS, cm | 44(W) x 60(L) x 45 (H)
|
| WEIGHT, kg | 19 |
| MATERIAL | For frame: • Carbon steel or • Stainless steel For seat: • Pine tree or • Tropical wood more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Stainless steel: • Brushed finish or • Bead blasted (subject to availability) |
| COMPONENTS | Stainless steel A2 screws for wood planks |
| QTY ON PALLET | 5 units on Pallet 80×200 cm |
Installation
The bench 11208.BENCH.60 is manufactured with pre-drilled holes and supplied with screws, and it requires easy self-assembly.
Mounting method
The benche’s default mounting method is on-ground. Please refer to the Installation Instructions.
If sub-surface fastening is needed, we will make the appropriate modifications to the steel framework. Longer lead time and possible additional charges may apply.
Anchors
The set of the bench does not include anchors.
The contractor is responsible for choosing the proper anchoring method and materials depending on the mounting surface, loads, and external conditions.
ANCHOR.200 ensures secure fastening and minor visible elements (countersunk or ‘mushroom’ type bolt). For the bench anchoring 4 sets of ANCHOR.200 can be ordered here.
The bench includes:
- Steel structure (bench legs) with holes for anchoring into the ground and for connecting to a wooden seat – 2 pcs.
- Wooden seat screwed onto the steel frame – 1 pcs.
- Bolts and nuts for the assembly of bench legs to seat.
- QR code labels linking to the Installation and Maintenance Instructions.
- Packing list.
Maintenance
Wood is an organic matter and as exposed to the external environment is constantly changing. To minimize the influence of sunlight, variable air humidity and temperatures proper maintenance and renovation should be carried out. Maintenance manual – Street-furniture-maintenance-manual
Wooden Surface Restoration Guide – Wooden-surface-maintanence-guide
