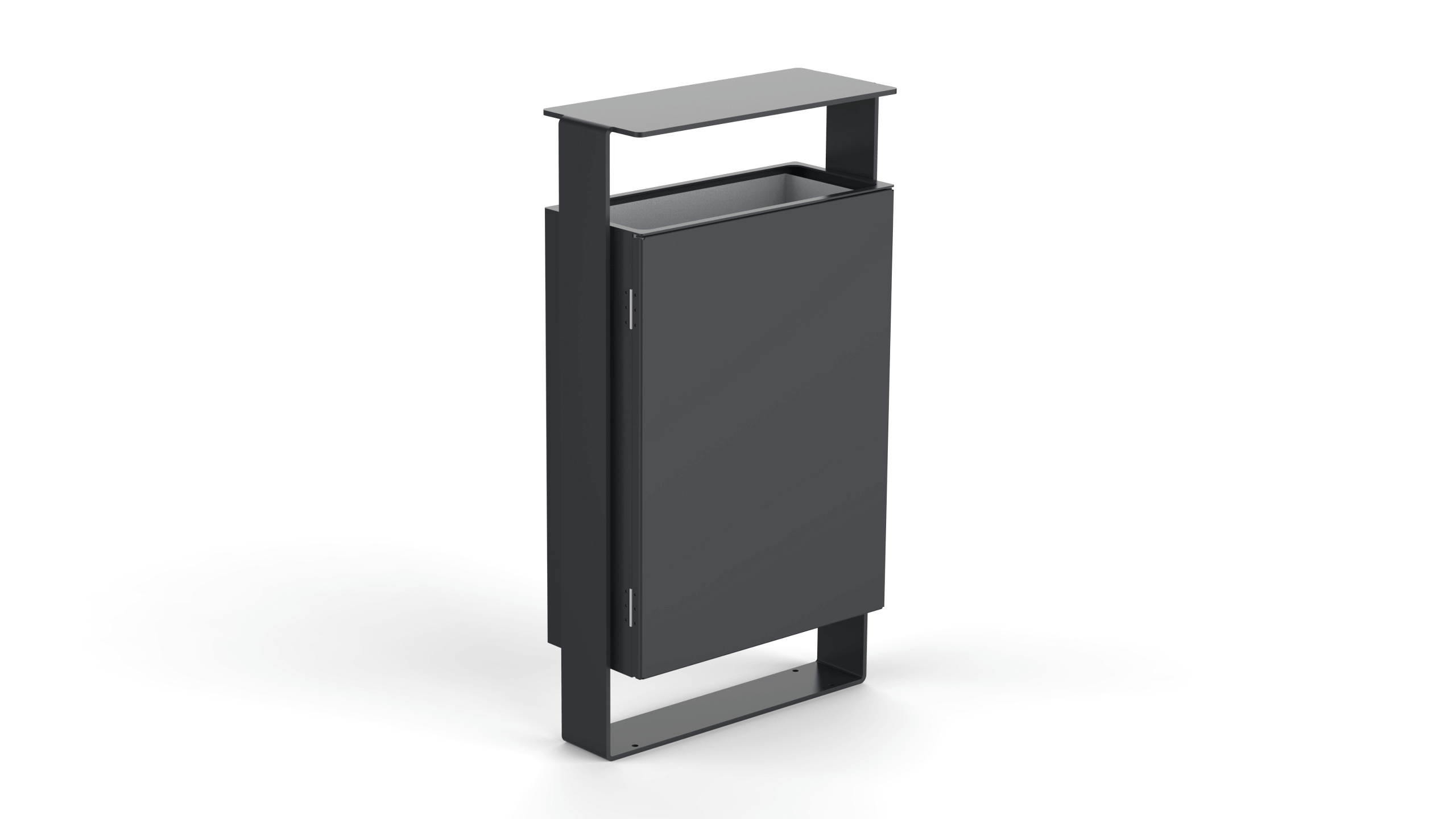

Free-standing Trash Bin 12213
€480.00 excl. VAT
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Volume | 50 L, 70 L |
| Ash tray | No, Yes |
| Max quantity on pallet | 12 |
| Pallet size | 120×80 |
| Material & finish | Carbon steel galvanized & painted, Stainless steel |
| Anti-graffiti coating | No, Yes |
DESCRIPTION

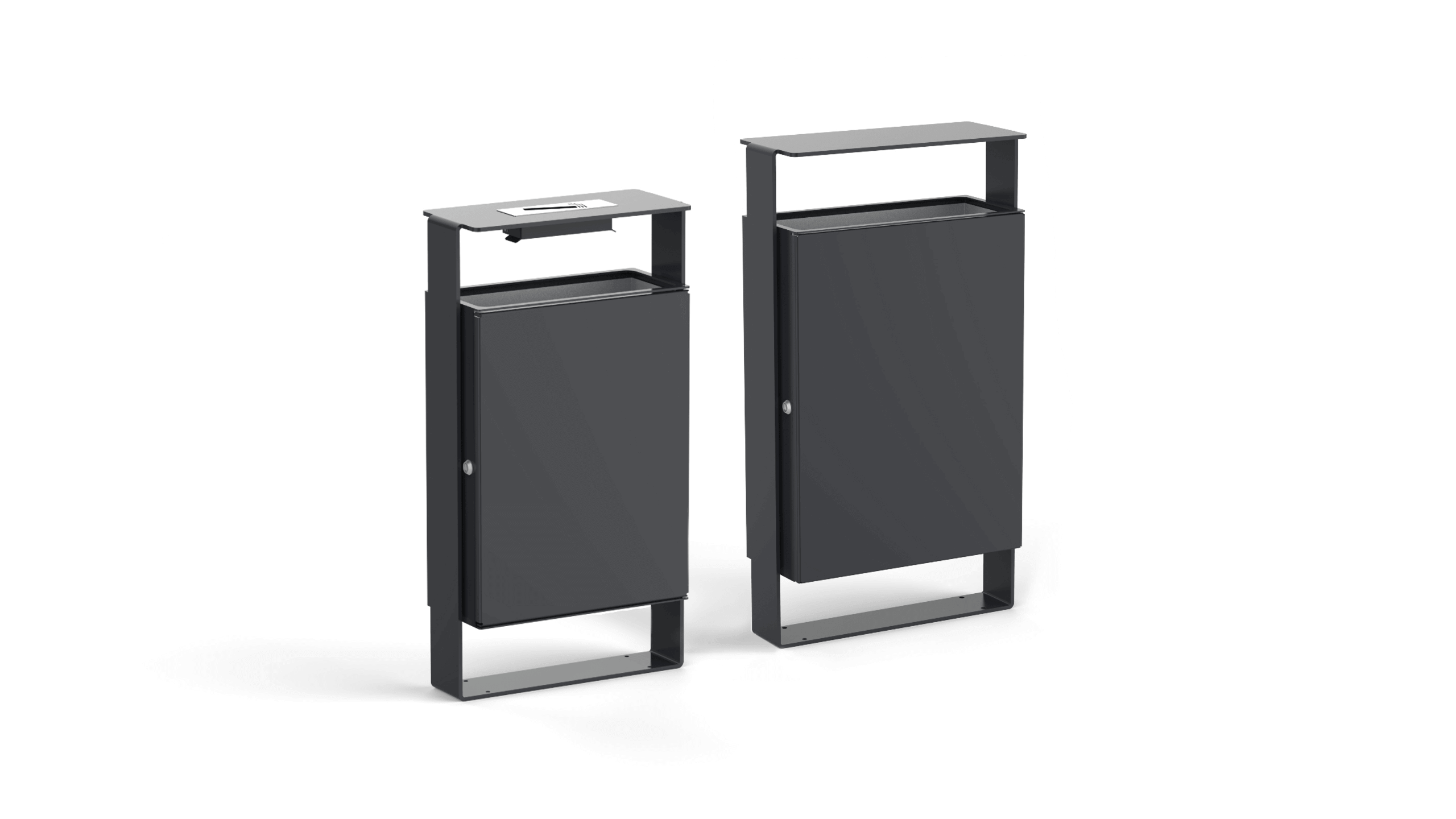

Urban Queen : Lean & Streamlined

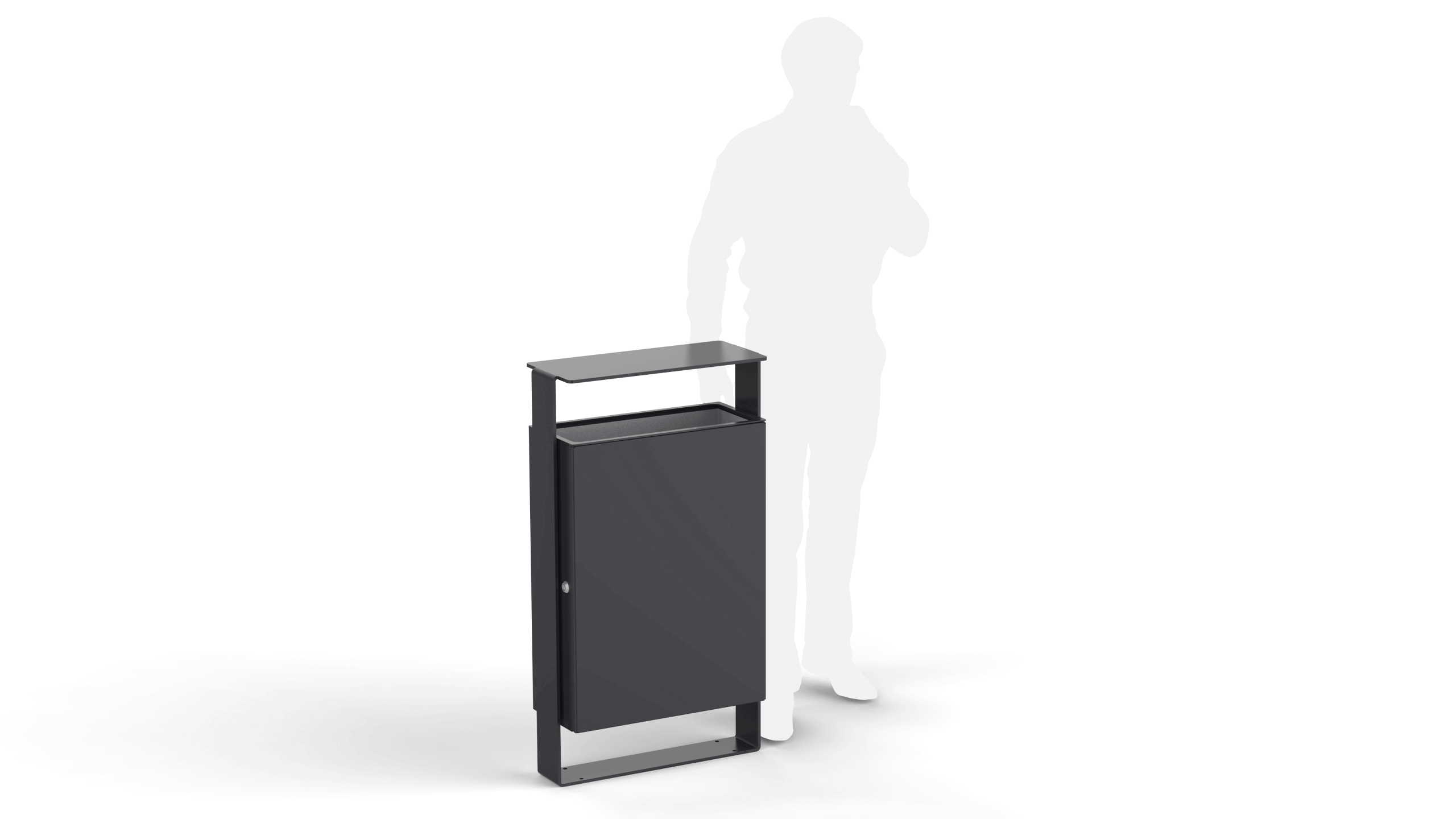

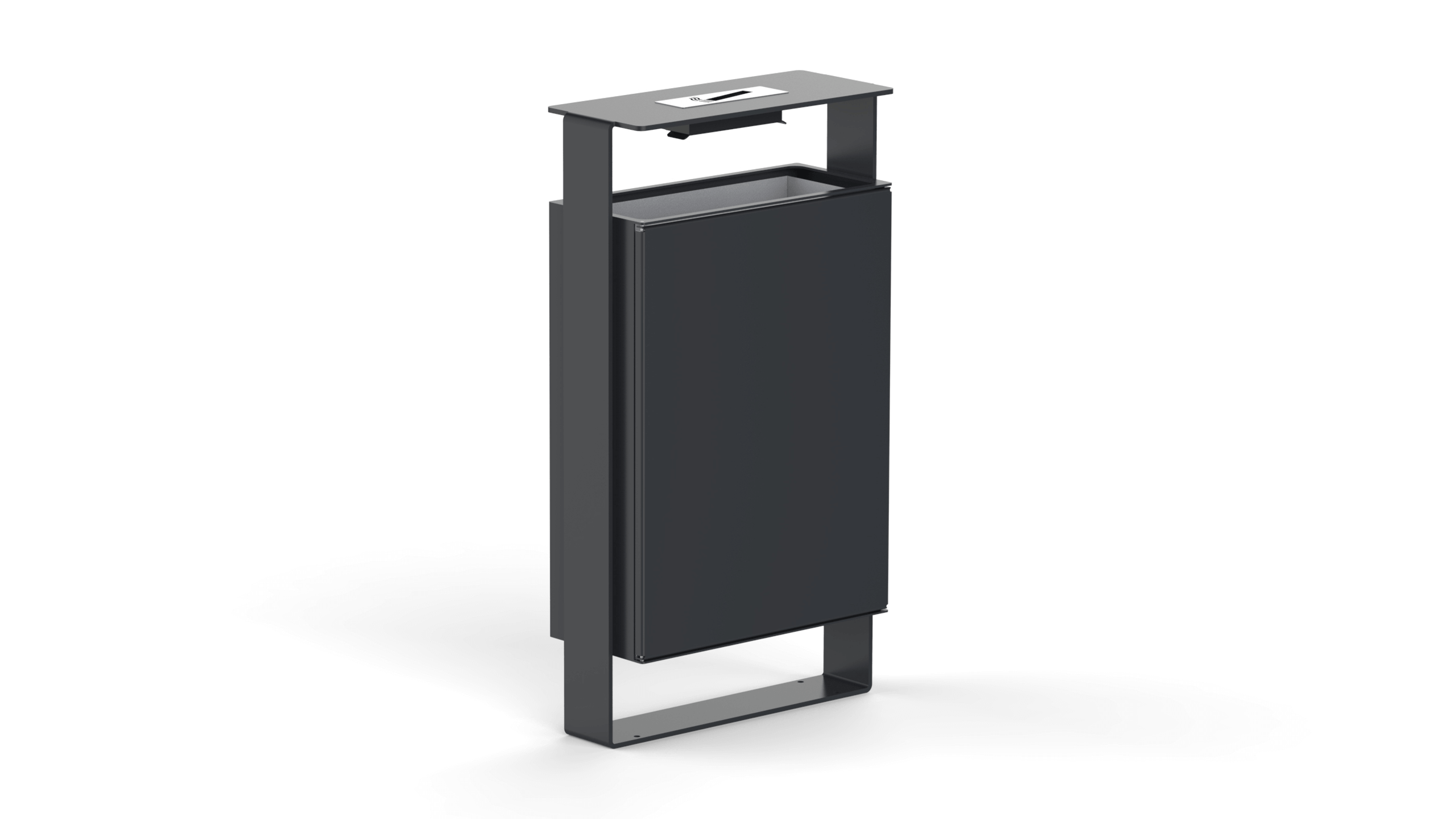

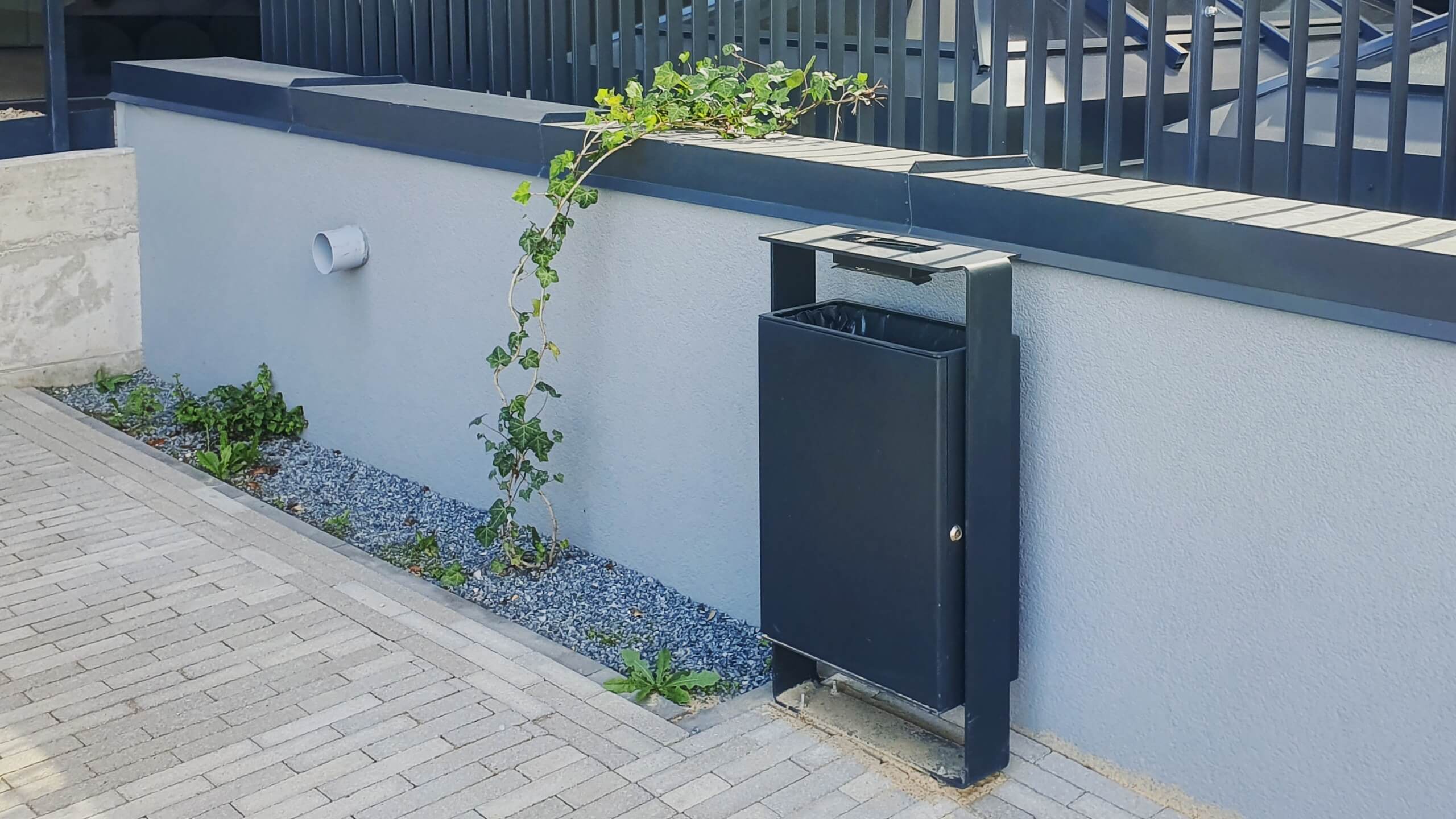

Trash Bin 12213 has a contemporary look that blends well in urban landscapes. Thanks to its streamlined form, the waste bin easily integrates into busy urban districts, allowing more space for pedestrian traffic. Also available wall-mounted trash bin.
Trash bin 12213 features:
- Minimalist style and streamlined design.
- Volume 50 or 70 litres.
- Sturdy 2,5 mm thick steel sheet body.
- Lockable doors to access a trash container.
- Galvanised trash container.
- Corrosion resistance 15 years in city environments (corrosion class C4).
Options:

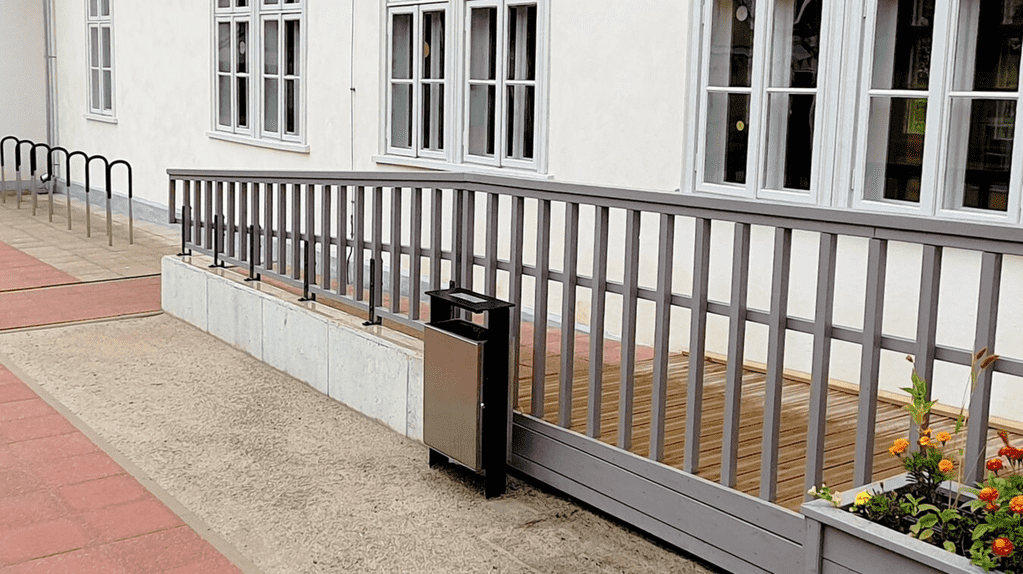

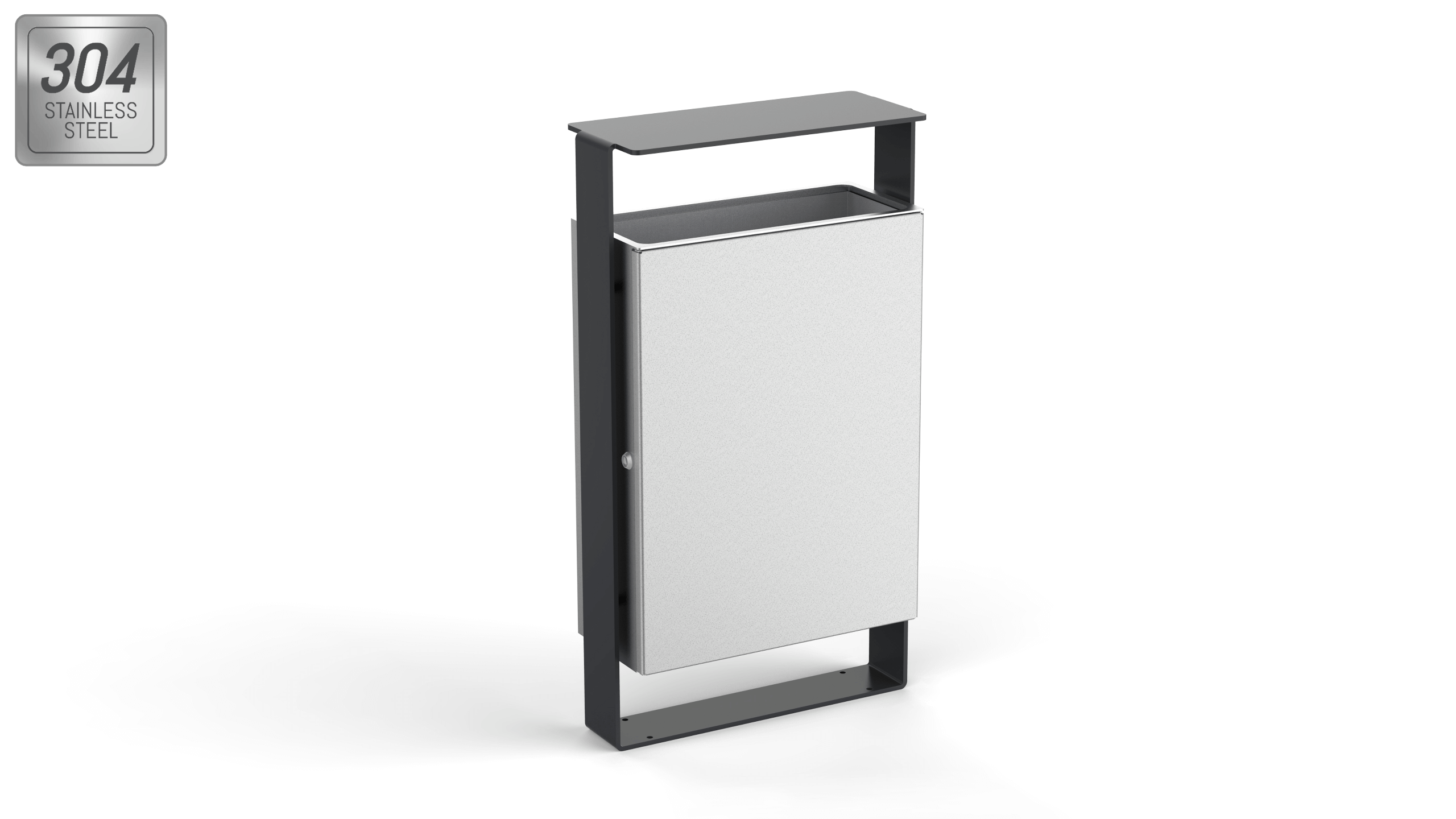

- Stainless steel body with a semi-matt-shiny blasted finish.

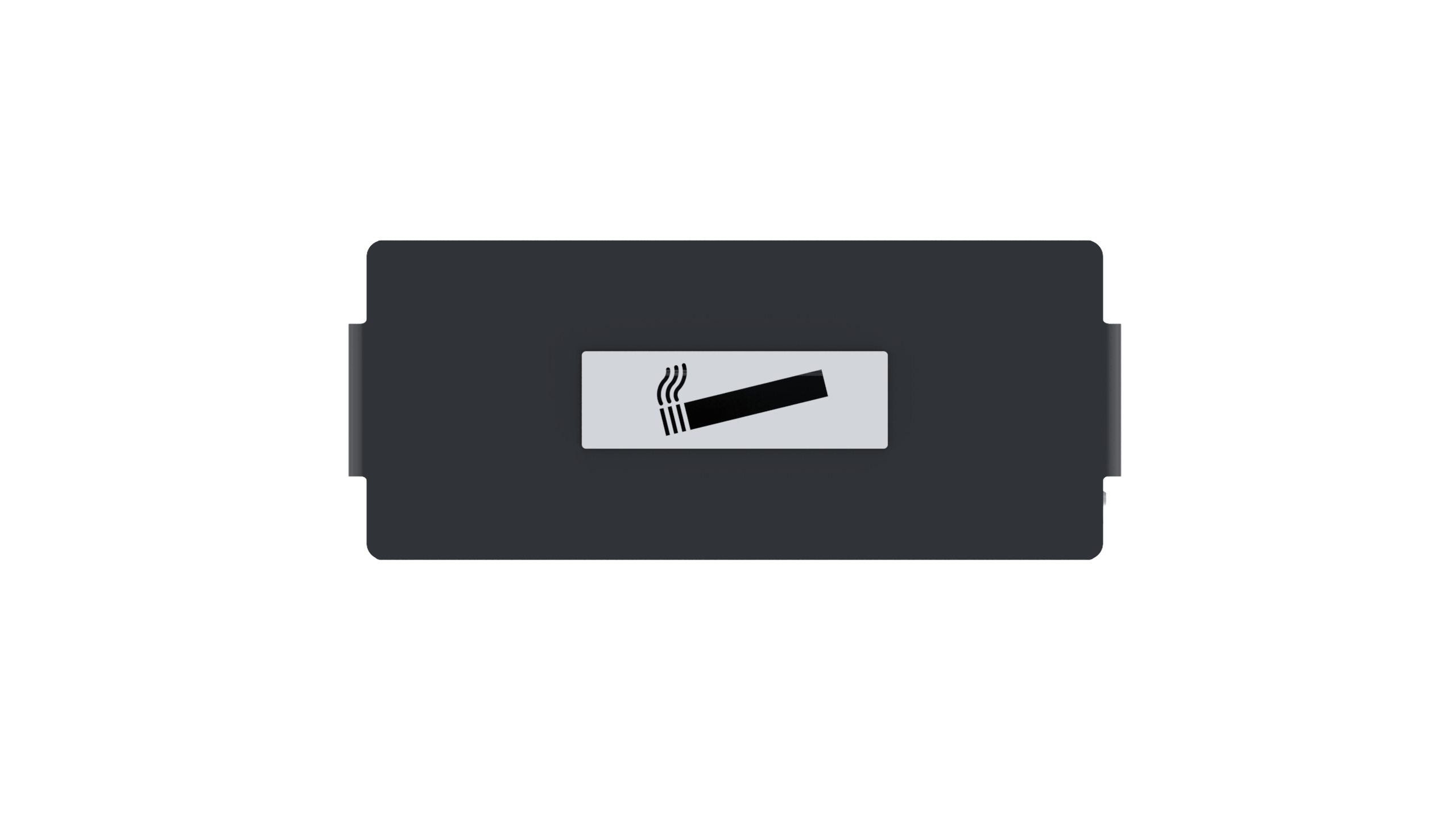

- Ashtray with a polished stainless steel plate.
- Anti-graffiti coating.
We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.
Specs
| DIMENSIONS, cm | •48(W) x 21(L) x 90 (H) – For Art.No 12213.50 •55(W) x 23(L) x 100 (H) – For Art.No 12213.70  |
| WEIGHT, kg | •39 – For Art.No 12213.50 •48 – For Art.No 12213.70 |
| VOLUME, L | 50 – 12213.H1 70 – 12213.H2 |
| MATERIAL | For body: • Carbon steel or • Stainless steel For container and plastic bag holder: • Stainless steel For ash plate: • Stainless steel, polished more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Stainless steel: • Brushed finish or • Bead blasted (subject to availability) |
| COMPONENTS | Stainless steel A2 screws, triangular lock with key, plastic bag holder |
| QTY ON PALLET | •6 units on Pallet 80×120 cm – For Art.No 12213.50 •6 units on Pallet 80×120 cm – For Art.No 12213.70 |
Installation
The free-standing trash bin 12213 is ready for installation; it has mounting holes for anchoring in the ground.
Mounting method
The trash bin’s default mounting method is on-ground. Please refer to the Installation Instructions.
Anchors
The set of the trash bin does not include anchors.
Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials. ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.
The package includes:
- A trash bin, assembled and ready to install – 1 pc.
- A key for the doors – 1 pc.
- QR code labels linking to the Installation and Maintenance Instructions.
- A Packing list.
Maintenance
Downloads

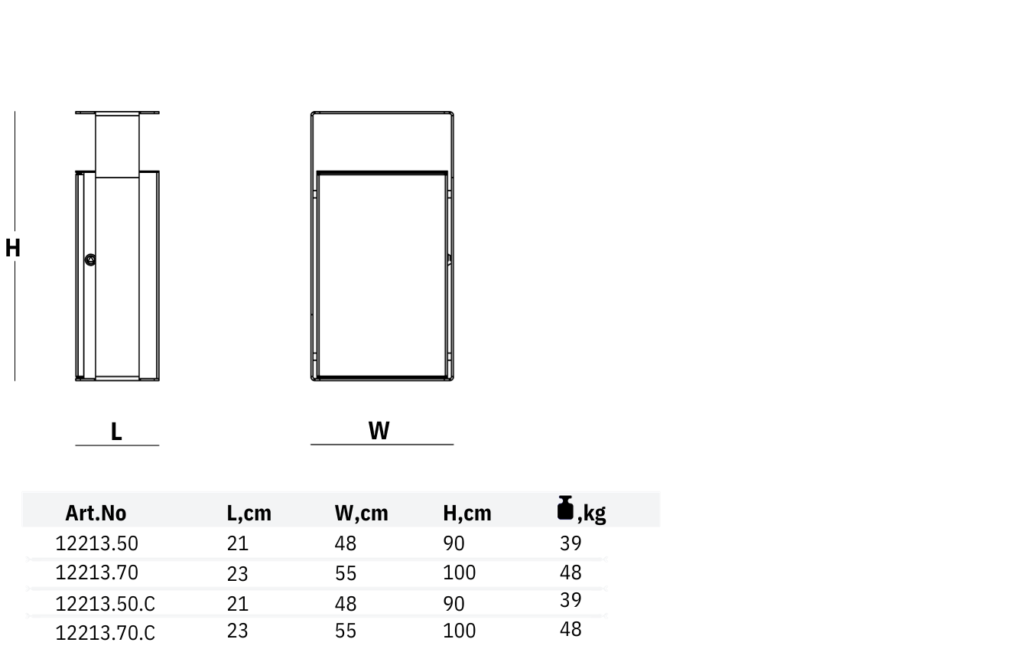

Dimensions
Installation Scheme
Maintenance Manual
CAD Files:
