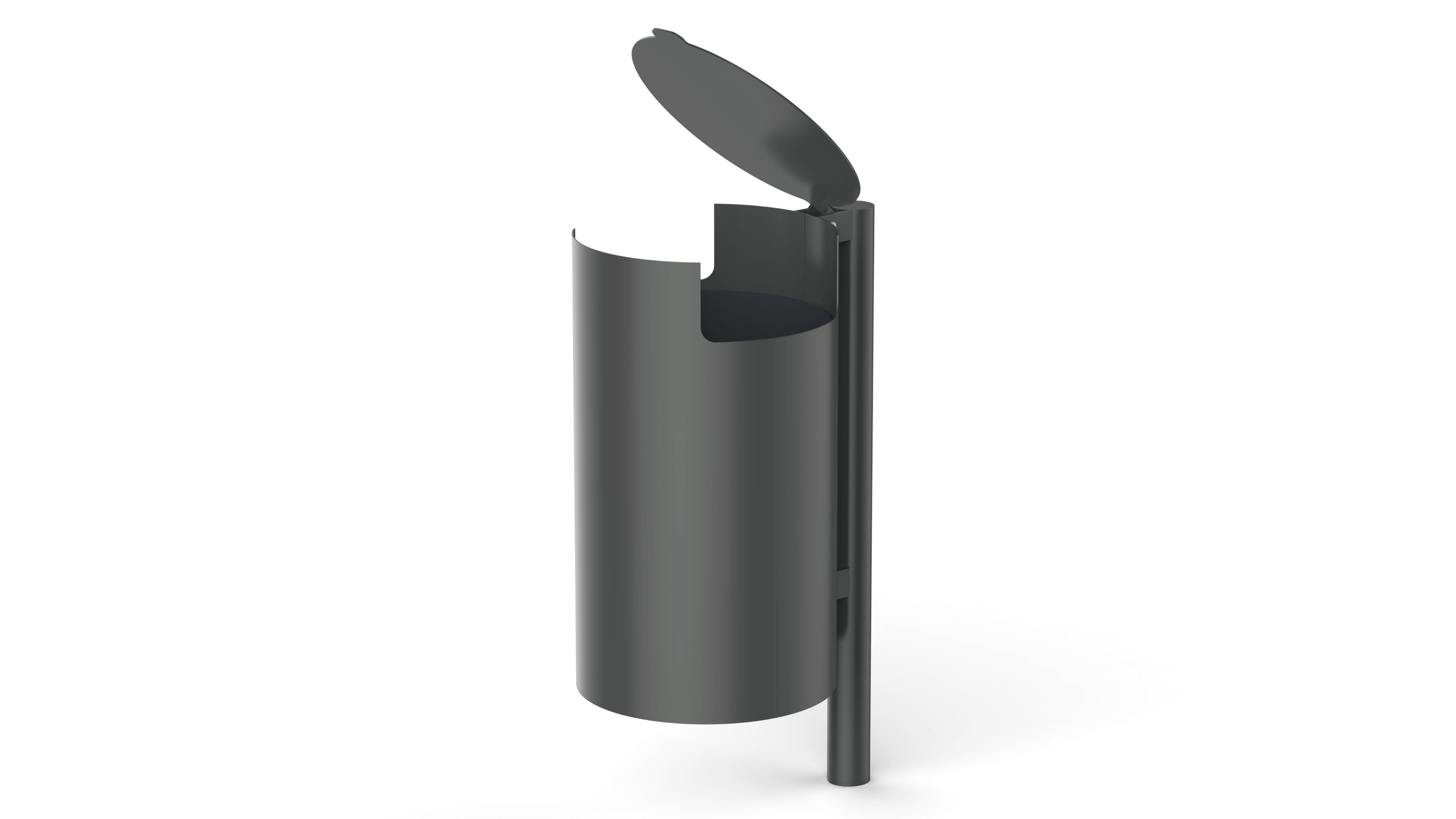

Trash Bin 12212

300.00 excl. VAT




Additional information

Weight26 kg
Dimensions35 × 46 × 82 cm
Volume

40 L, 65 L

Material & finish

Carbon steel galvanized & painted, Stainless steel

Plastic bag holder

No, Yes

Perforated design

No, Yes

Anti-graffiti coating

No, Yes

DESCRIPTION

Simplicity in Design and Make

Trash Bin 12212 features a simple and robust design, due to which it falls into the budget-friendly category. Nevertheless, the waste bin offers an option with a perforated pattern, adding a stylish and neat appearance.

Features:

  • Simple and neat design.

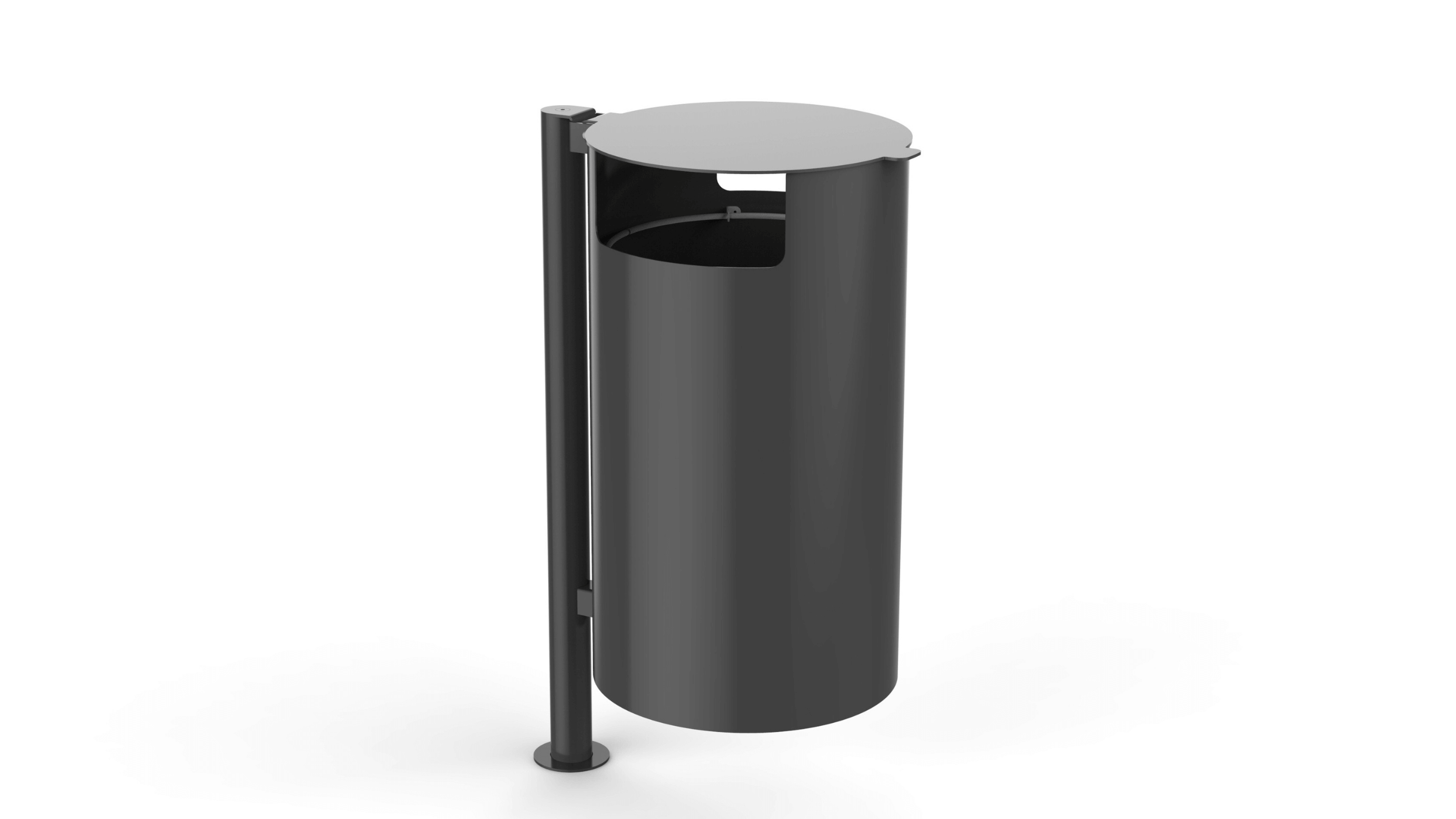

  • Volume: 40 l or 65 l
  • Sturdy 2 mm thick steel sheet body.

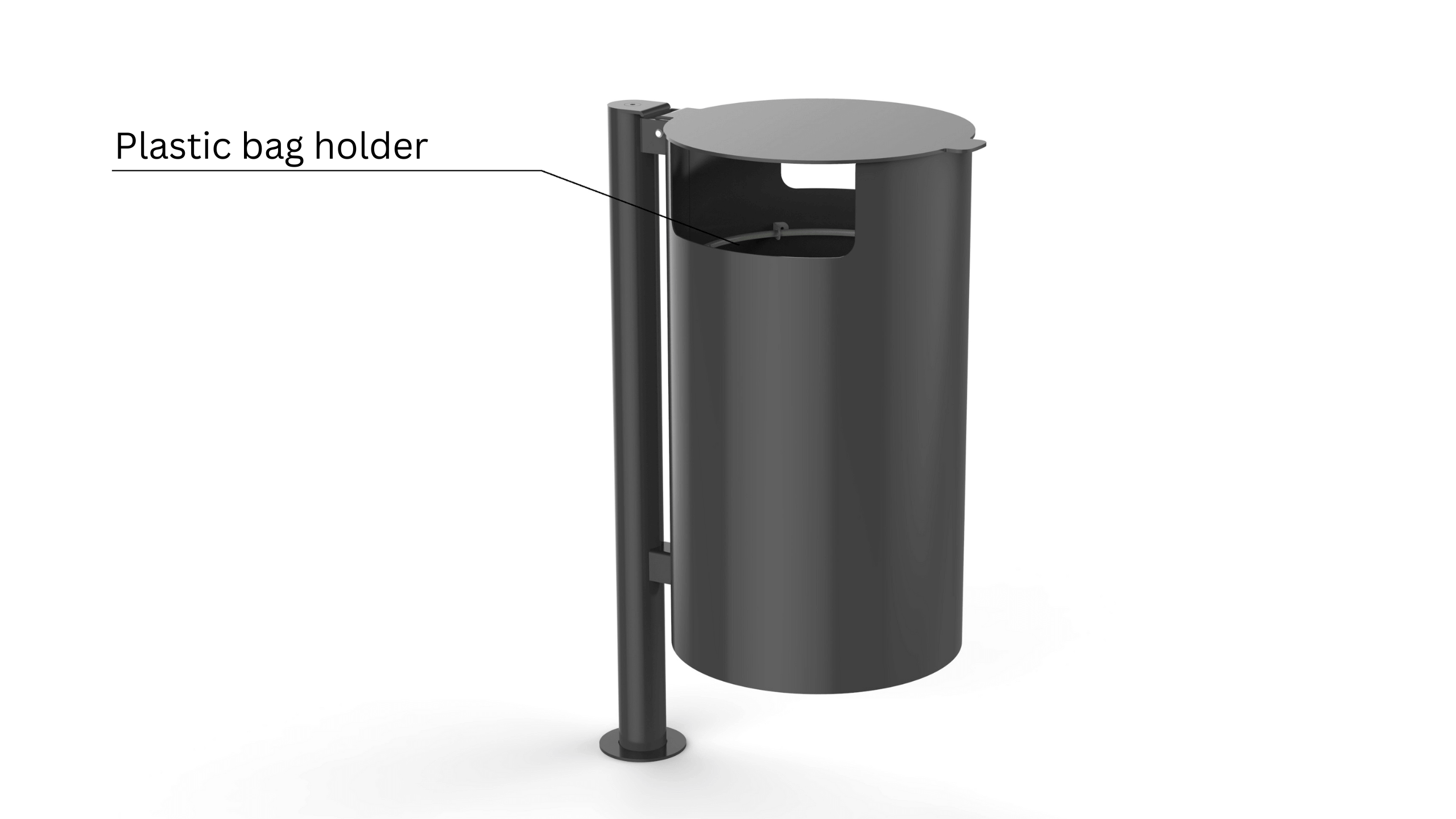

  • Integrated plastic bag holder.
  • Corrosion resistance 15 years in city environments (corrosion class C4).

Options:

  • Stainless steel body with a semi-matt-shiny blasted finish.

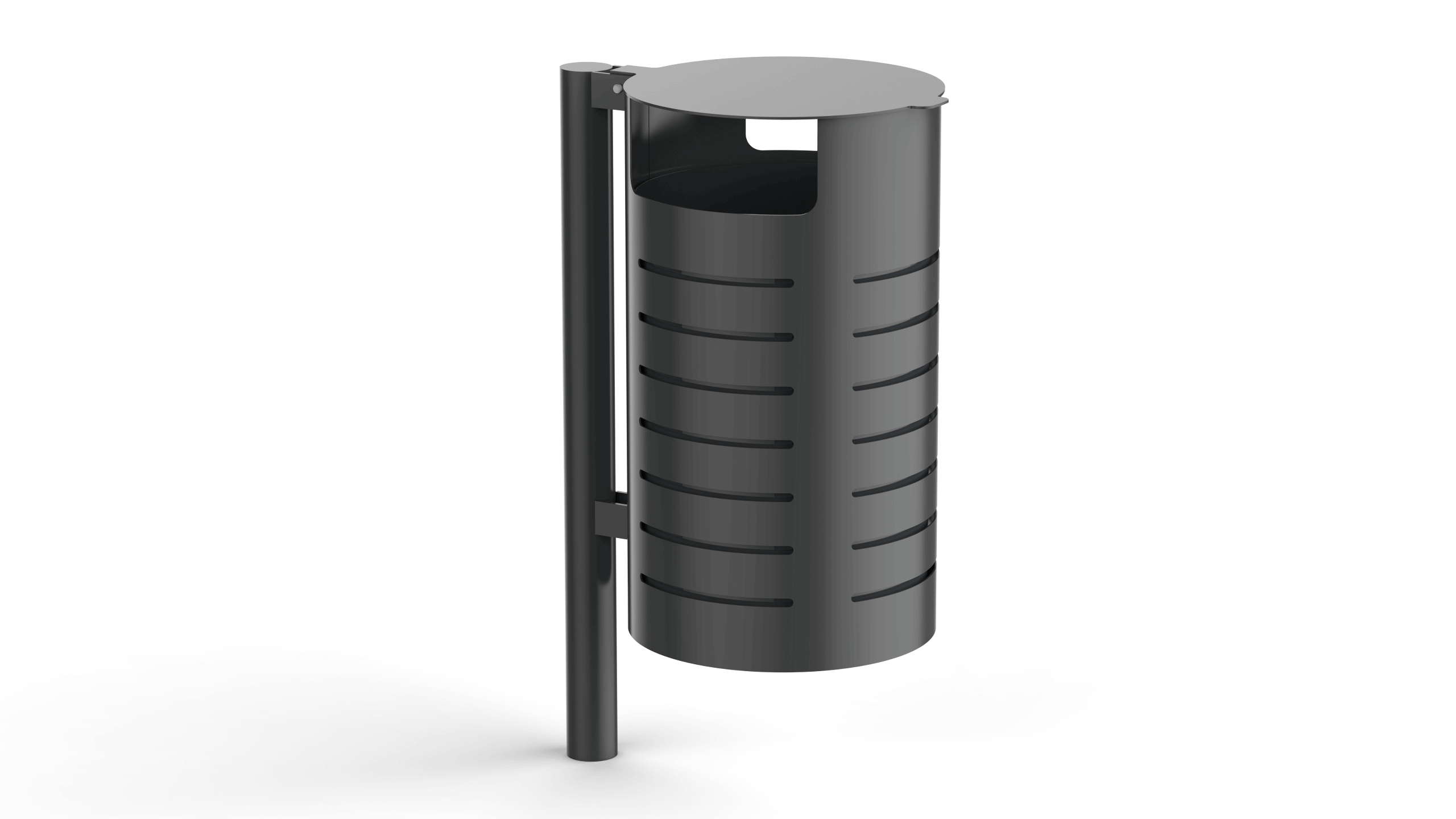

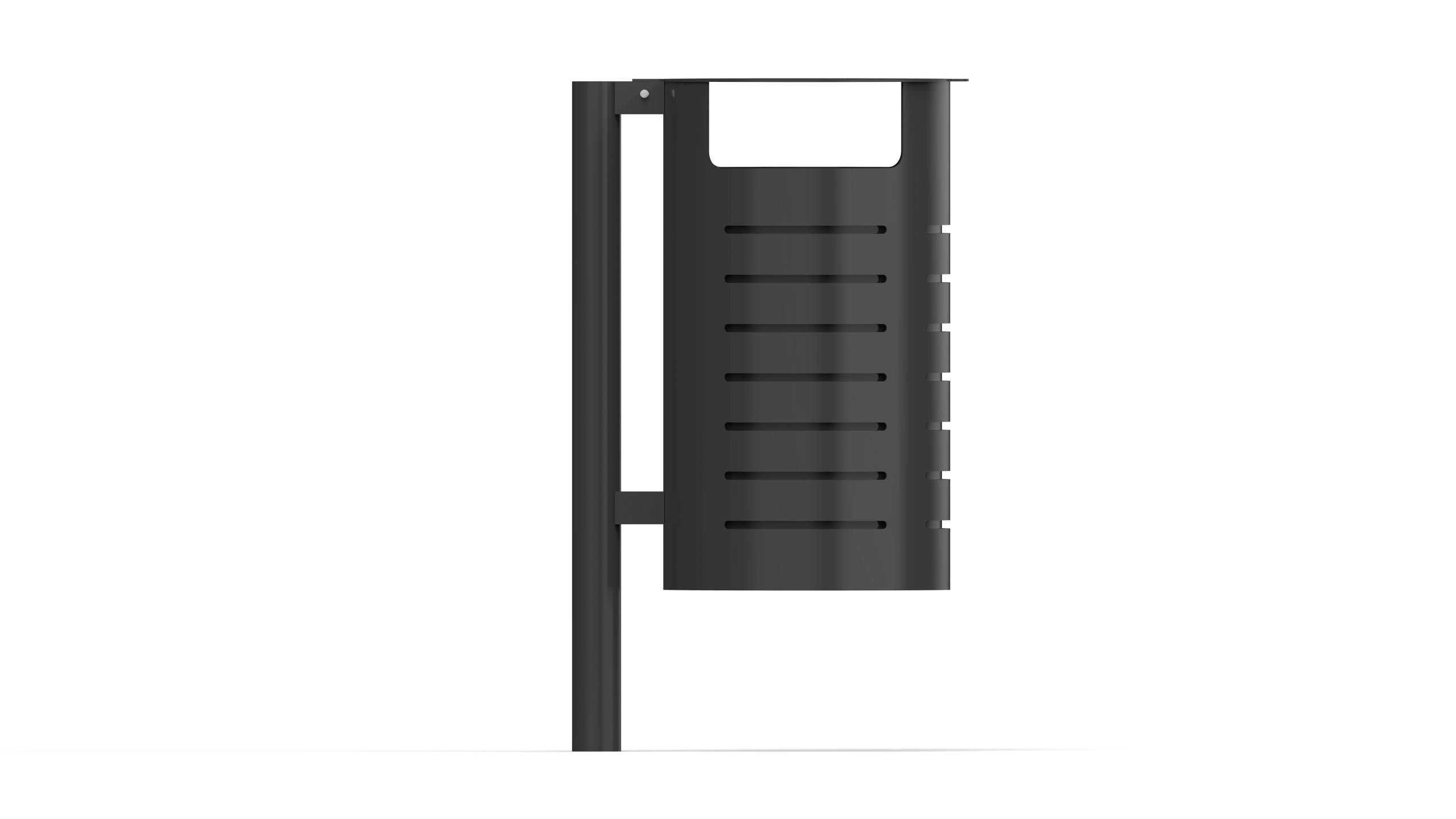

  • Perforated design.
  • Anti-graffiti coating.

Specs

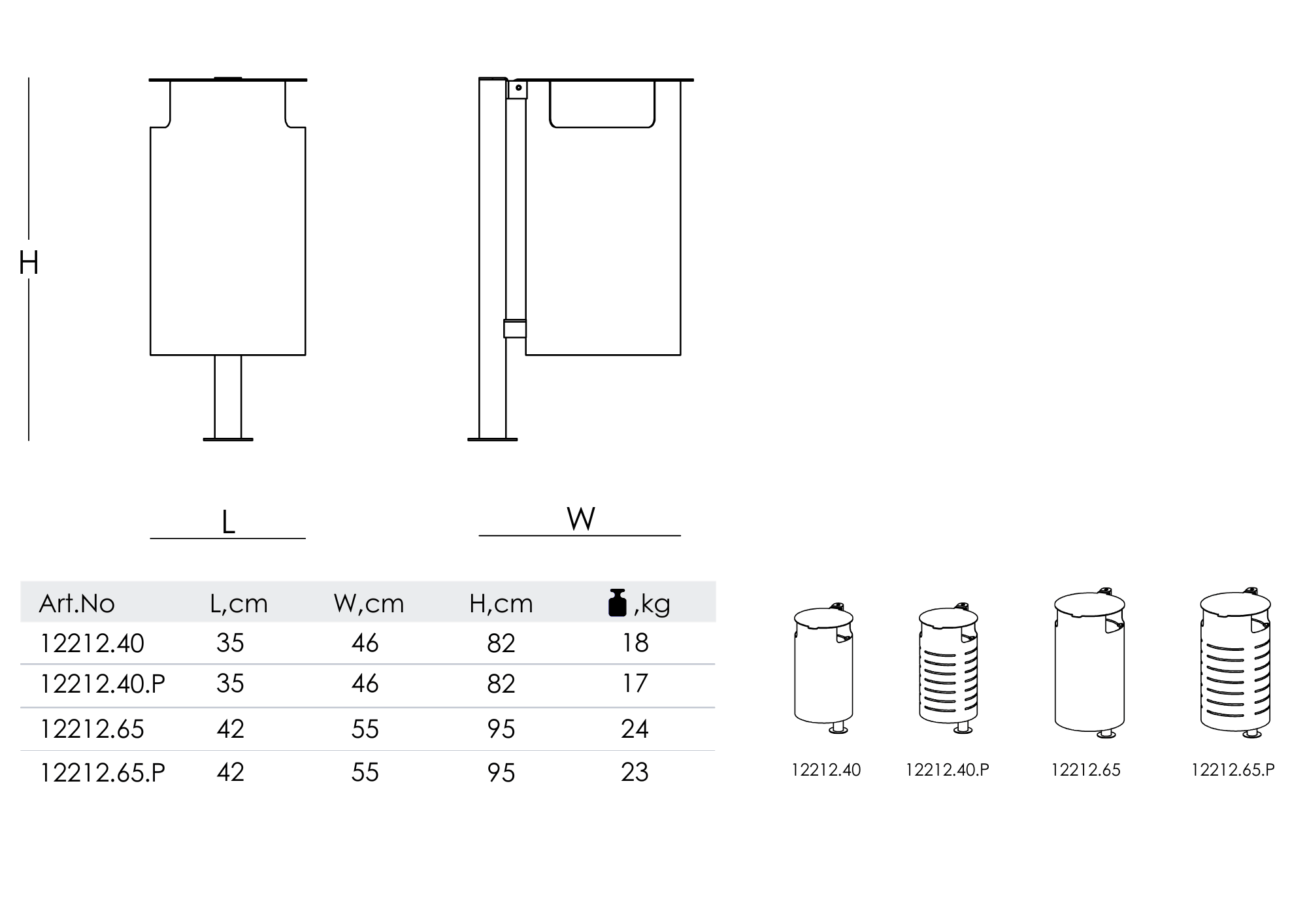

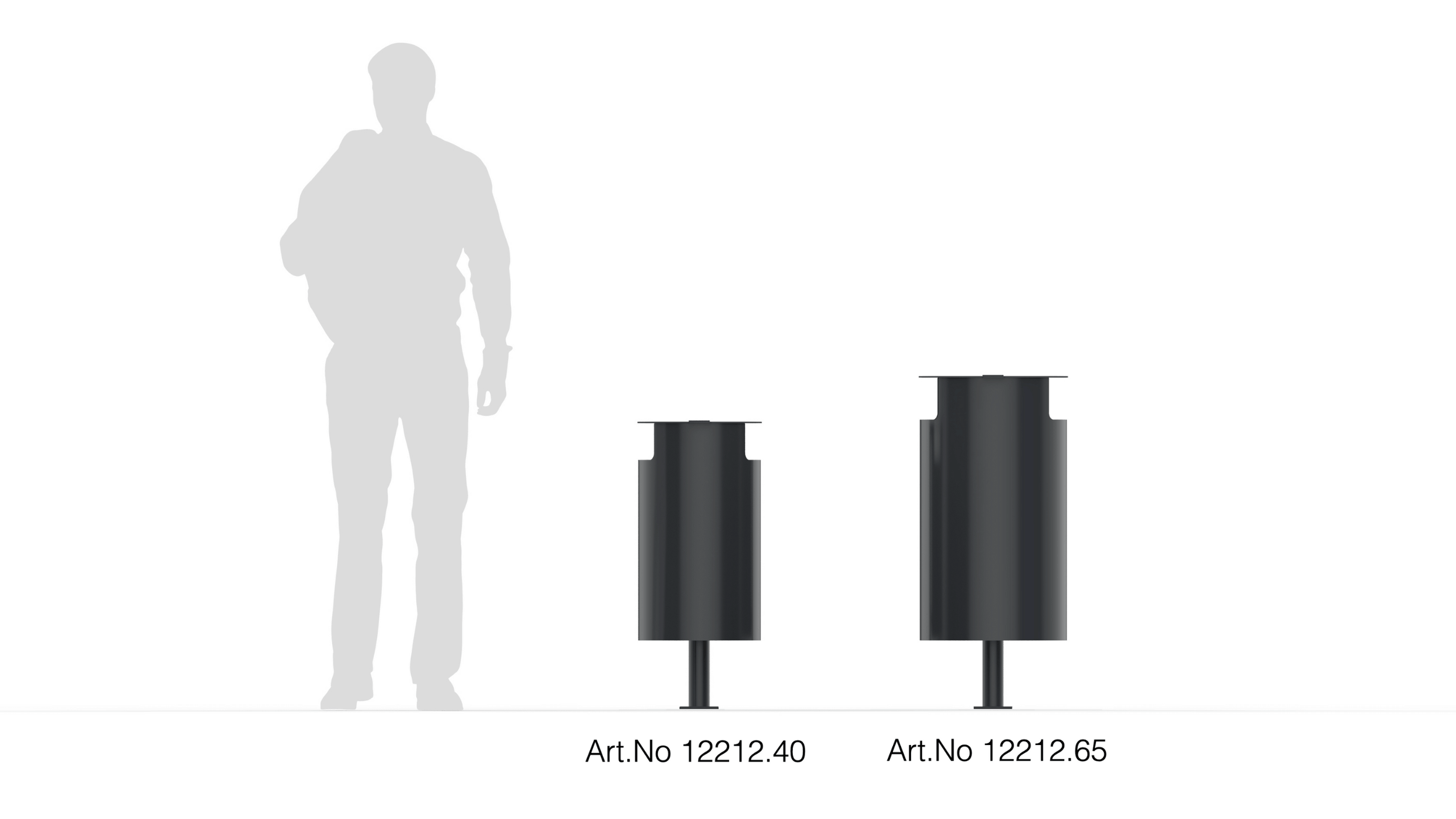

DIMENSIONS, cm• 46(W) x 35(L) x 82 (H) For Art.No. 12212.40; Art.No. 12212.40.P
• 55(W) x 42(L) x 95 (H) For Art.No. 12212.65; Art.No. 12212.65.P
WEIGHT, kg•18 – For Art.No. 12212.40
•17 – For Art.No. 12212.40.P
•24 – For Art.No. 12212.65
•23 – For Art.No. 12212.65.P
VOLUME, L•40 – For Art.No. 12212.40
•65 – For Art.No. 12212.65
MATERIALFor body:
• Carbon steel or
• Stainless steel
more about Materials
FINISHFor Carbon steel:
• Hot dip galvanized or
• Hot dip galvanized and painted
For Stainless steel:
• Brushed finish or
• Bead blasted (subject to availability)
COMPONENTSStainless steel A2 screws, plastic bag holder
QTY ON PALLET6 units on Pallet 80×120 cm

Installation

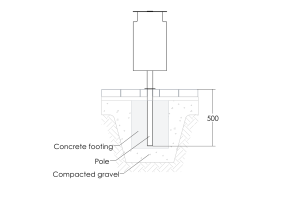

Installation Guidelines for the Trash Bin 12212

  • Dig or drill a hole based on the surface and soil density.
  • Fill the excavated hole with a layer of compacted gravel.
  • Place the pole 50 cm below the surface level and adjust the product to the desired position.
  • Fill the hole with concrete.

Maintenance

Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:

  • Materials and finishes used for the Product
  • Influence of environmental conditions on urban furniture
  • Care and maintenance
  • The expected lifecycle

Read more

Downloads

Dimensions
Installation scheme
Maintenance manual
