Trash Bin 12209
€360.00 excl. VAT
Additional information
| Weight | 39 kg |
|---|---|
| Dimensions | 57 × 28 × 85 cm |
| Plastic bag holder | No, Yes |
| Material & finish | Carbon steel galvanized & painted |
| Anti-graffiti coating | No, Yes |
DESCRIPTION
Stylish & Sleek
Trash Bin 12209 boasts a sleek, contemporary design that seamlessly integrates into urban environments. While the waste bin appears simple, it features lockable doors for convenient access during garbage disposal. This is achieved by tilting the doors down to extract the plastic bag or garbage container.
Trash bin 12209 features:
- Contemporary design.
- Volume 65 litres.
- Sturdy 2,5 mm thick steel sheet body.
- Lockable doors to access a trash container.
- Galvanised garbage container
- Corrosion resistance 15 years in city environments (corrosion class C4).
Options:
- Stainless steel body with a semi-matt-shiny finish. Doors remain from carbon steel and painted.
- Plastic bag holder. instead of a garbage container.
- Anti-graffiti coating.
We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.
Specs
| DIMENSIONS, cm | 28(W) x 57(L) x 85 (H)
|
| WEIGHT, kg | 39 |
| VOLUME, L | 65 |
| MATERIAL | For body: • Carbon steel • Stainless steel For container: • Stainless steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Stainless steel: • Brushed finish or • Bead blasted (subject to availability) |
| COMPONENTS | Stainless steel A2 screws, triangular lock with key |
| QTY ON PALLET | 6 units on Pallet 80×120 cm |
Installation
The trash bin 12209 is ready for installation; it has mounting holes for anchoring in the ground.
Mounting method
The trash bin’s default mounting method is on-ground. Please refer to the Installation Instructions.
Anchors
The set of the trash bin does not include anchors.
Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials. ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.
The package includes:
- A trash bin, assembled and ready to install – 1 pc.
- A key for the doors – 1 pc.
- QR code labels linking to the Installation and Maintenance Instructions.
- A Packing list.
Maintenance
Downloads

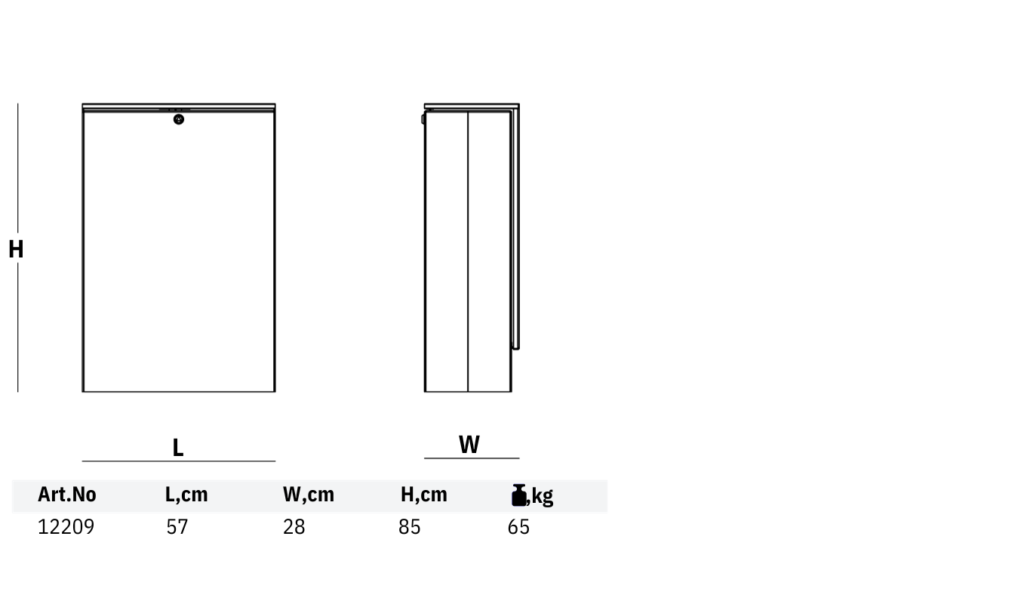

Dimensions
Installation Scheme
Maintenance Manual
CAD Files:
