Trash Bin 12206
€280.00 excl. VAT
Additional information
| Weight | 22 kg |
|---|---|
| Dimensions | 40 × 48 × 108 cm |
| Plastic bag holder | No, Yes |
| Material & finish | Carbon steel galvanized & painted |
| Anti-graffiti coating | No, Yes |
DESCRIPTION
Stylish & Robust
Trash bin 12206 has an open design and swing-like construction which is simple in service and robust in extensive usage. Also available with a covered design equipped with a lid.

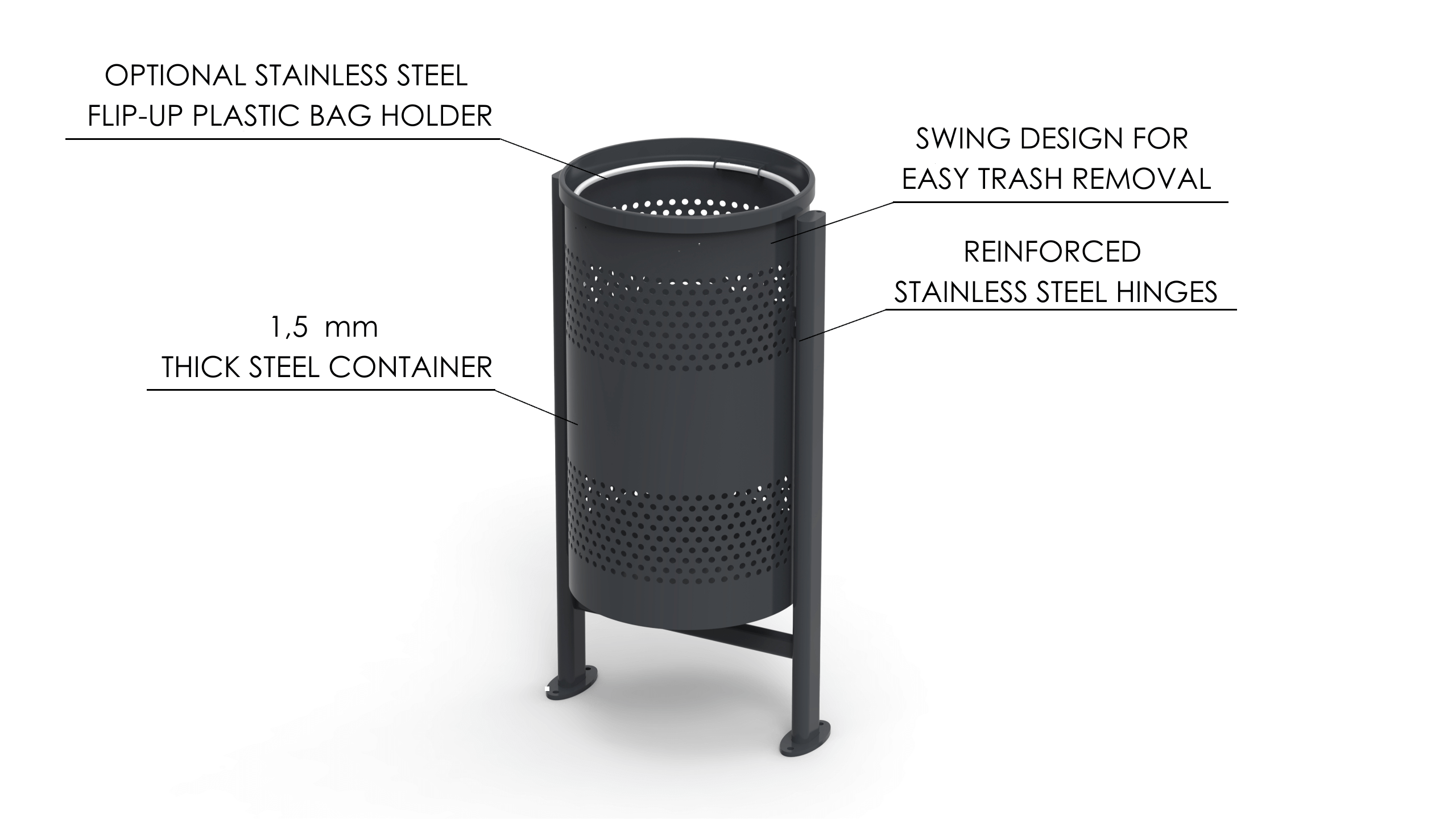

Trash bin 12206 Features:
- Volume 70 litres.
- Swing design for easy trash removal.
- Sturdy 1,5 mm thick steel sheet container.
- Stainless steel hinges.
- Drainage holes in the container’s bottom.
- Optional plastic bag holder.
- Corrosion resistance 15 years in city environments (corrosion class C4).
We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.
Specs
| DIMENSIONS, cm | 46(W) x 39(L) x 90 (H)
|
| WEIGHT, kg | 18 |
| VOLUME, L | 70 |
| MATERIAL | For container and frame: • Carbon steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted |
| COMPONENTS | Stainless steel A2 screws, plastic bag holder |
| QTY ON PALLET | 4 units on Pallet 80×120 cm |
Installation
The trash bin 12206 is ready for installation; it has mounting holes for anchoring in the ground.
Mounting method
The trash bin’s default mounting method is on-ground. Please refer to the Installation Instructions.
Anchors
The set of the trash bin does not include anchors.
Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials. ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.
The package includes:
- A trash bin, assembled and ready to install – 1 pc.
- QR code labels linking to the Installation and Maintenance Instructions.
- A Packing list.
Maintenance
Downloads

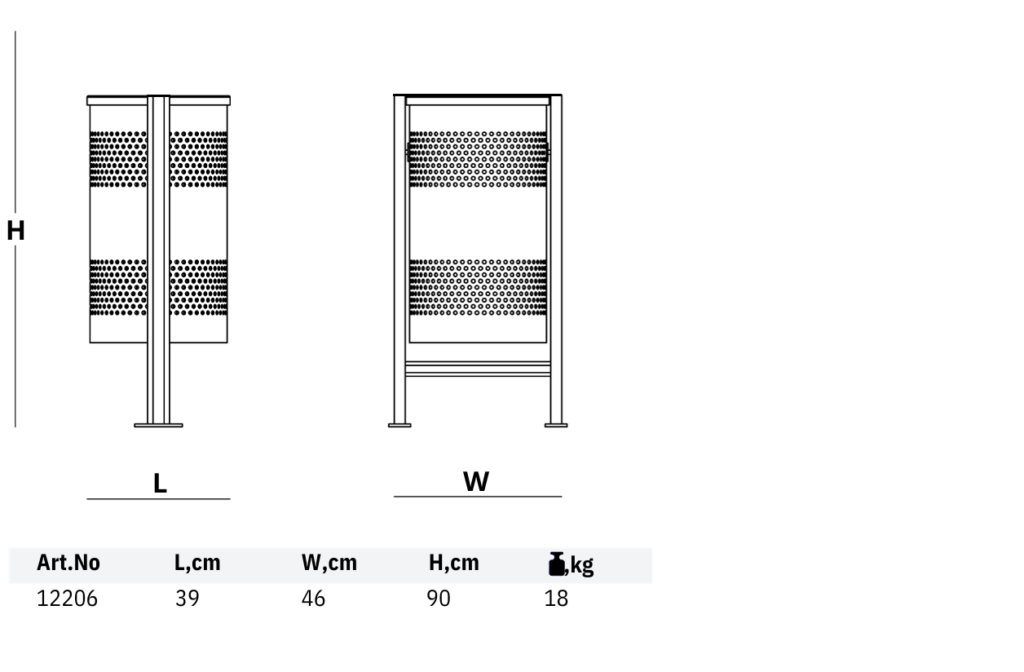

Dimensions
Installation Scheme
Maintenance Manual
CAD Files:
