Single-sided Bike Rack 13101.1

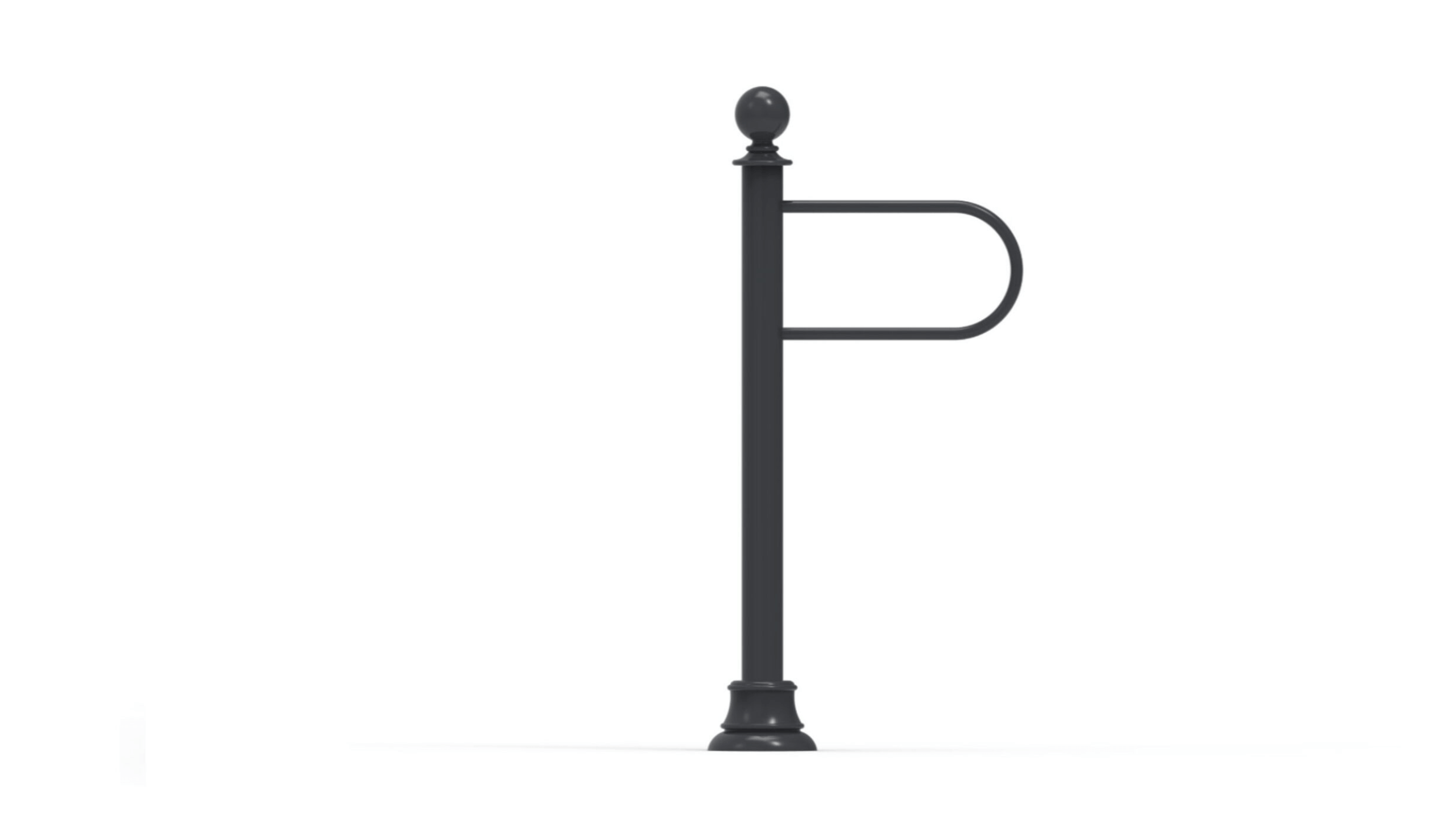

Single sided bike rack from steel

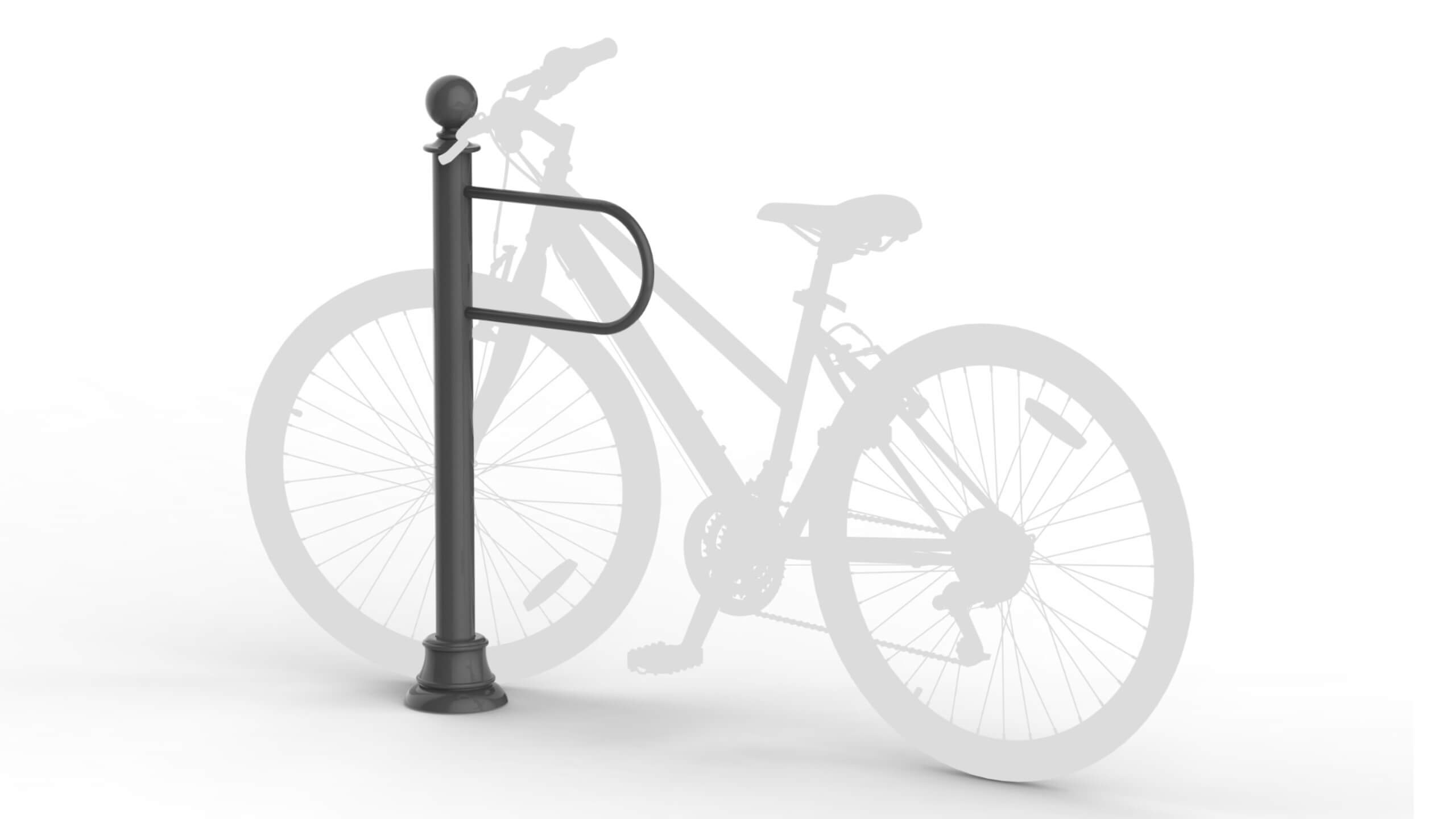

Bicycle stand with bicycle silhouette

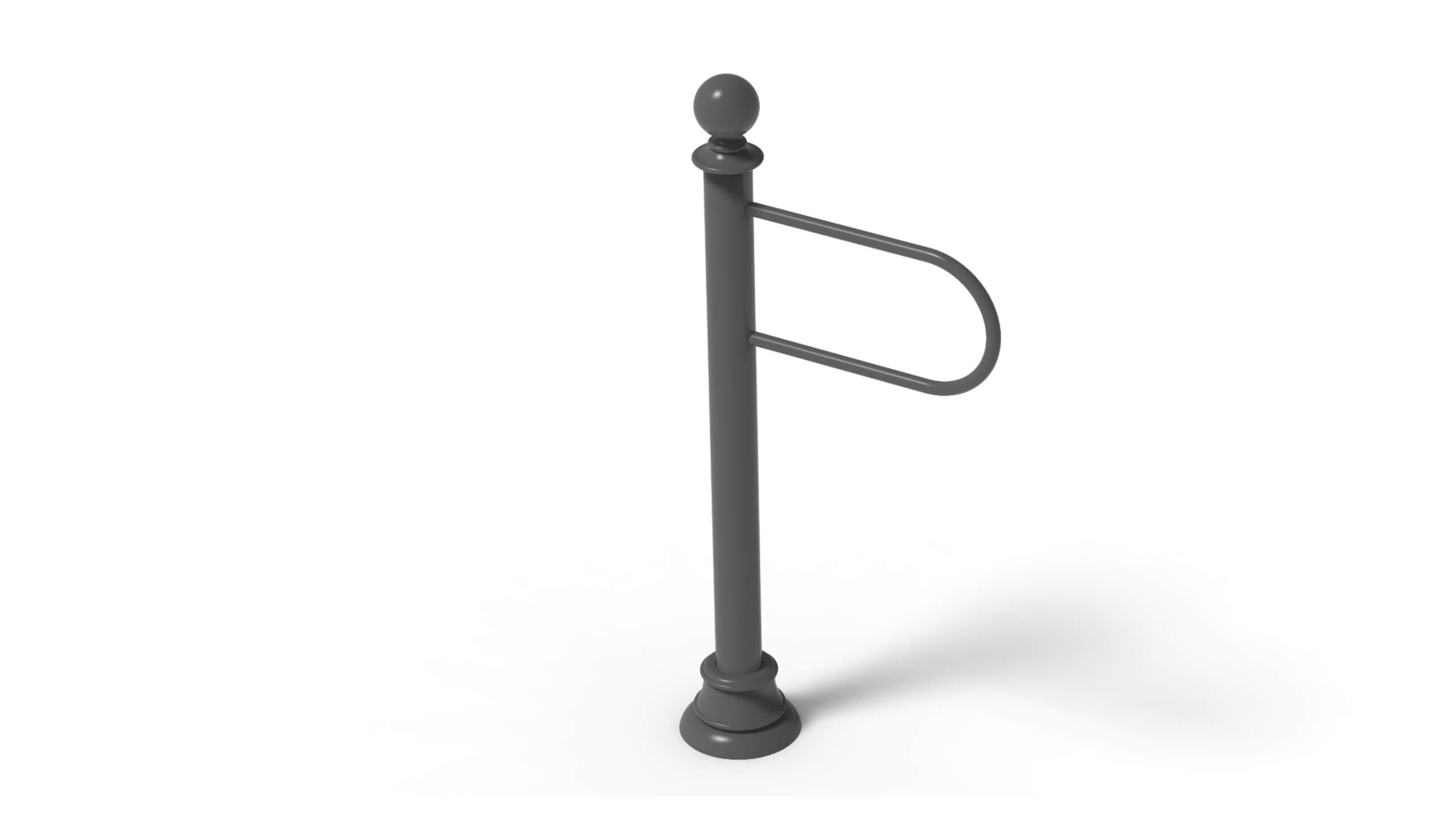

single sided bicycle rack

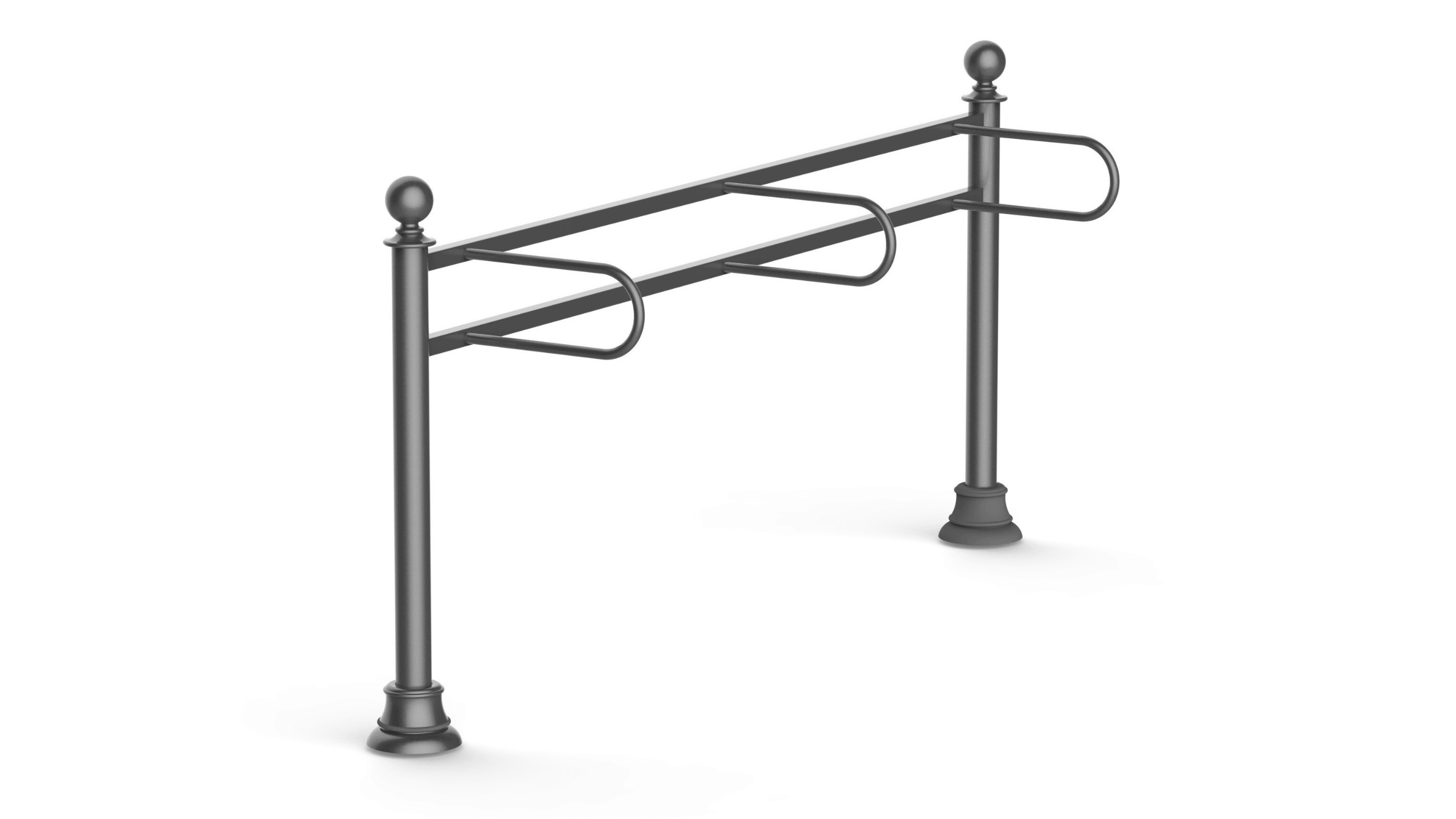

Bike parking racks block of 3 racks

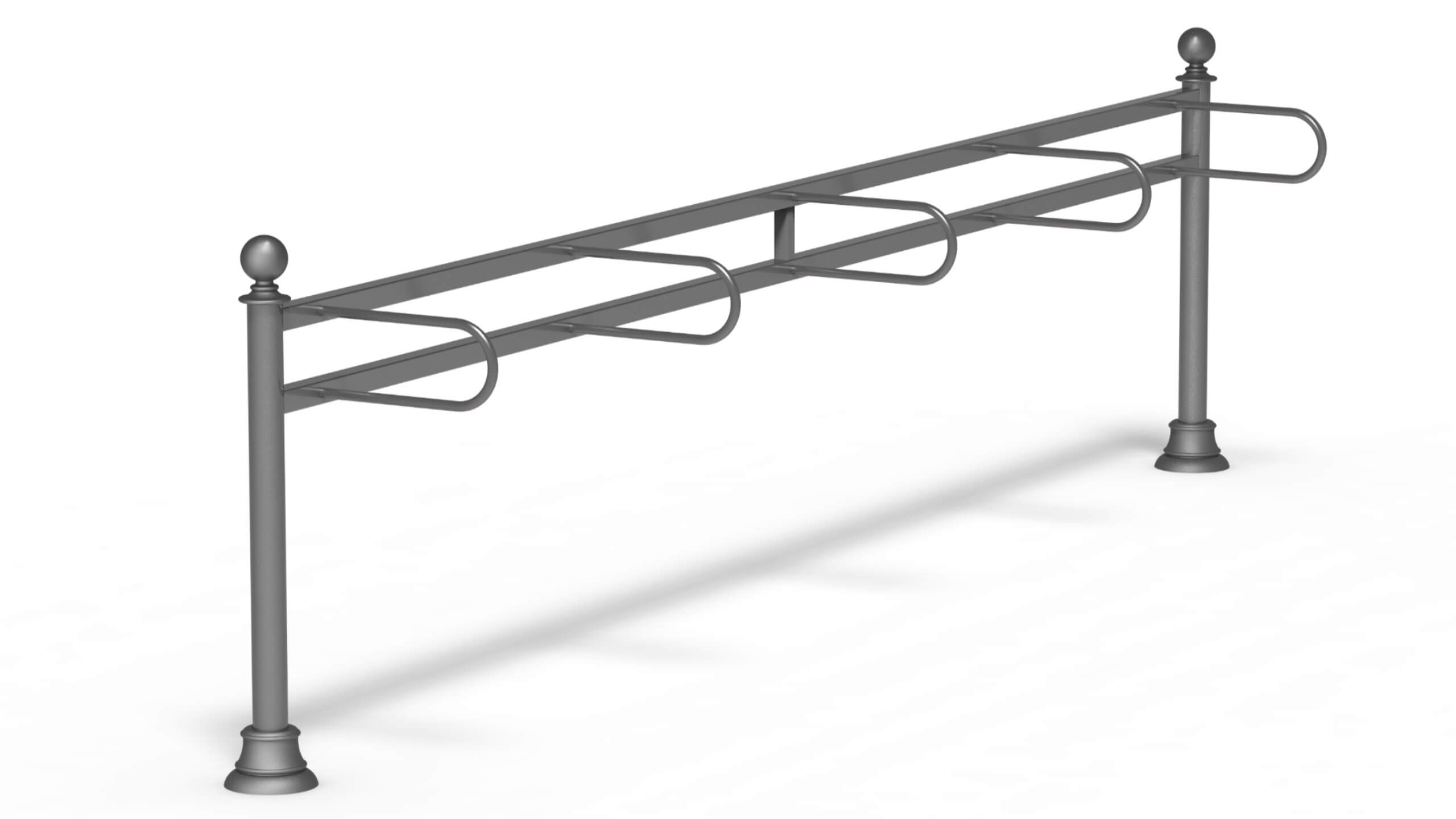

bike rack block of 5 racks from steel
Single-sided Bike Rack 13101.1 - Image 6
Single-sided Bike Rack 13101.1 - Image 7

Single-sided Bike Rack 13101.1

€255.00 excl. VAT




SKU: 13101.1 Category: Tags: , , ,

Description

The single-sided bike rack is distinct by the ornamental cast iron bottom foot and a sphere on the top. The bike stand design features timeless classic depictions, organically fitting in historical landmarks and any natural environment.



Features:

  • Classic design.
  • Capacity from 2 to 10 bicycles.
  • Secure bike rack: the extended design of the bike rack enables the bike frame to be securely locked to it.
  • Anti-rust surface treatment: sandblasted, powder-coated with zinc primer and with a finish coating.
  • Cast iron elements depict historical methods of production.



By pairing single-sided bike rack with cast iron benches such as Bench 11101 and Bench 11106, as well as a Planter 14101, a Trash Bin 12102, and a Bollard 24101 of the same style, create a unified and refined look.

Additional information

Single or in Block

Single Rack, Block of 3 Racks, Block of 5 Racks

SPECS

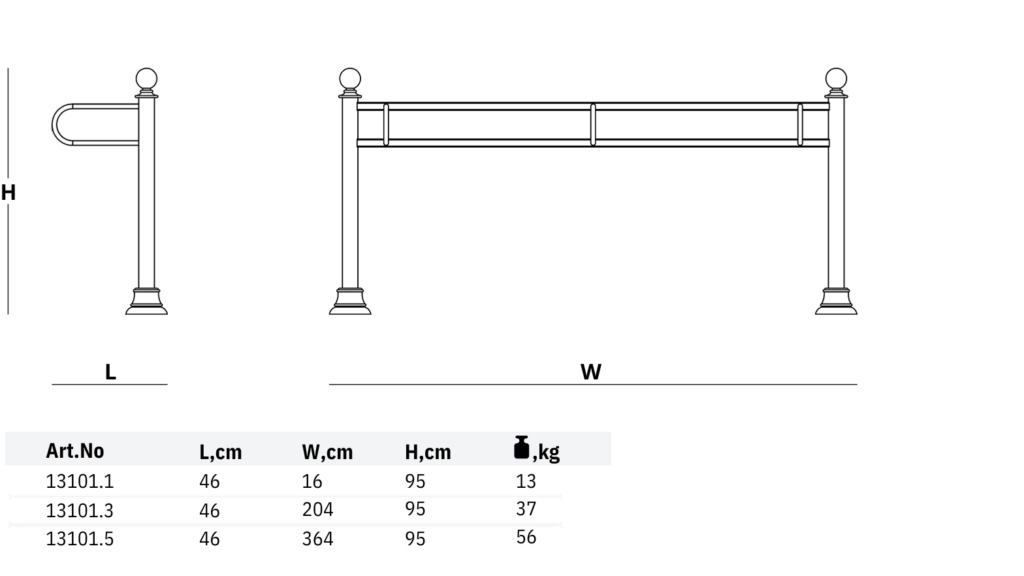

DIMENSIONS, cm•16(W)  x 46(L)  x 95 (H) – For Art.No 13101.1
•204(W) x 46(L)  x 95 (H)- For Art.No 13101.3
•364(W) x 46(L) x 95 (H) – For Art.No 13101.5
WEIGHT, kg•13 – For Art.No 13101.1
•37 – For Art.No 13101.3
•56- For Art.No 13101.5
MATERIALFor tube:
• Carbon steel
For foot and sphere:
• Cast iron metal
more about Materials
FINISHFor Carbon steel:
• Hot dip galvanized or
• Hot dip galvanized and painted
For Cast iron metal:
• Sandblasted, painted with zinc primer and a finish coating
COMPONENTSStainless steel A2 screws
QTY ON PALLET•3 units on Pallet 80×200 cm – For Art.No 13101.1 ; 13101.3
•1 unit on Pallet 80×200 cm – For Art.No 13101.5

INSTALLATION

Installation Guidelines for the Bike Rack 13101.1





  • Dig or drill a hole based on the surface and soil density.
  • Fill the excavated hole with a layer of compacted gravel.
  • Place the pole 50 cm below the surface level and adjust the product to the desired position.
  • Fill the hole with concrete.

MAINTENANCE

Downloads

Dimensions
Maintenance Manual
CAD Files

Declaration Of Conformity
