Seating 11205.TOP.STEEL
€270.00 excl. VAT
Additional information
| Material & finish | Carbon steel galvanized & painted, Stainless steel |
|---|---|
| Backrest | Yes, No |
SPECS

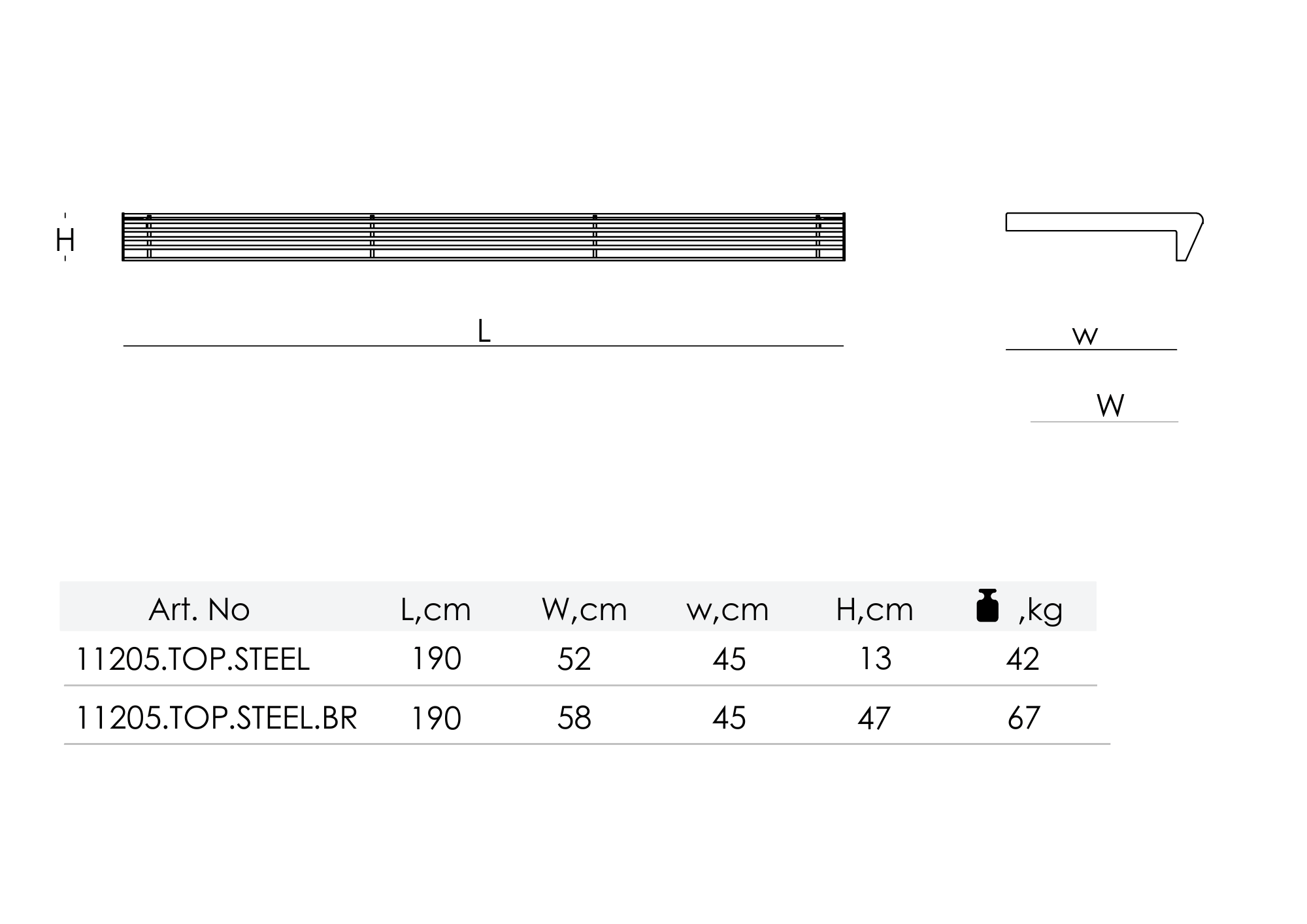

| DIMENSIONS, cm | 52 (W) x w (45) x 190 (L) x 13 (H) – For Art.No 11205.TOP.STEEL 58 (W) x w (45) x 190 (L) x 47 (H) – For Art.No 11205.TOP.STEEL.BR
|
| WEIGHT, kg | 42 – For Art.No 11205.TOP.STEEL 67 – For Art.No 11205.TOP.STEEL.BR |
| MATERIAL | For frame, seat and backrest: • Carbon steel or • Stainless steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized and painted For Stainless steel: • Brushed finish or • Bead blasted (subject to availability) |
| COMPONENTS | Stainless steel bolts for seat and backrest |
| QTY ON PALLET | 5 units on Pallet 80×200 cm |
Installation
The seating 11205.TOP.STEEL is manufactured with pre-drilled holes and supplied with bolts, and it requires easy self-assembly.
Mounting method
The seating surfaces default mounting method is on a concrete foundation. Please refer to the Installation Instructions.
Anchors
The set of the bench does not include anchors.
The contractor is responsible for choosing the proper anchoring method and materials depending on the mounting surface, loads, and external conditions.
Our ANCHOR.200 ensures secure fastening and minor visible elements (countersunk or ‘mushroom’ type bolt). For the bench anchoring 4 sets of ANCHOR.200 can be ordered here.
The seating surfaces package includes:
- Steel frame with holes for connecting to a seat and backrest – 2 pcs.
- Seat and backrest screwed onto the steel frame – 1 pc. of each.
- Bolts and nuts for the assembly backrest to seat.
- QR code labels linking to the Installation and Maintenance Instructions.
- Packing list
Maintenance
Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
- Materials and finishes used for the Product
- Influence of environmental conditions on urban furniture
- Care and maintenance
- The expected lifecycle
