Root Guard 17204
€770.00 excl. VAT
Additional information
| Size, cm | L=200 d=60 |
|---|---|
| Finish | Galvanized & Painted, Only Galvanized |
Description

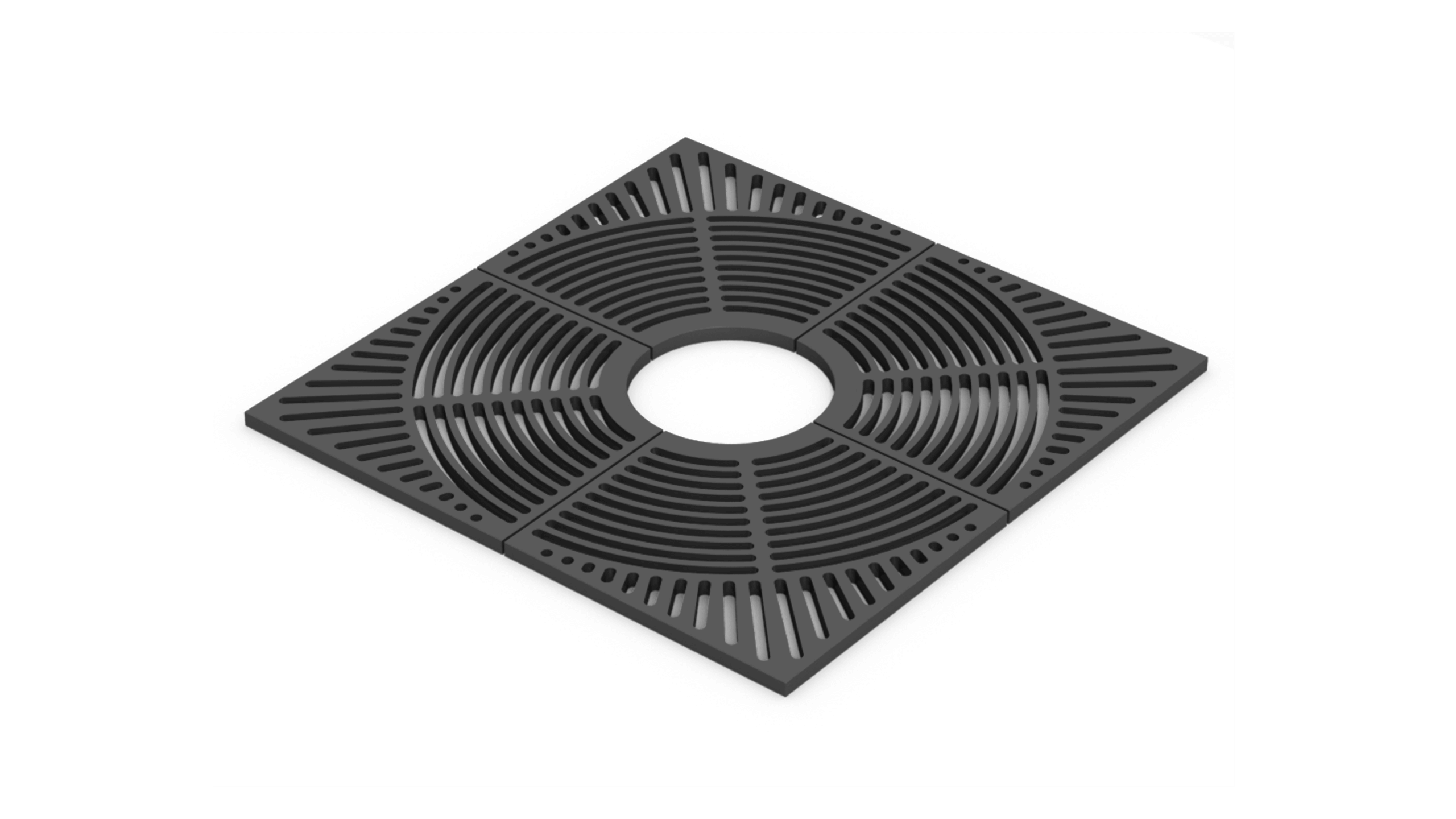

Tree Root Guard 17204 are widely used to maintain the health and longevity of urban trees. These durable grates provide essential protection for tree roots in paved areas, preventing from soil compaction and damage from pedestrian and vehicle traffic.
By allowing proper air and water circulation, these metal tree grilles promote healthy tree growth while seamlessly integrating into the cityscape due to their variety of sizes and designs.
Features
- Anti-corrosion treatment suited for harsh city environments – C4 corrosion category,
- Intended for pedestrian traffic (incl. bikes, scooters) in the standard version; an optional load-bearing frame for delivery transport or street maintenance transport on demand,
- Concealed fastening screws.
Material and Finish
- Carbon steel with anti-rust and painted coating – a solid and robust material for extensive usage.
- Color variations for the steel frame include 22 RAL tones, choosing from Contemporary, Nature, and Accents palettes.
To learn more about the materials, please click here.
Specs

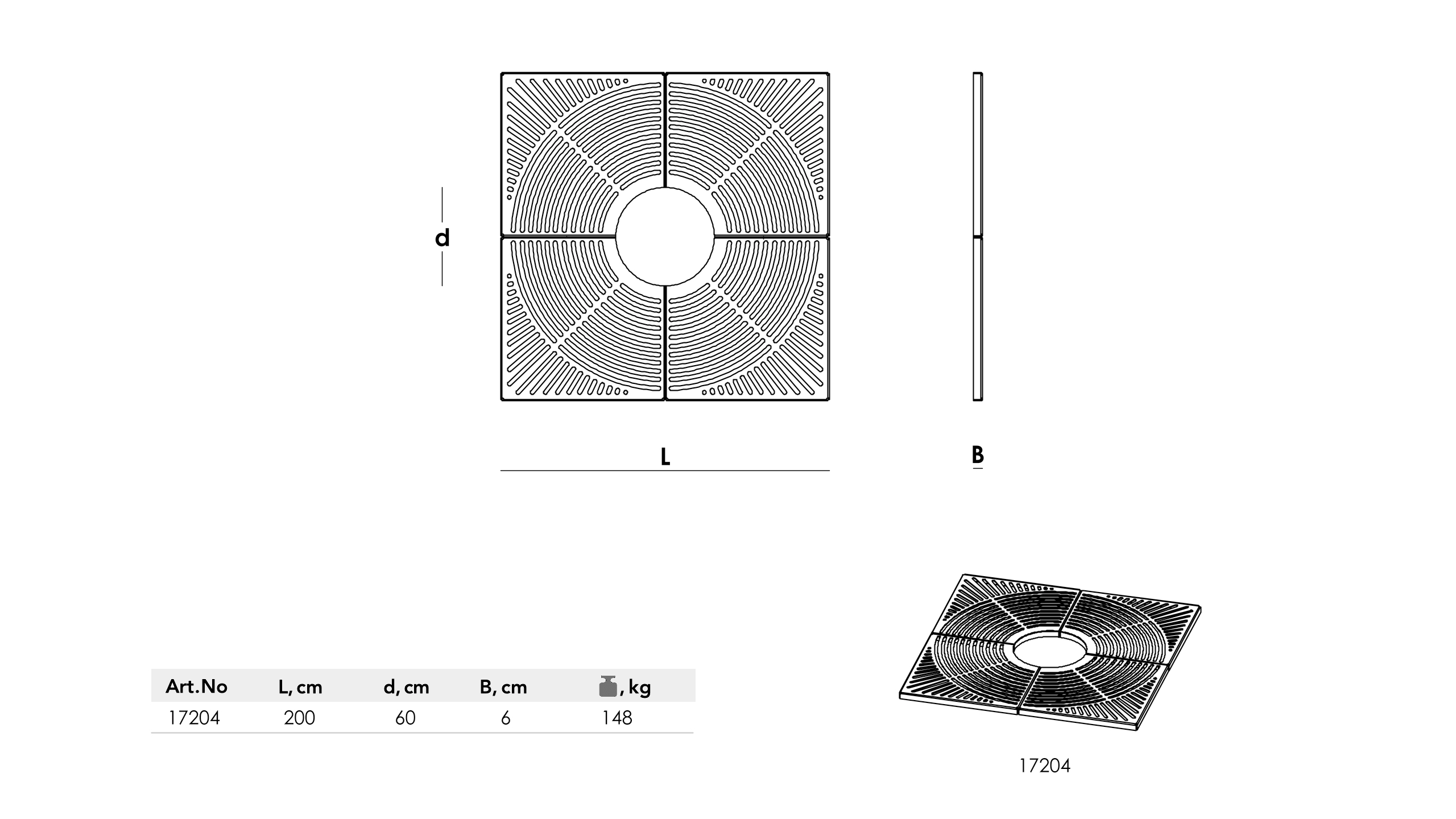

| DIMENSIONS, cm | 200(L) x 6(B) x 60 (d) |
| WEIGHT, kg | 148 |
| MATERIAL | For frame: • Carbon steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted |
| COMPONENTS | Screws M10x30 A2 DIN7380 and nuts, 4 sets |
| QTY ON PALLET | 4 units on Pallet 100×100 cm |
Installation
Tree Root Guard Installation:
- Prepare the foundation by leveling the surface and ensuring a stable, compacted base for installation.
- Position the root guard around the tree trunk, maintaining the required clearance between the tree and the frame construction.
- Assemble the guard sections using screws and nuts, ensuring a firm and stable connection.
- Verify that the guard is level and does not restrict the tree’s natural growth.
- If necessary, secure the guard to the concrete base or paving with anchor bolts.
MAINTENANCE
Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
- Materials and finishes used for the Product
- Influence of environmental conditions on urban furniture
- Care and maintenance
- The expected lifecycle
