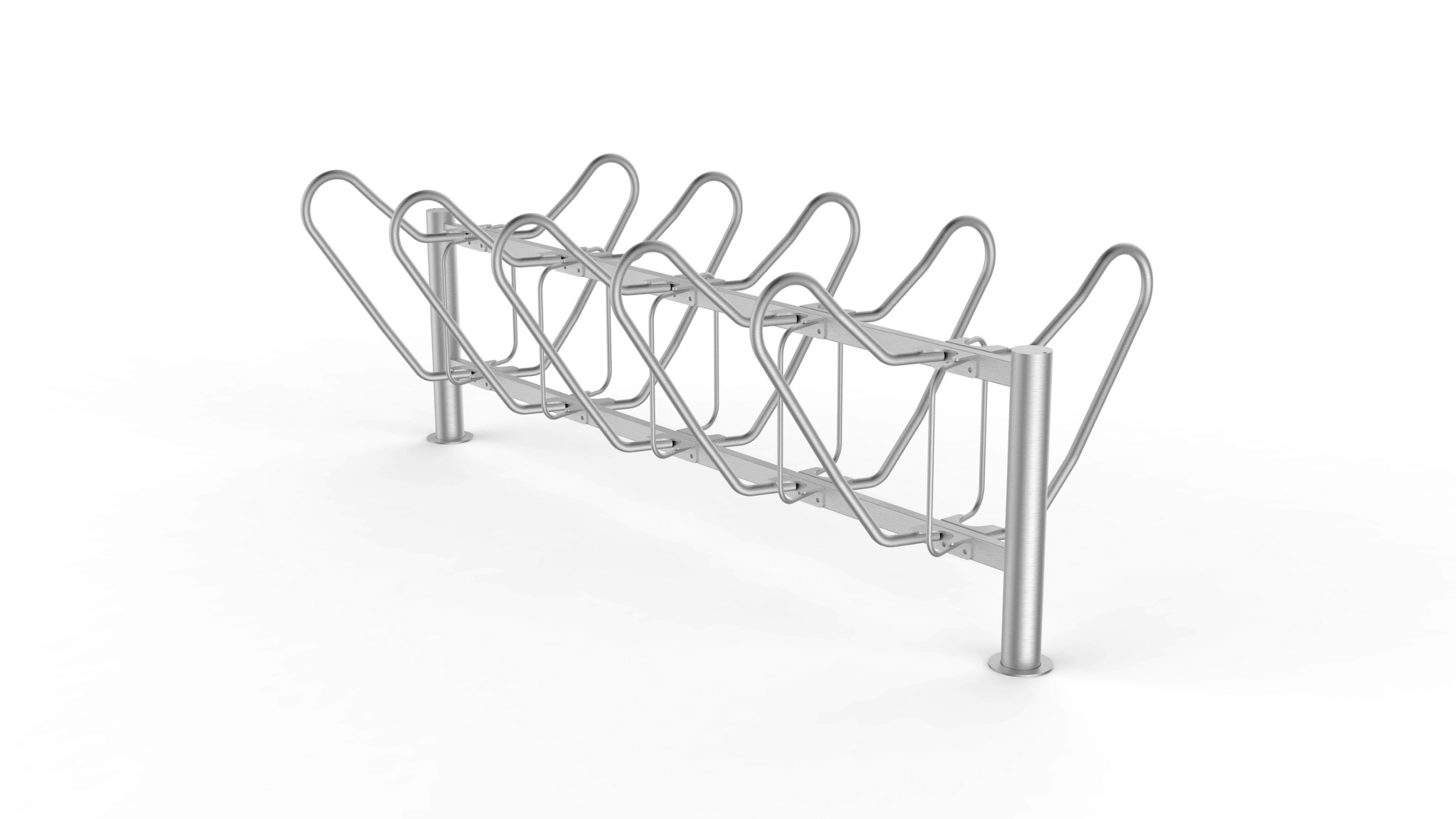

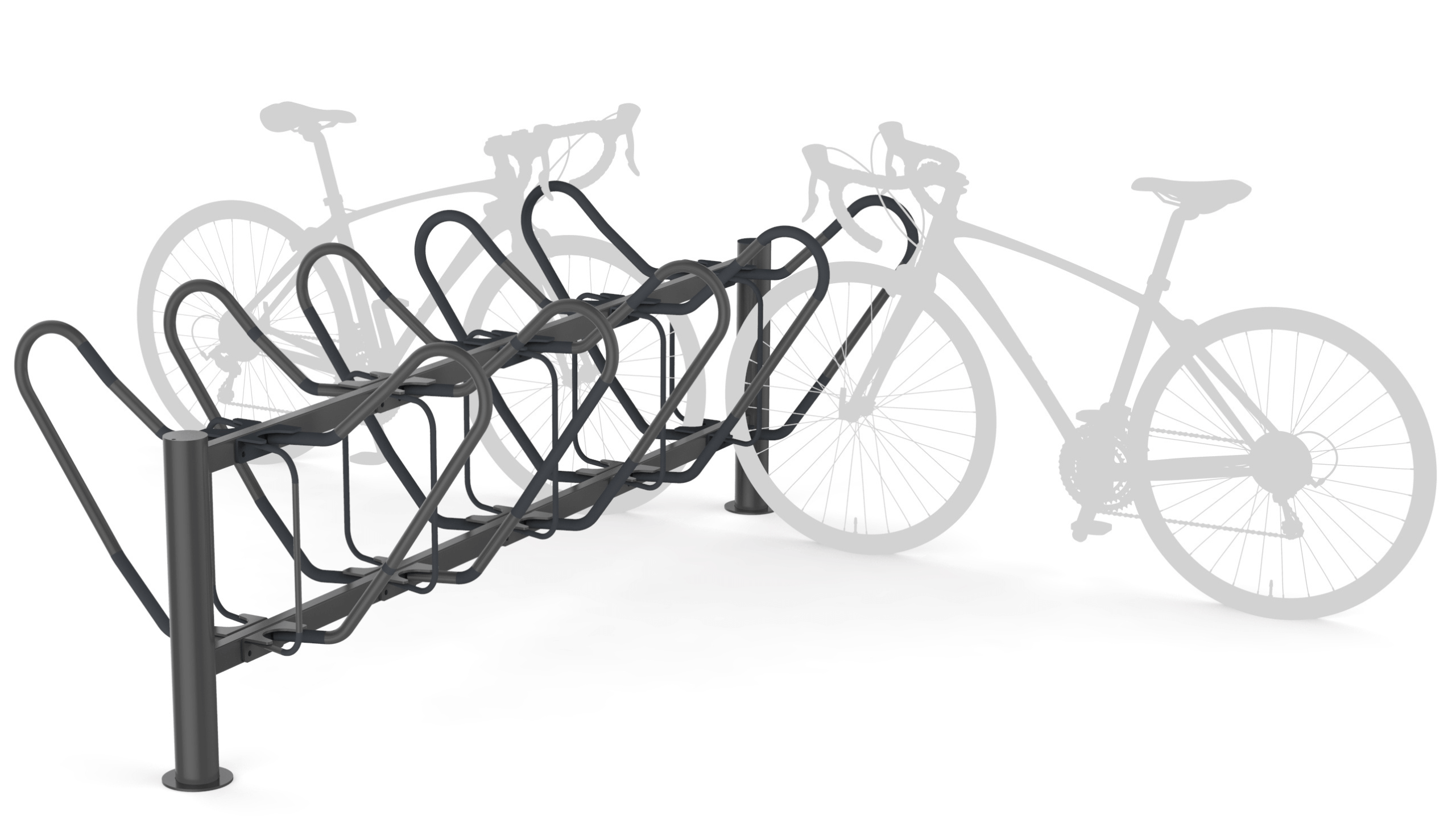

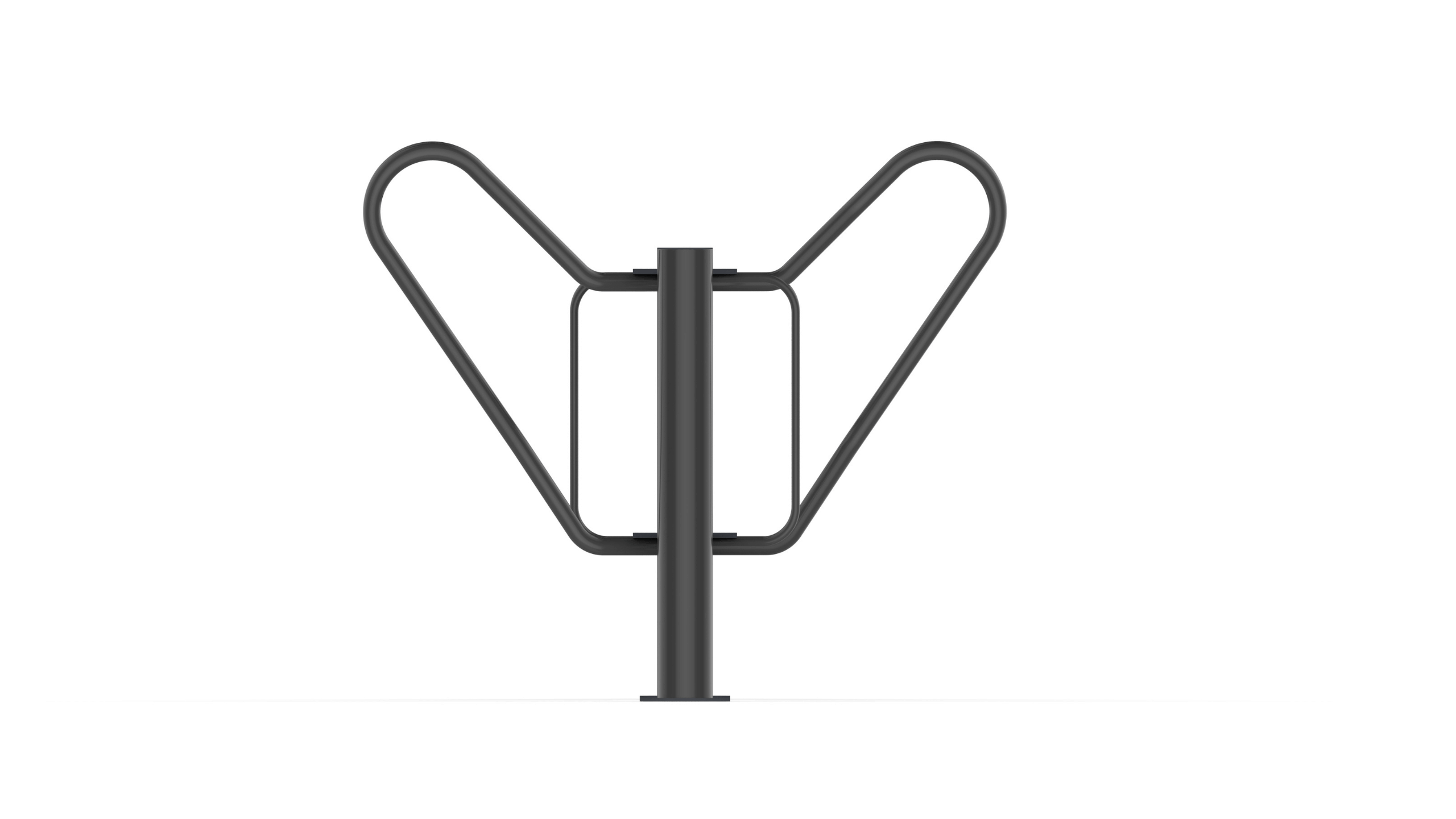

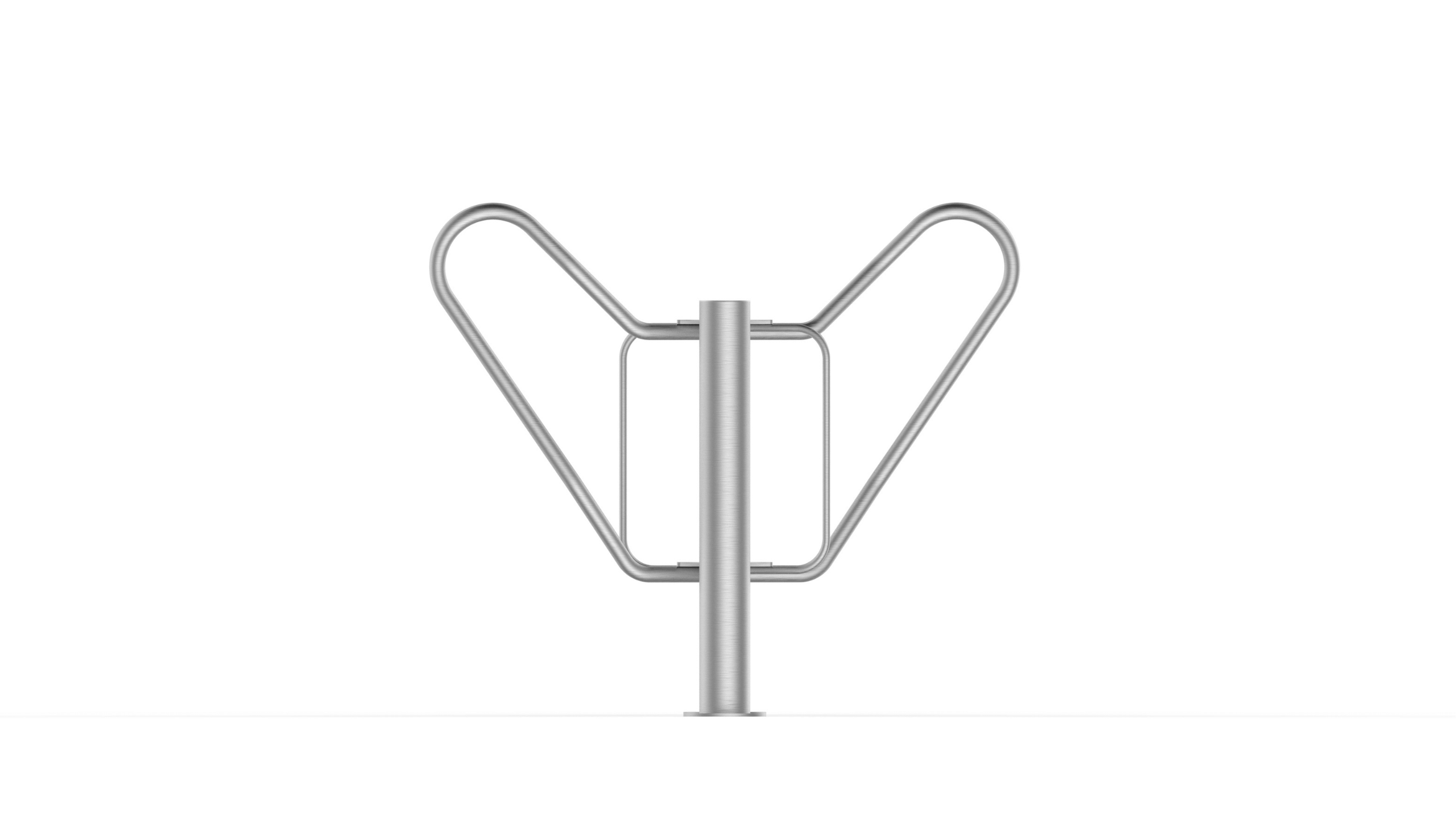

Double-sided Bike Rack 13217.2
€640.00 excl. VAT
Additional information
| Quantity in block | Block of 6 racks, Block of 8 racks, Block of 10 racks, Block of 12 racks, Block of 14 racks, Block of 16 racks |
|---|---|
| Finish | Galvanized & Painted, Only Galvanized |
SPECS

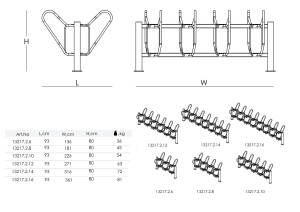

| DIMENSIONS, cm | •136(W) x 93(L) x 80(H) – For Art.No 13217.2.6 •181(W) x 93(L) x 80(H) – For Art.No 13215.2.8 •226(W) x 93(L) x 80(H) – For Art.No 13215.2.10 •271(W) x 93(L) x 80(H) – For Art.No 13215.2.12 •316(W) x 93(L) x 80(H) – For Art.No 13215.2.14 •361(W) x 93(L) x 80(H) – For Art.No 13215.2.16  |
| WEIGHT, kg | •36 – For Art.No 13217.2.6 •45 – For Art.No 13215.2.4 •54 – For Art.No 13215.2.10 •63 – For Art.No 13215.2.12 •72 – For Art.No 13215.2.14 •81 – For Art.No 13215.2.16 |
| MATERIAL | For frame: • Carbon steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted |
| COMPONENTS | Stainless steel A2 screws |
| QTY ON PALLET | 5 units on Pallet 80×200 cm |
Installation
The Bike Rack 13217.2 is ready for installation;

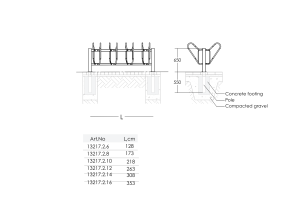

Mounting method
The bike rack’s default mounting method is cast-in ground.
The height above the finished ground and the embedment depth into concrete should be taken into consideration according to the installation scheme.
If sub-surface fastening is needed, we will modify the steel framework appropriately. Longer lead time and possible additional charges may apply.
The package includes:
- A bike rack, assembled and ready to install – 1 pc.
- QR code labels linking to the Installation and Maintenance Instructions.
- A Packing list.
Maintenance
Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
- Materials and finishes used for the Product
- Influence of environmental conditions on urban furniture
- Care and maintenance
- The expected lifecycle
