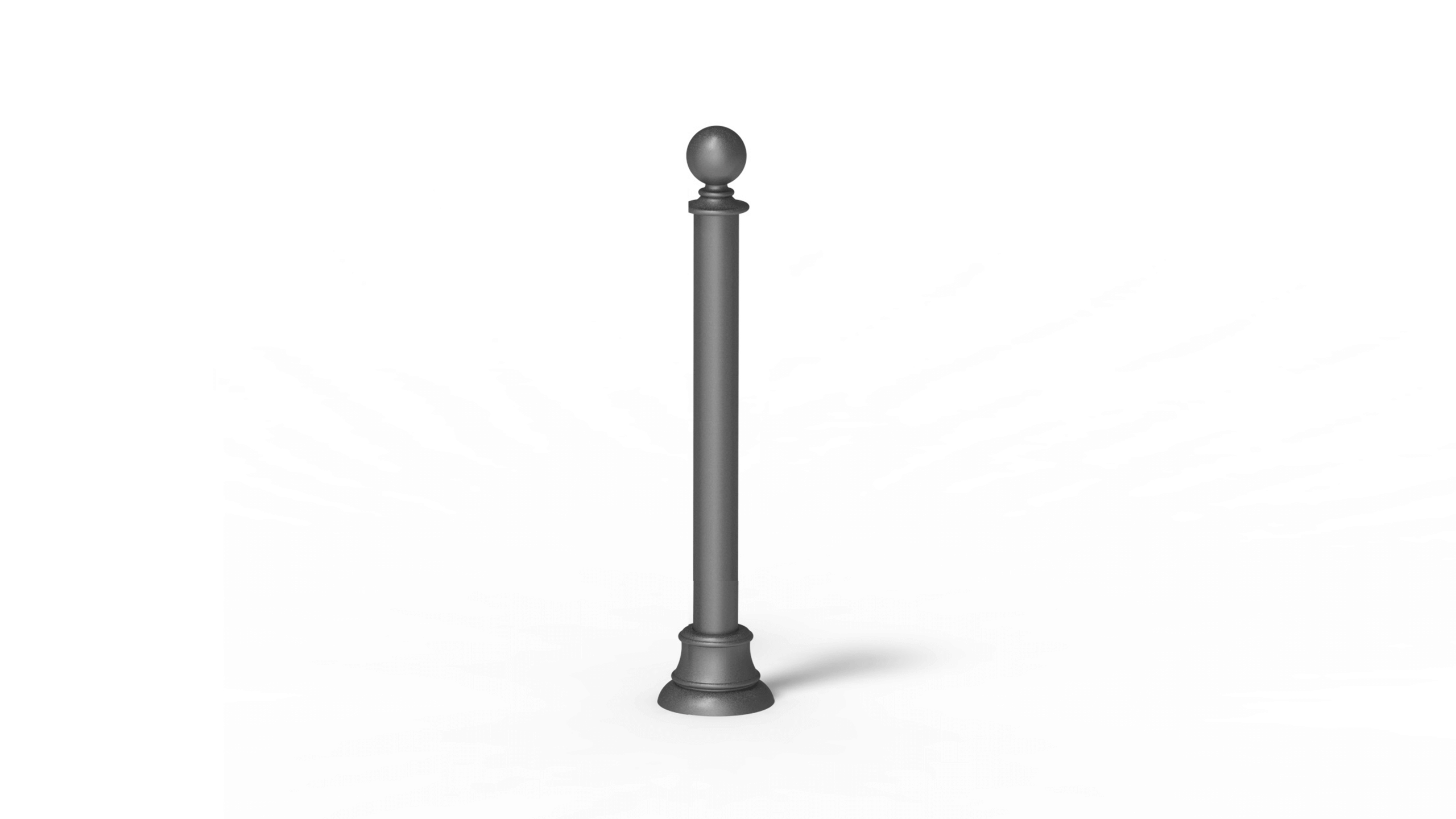

Bollard 24201
€215.00 excl. VAT
Additional information

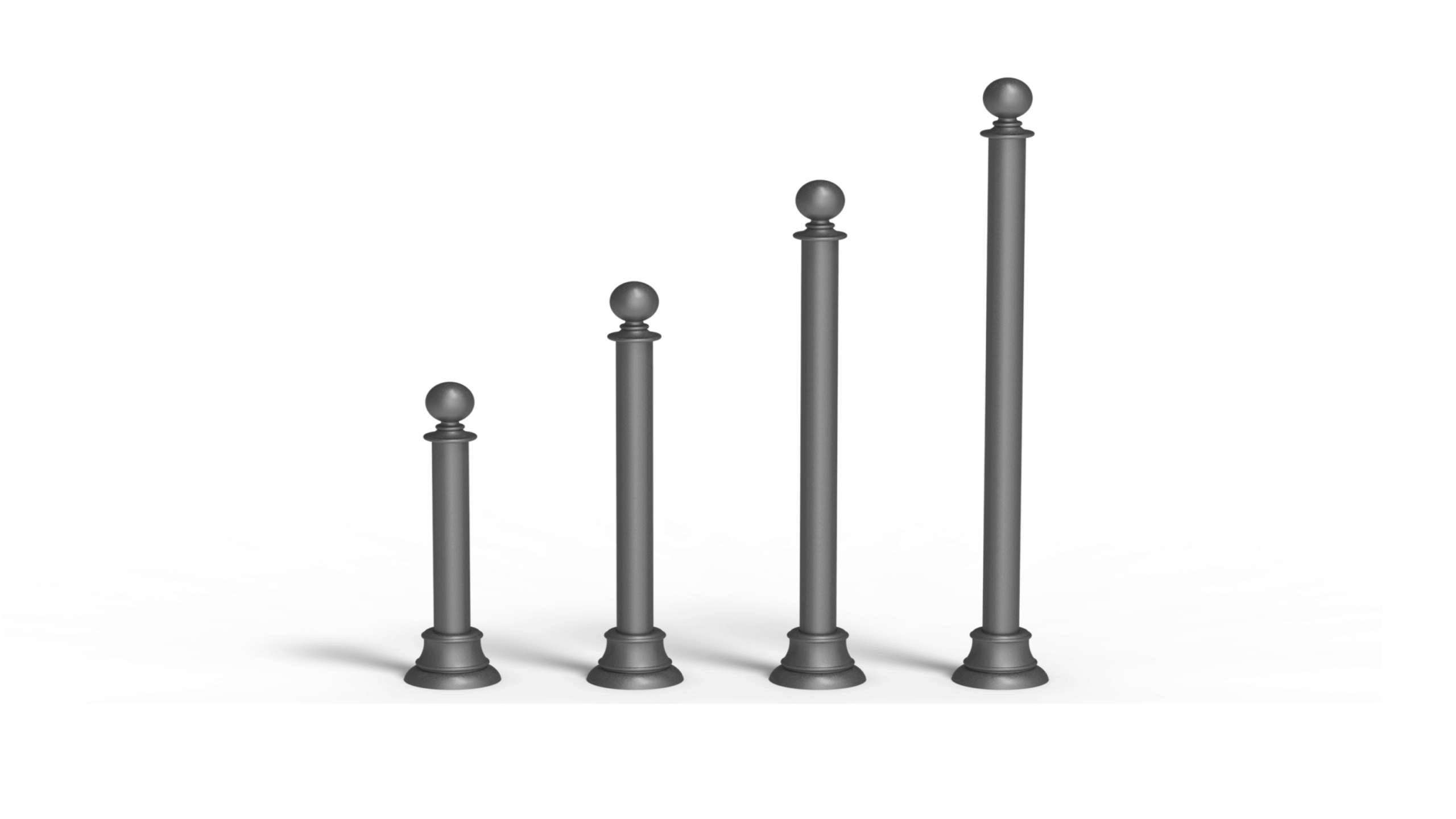

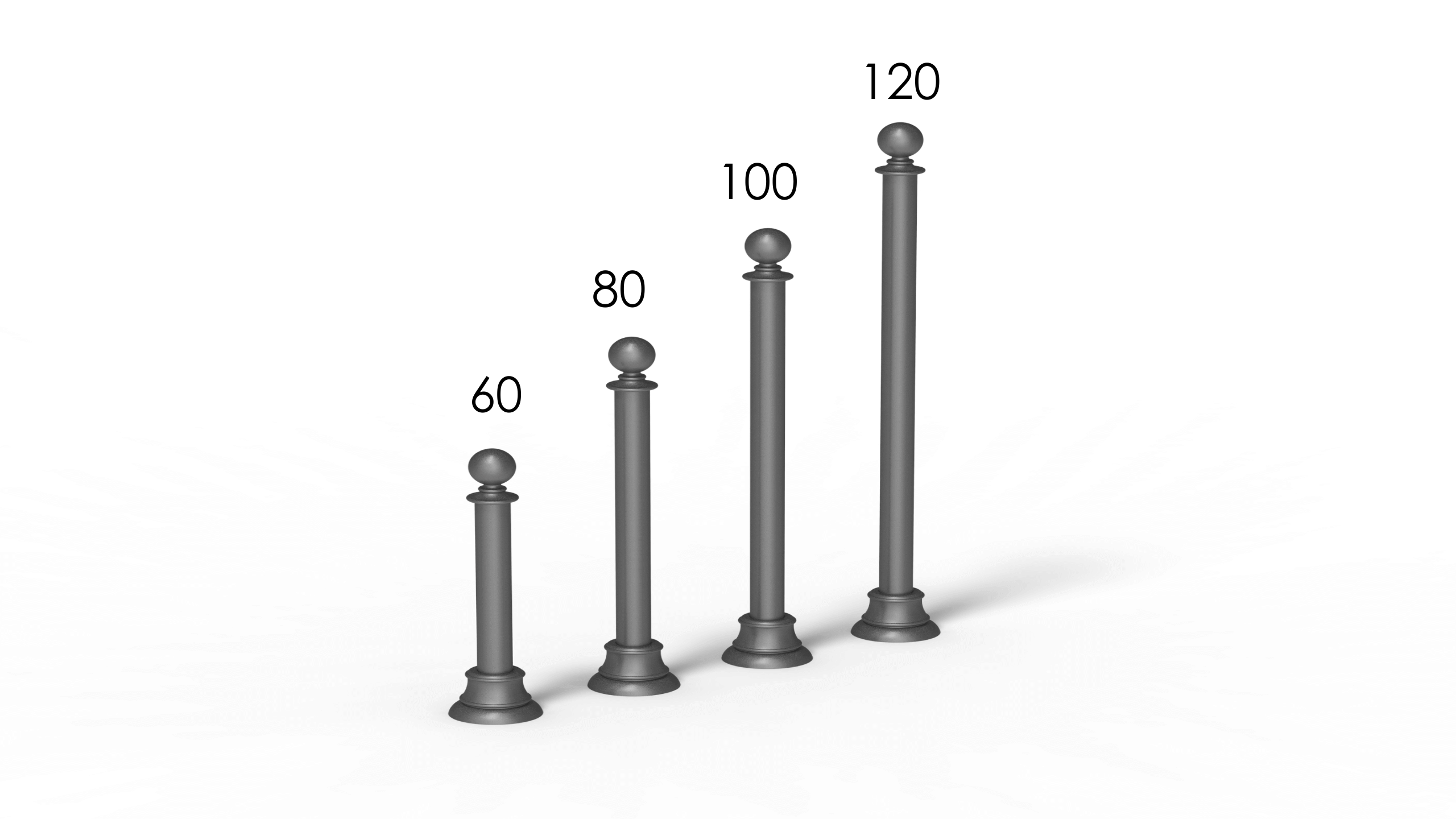

| Length | 60 cm, 80 cm, 100 cm, 120 cm |
|---|
Description
SPECS

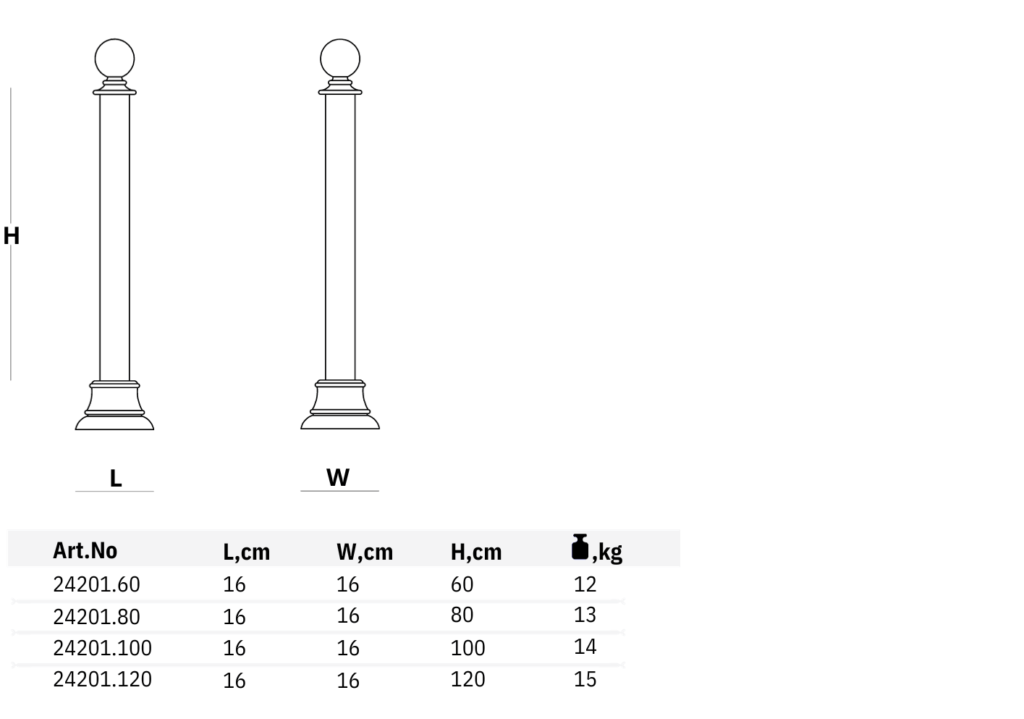

| DIMENSIONS, cm | •16(W) x 16(L) x 60 (H) – For Art.No 24201.60 •16(W) x 16(L) x 80 (H) – For Art.No 24201.80 •16(W) x 16(L) x 100 (H) – For Art.No 24201.100 •16(W) x 16(L) x 120 (H) – For Art.No 24201.120  |
| WEIGHT, kg | •12 – For Art.No 24201.60 •13 – For Art.No 24201.80 •14 – For Art.No 24201.100 •15 – For Art.No 24201.120 |
| MATERIAL | Metal tube: Carbon steel Foot and sphere: Cast iron more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Cast iron: • Sand blasted, painted with zinc primer and a finish layer |
| COMPONENTS | Stainless steel A2 screws |
| QTY ON PALLET | 10 units on Pallet 80×200 cm |
Installation
Installation Guidelines for the bollard 24201
- Dig or drill a hole based on the surface and soil density.
- Fill the excavated hole with a layer of compacted gravel.
- Place the pole 50 cm below the surface level and adjust the product to the desired position.
- Fill the hole with concrete.
