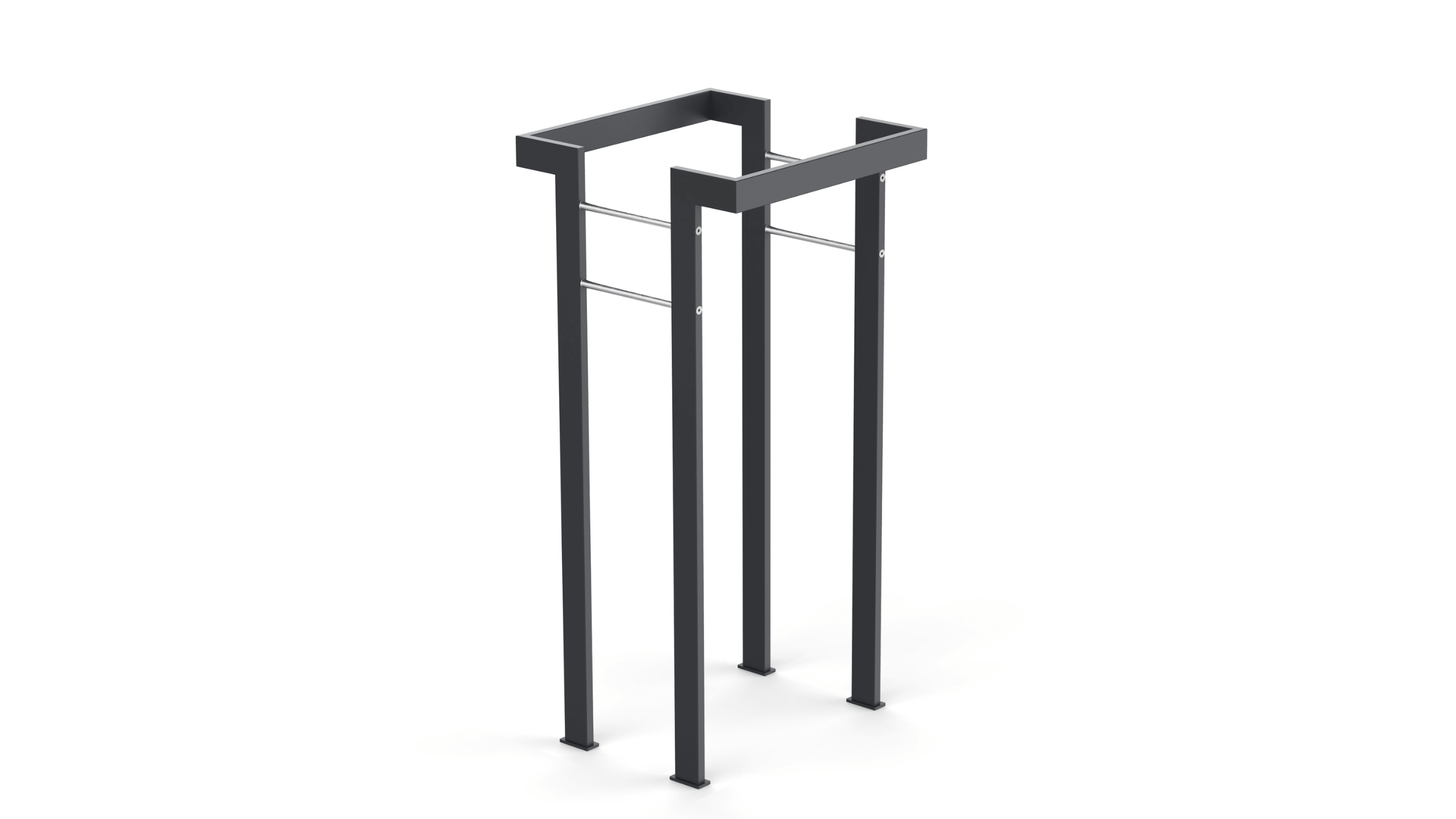

Trunk Guard/Bike Rack 18101
€340.00 excl. VAT
Additional information
| Base diameter | 50 cm, 60 cm, 70 cm |
|---|---|

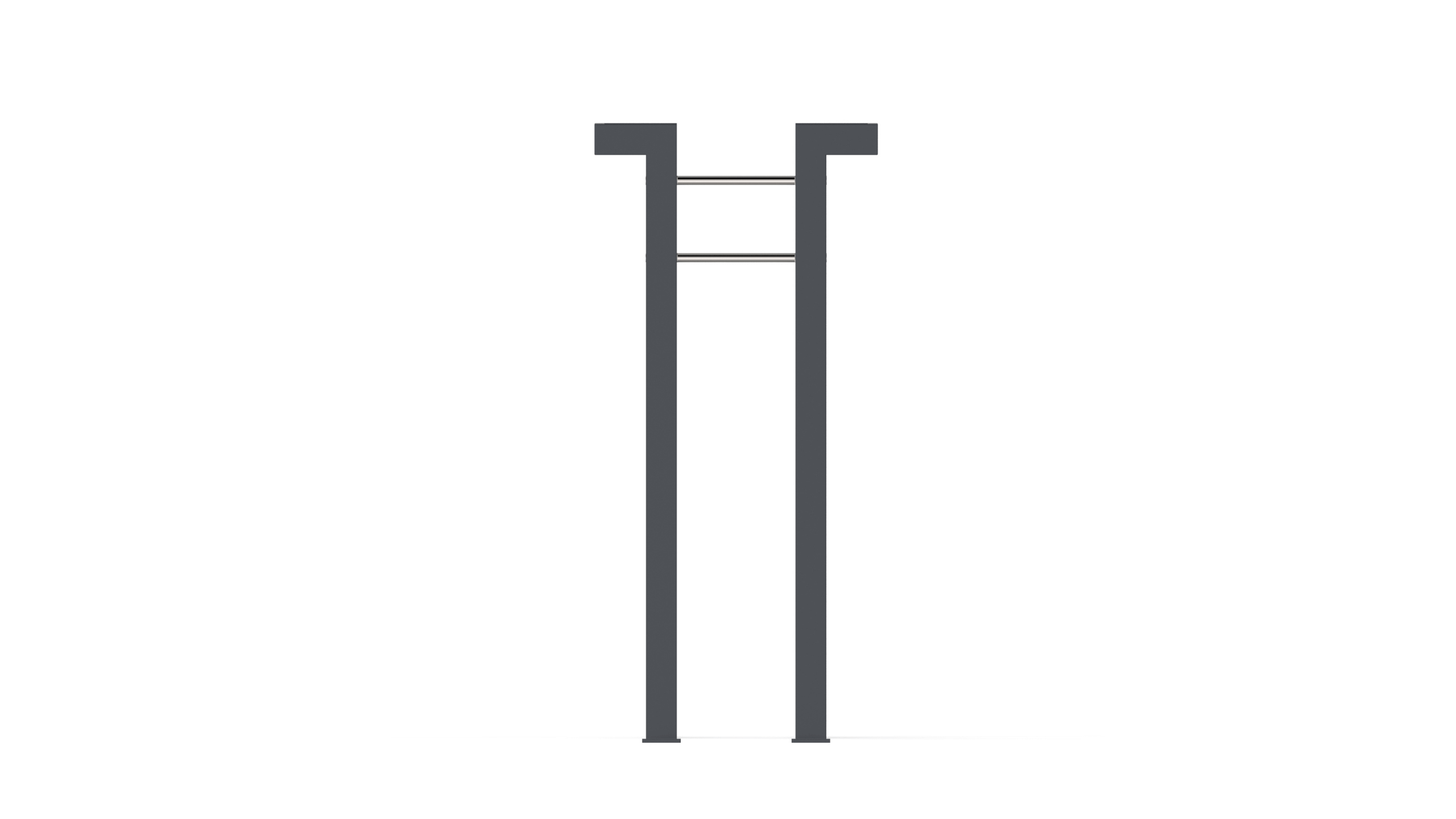

| Parking sign | Yes, No |
| Material & finish | Carbon steel galvanized & painted |
Description
2 in 1

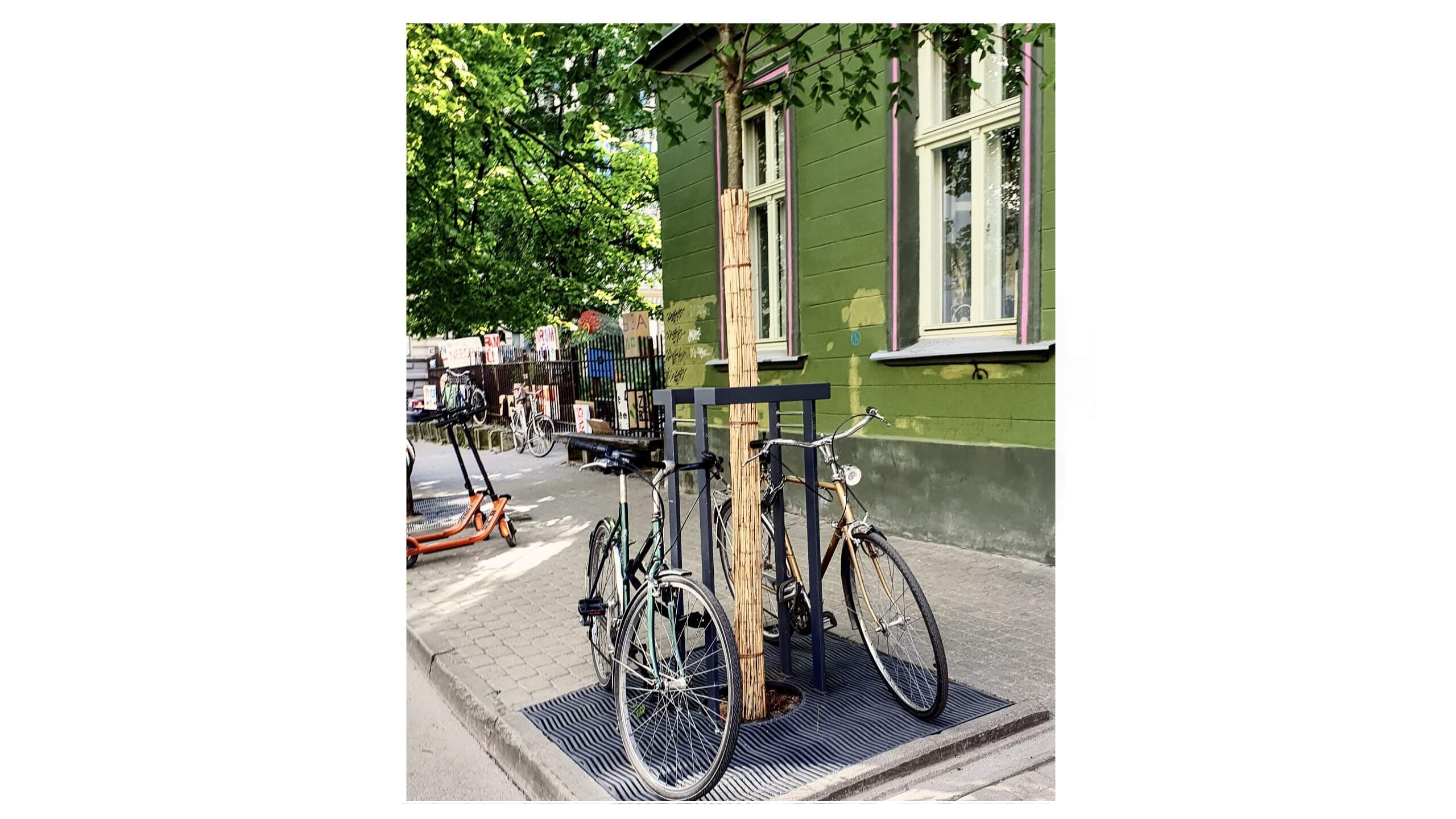

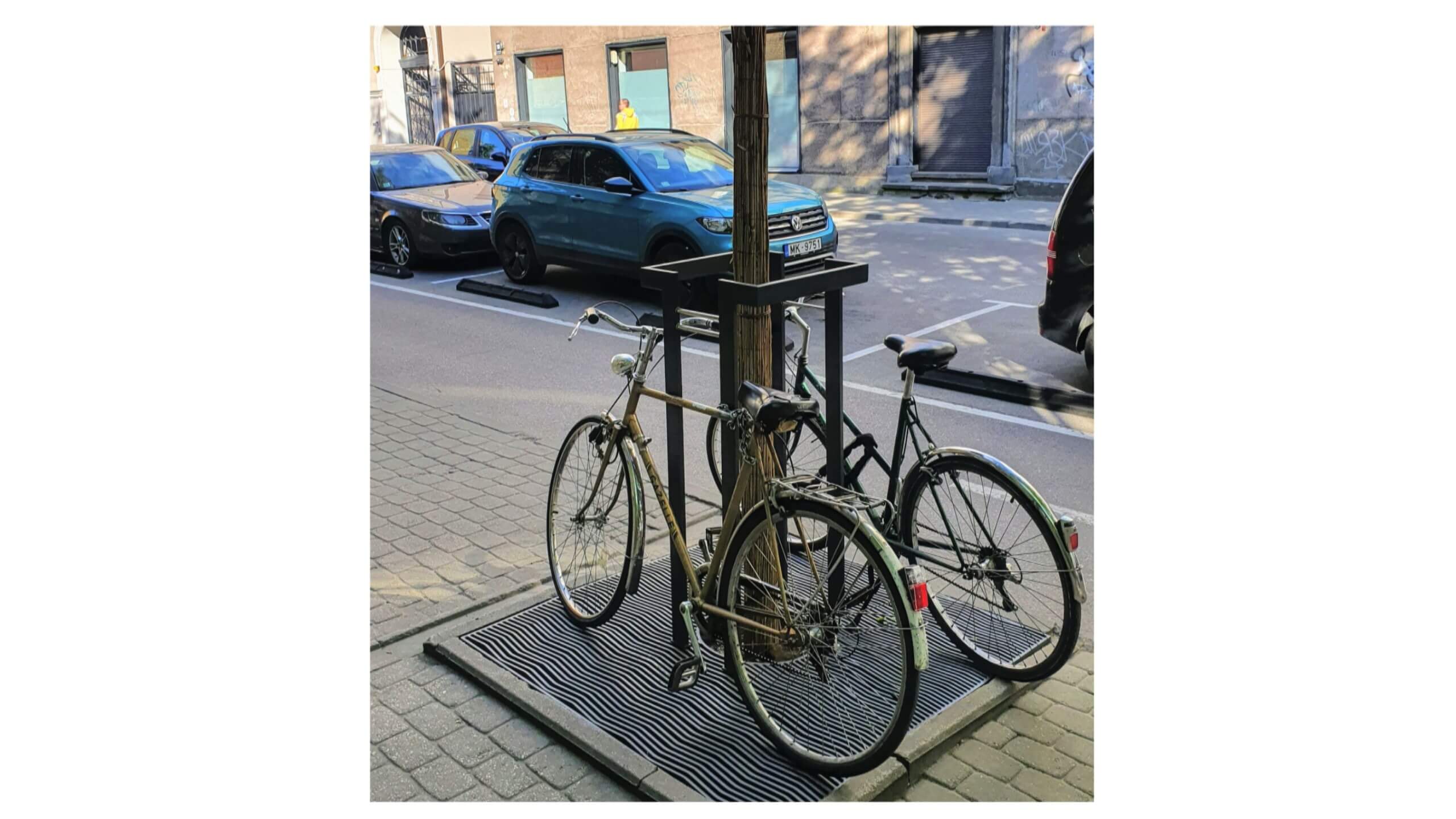

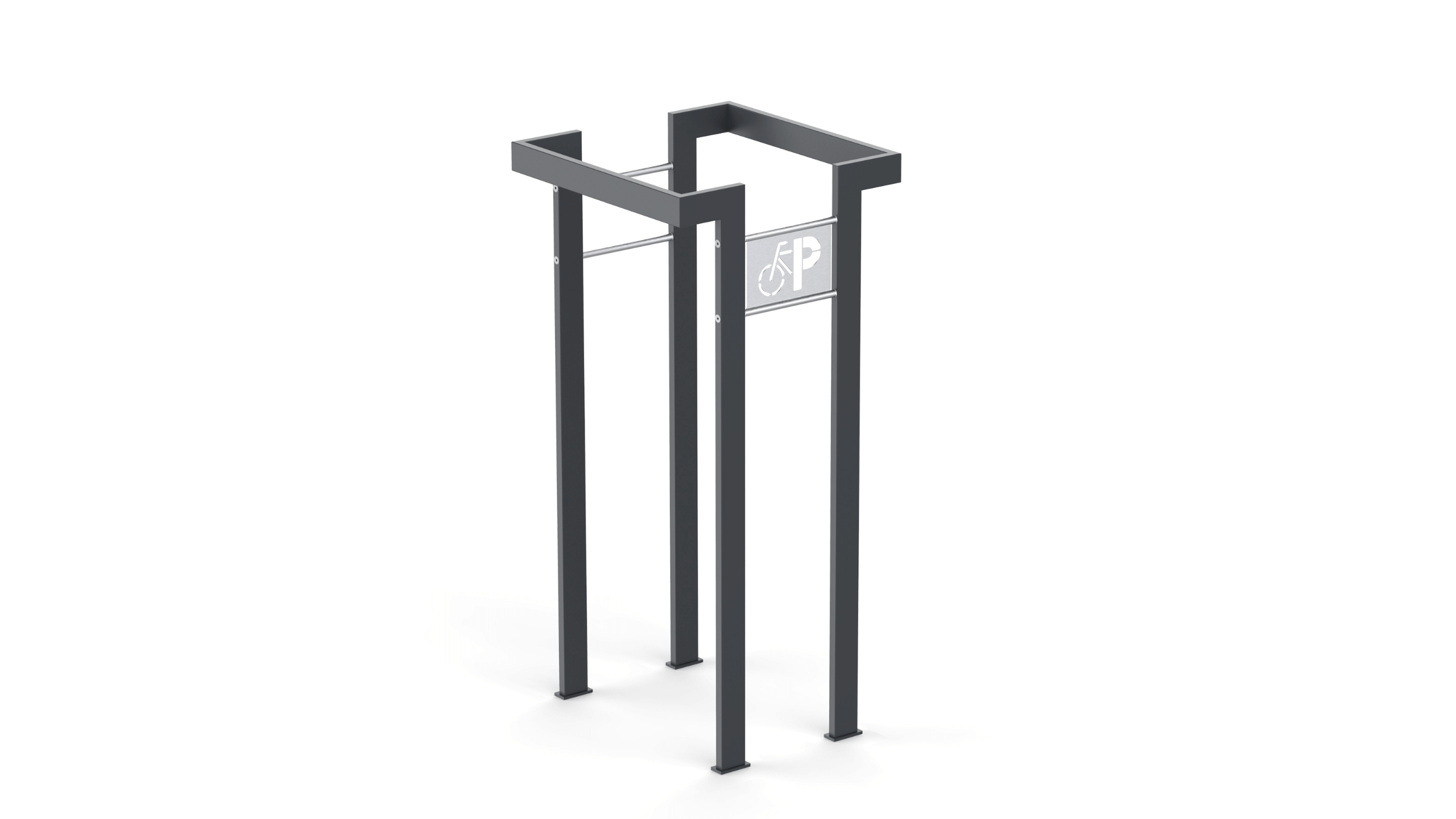

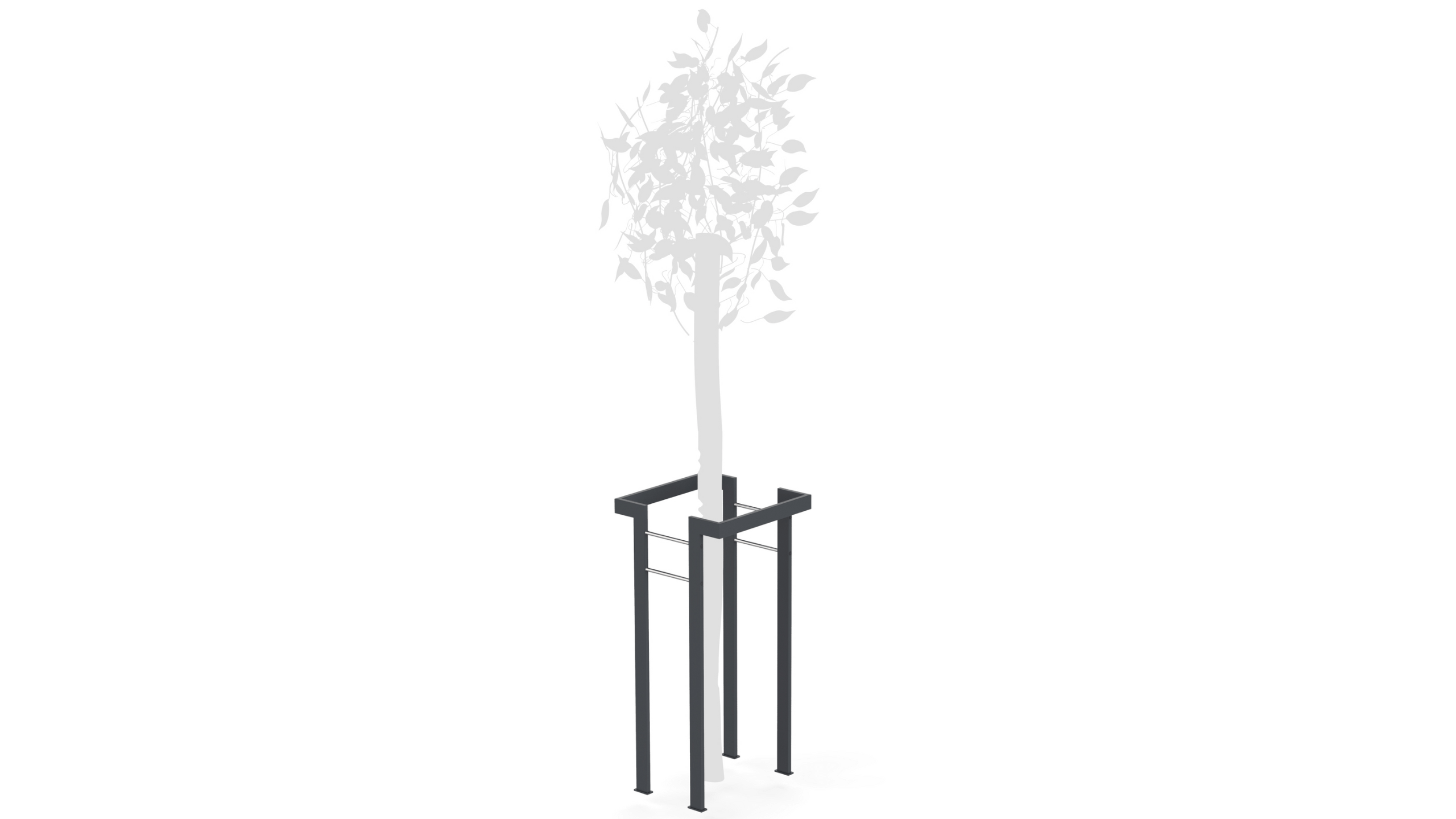

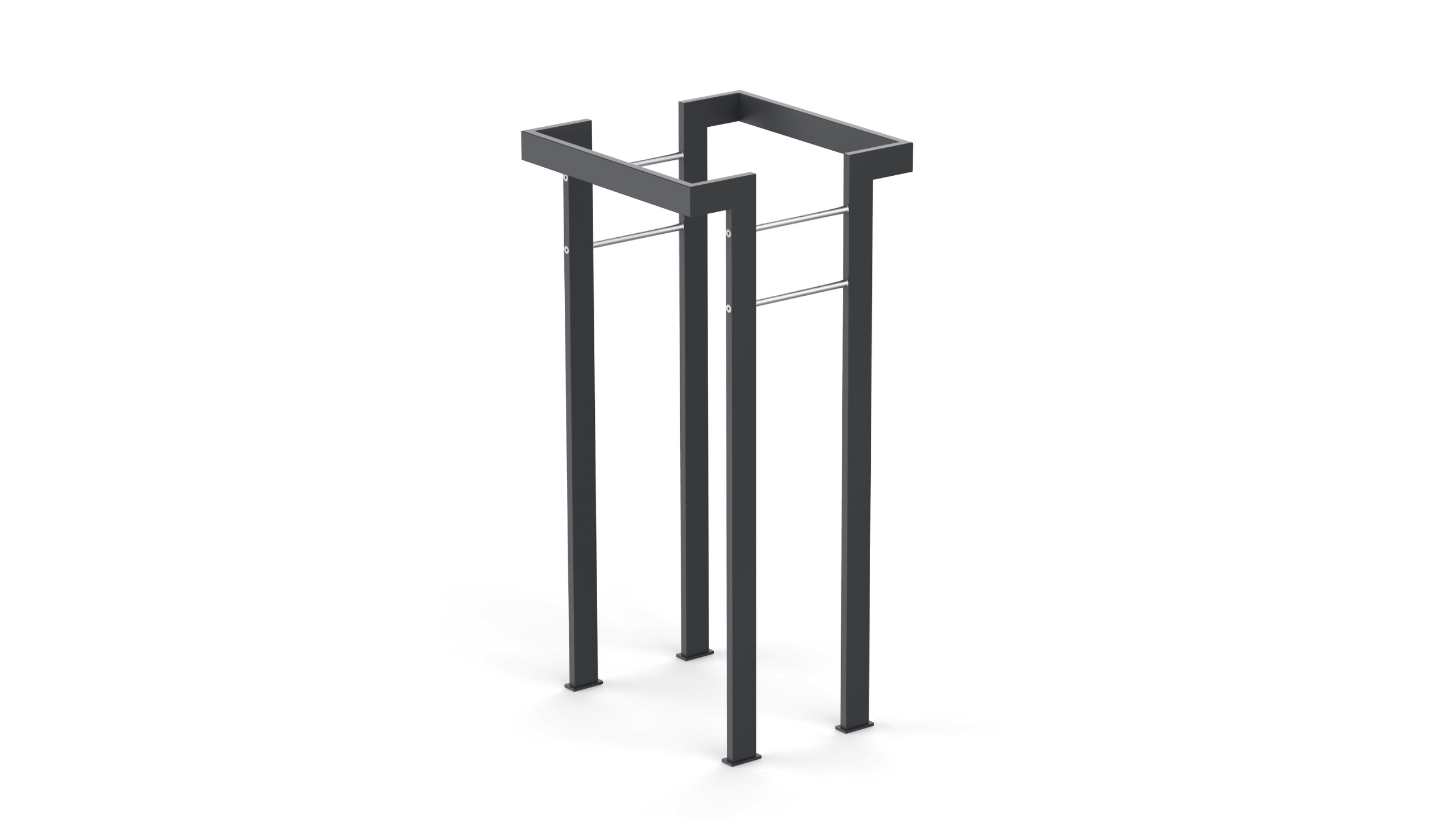

Trunk Guard 18101 is designed to protect trees and simultaneously serve as a bicycle parking stand, ensuring that valuable urban space is used efficiently.

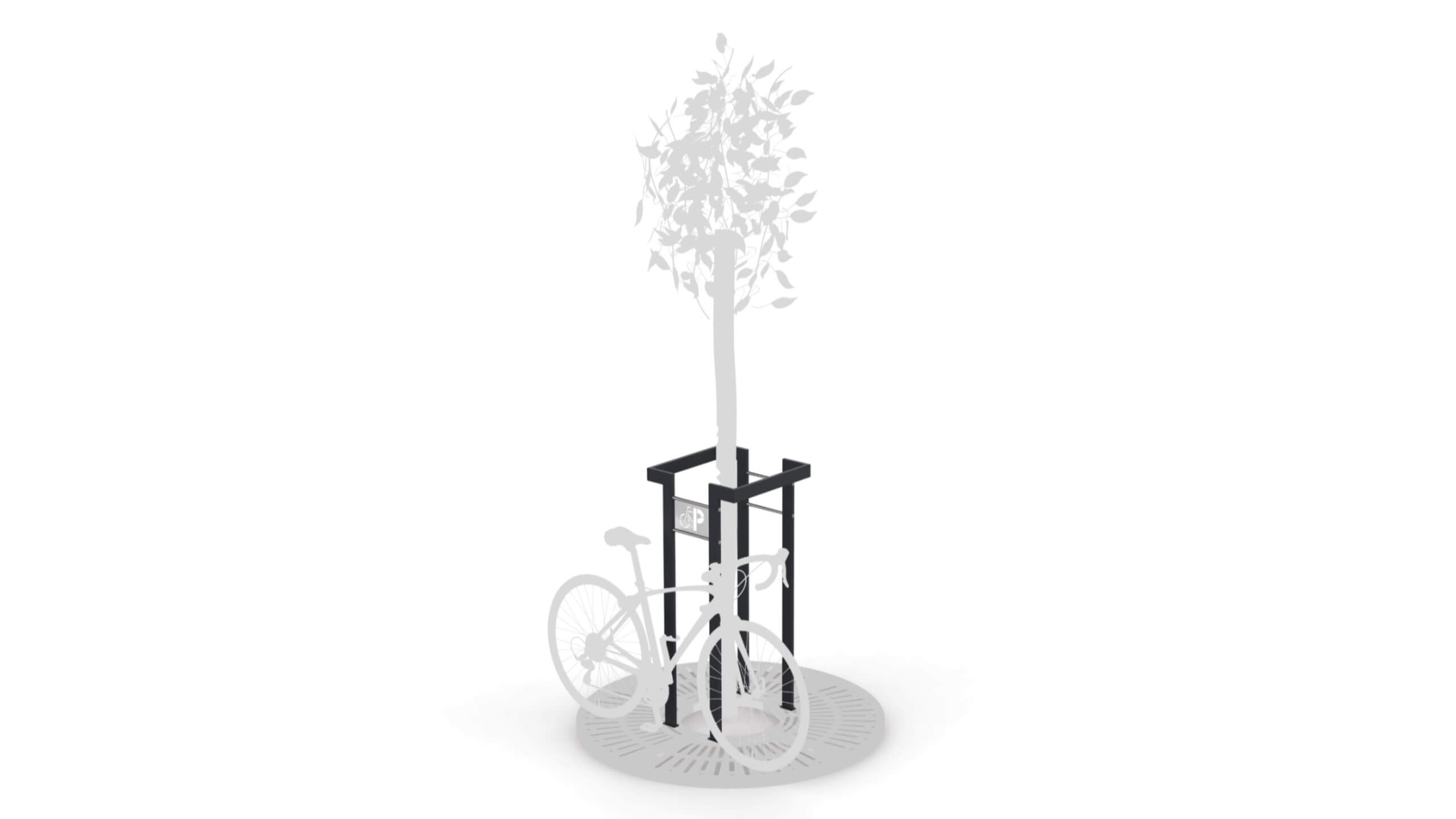

The guard protects the tree bark from damage caused by bicycle frames or locks while encouraging cyclists to securely park their bikes at the tree, thanks to prominently displayed parking symbol on the trunk guard.
Features
- 2-in-1 functions: tree protection and bike rack,

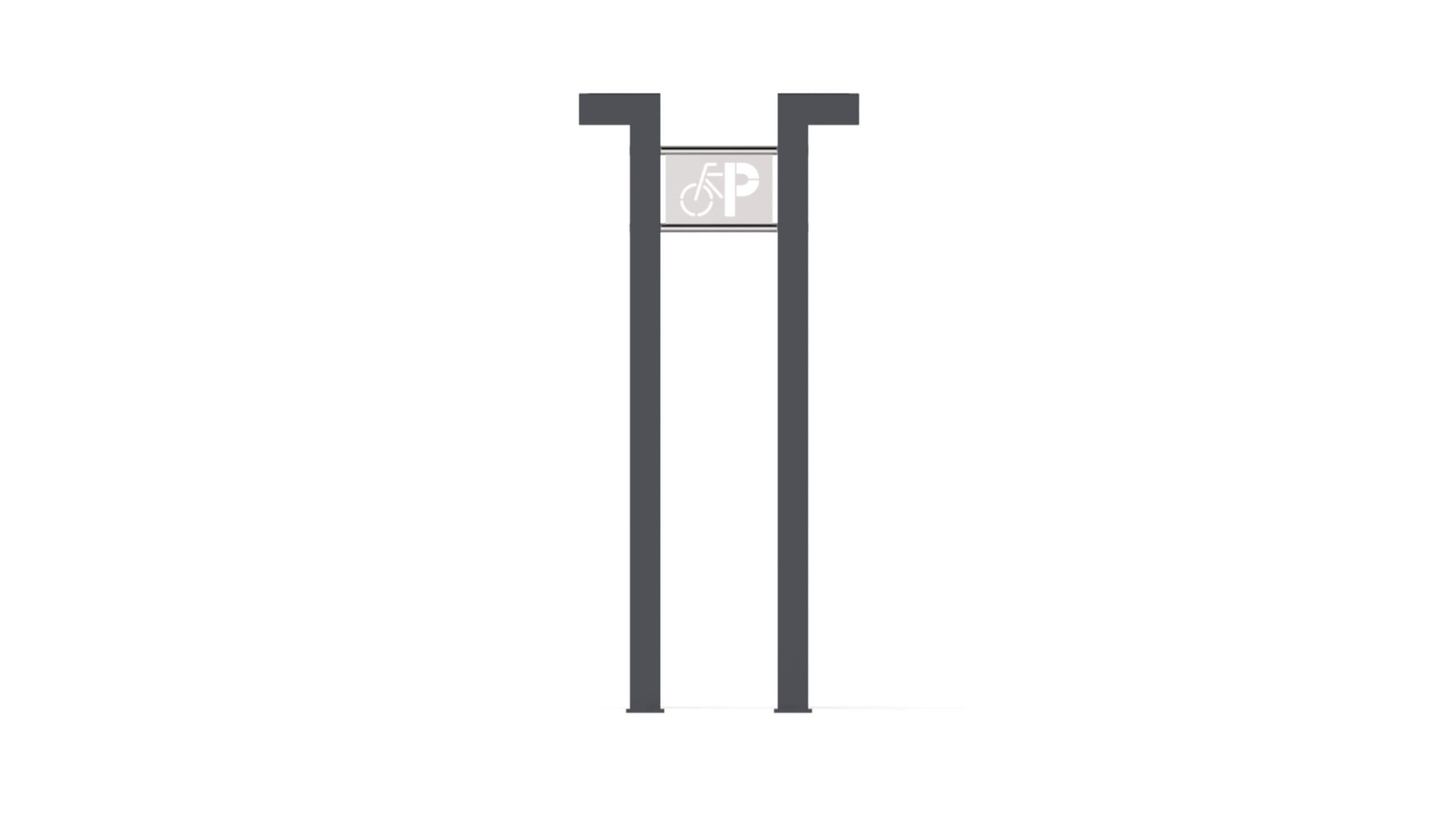

- Parking sign to easily recognize a parking spot,
- 3 sizes of 50/60/70 cm,
- Adapted for mounting to the root protectors.
Mounting options
- Attached to root guards 17100 and 17200 series with the corresponding hole,
- Attached to screw piles,
- Anchored to a concrete footing.
Specs

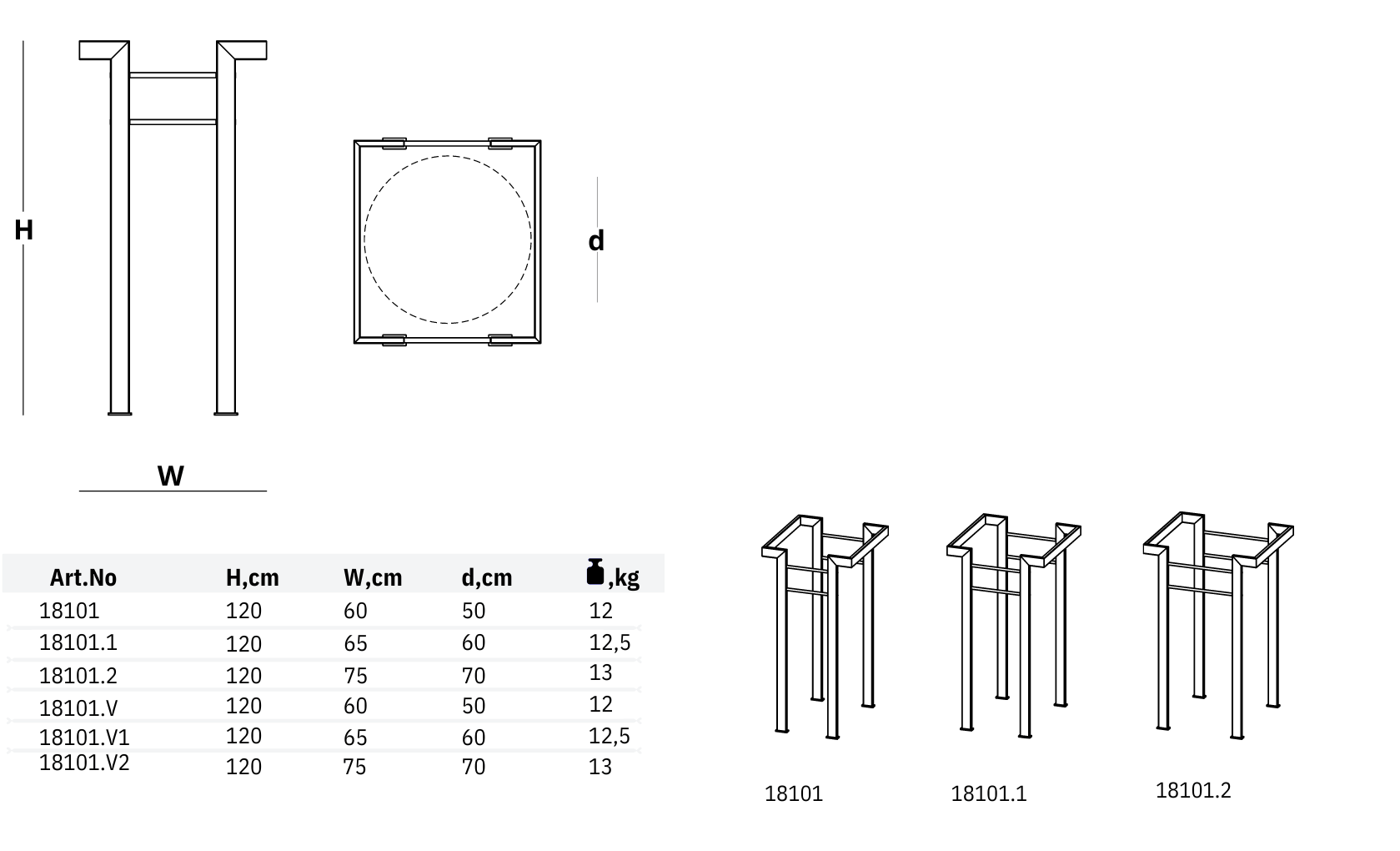

| DIMENSIONS, cm | •60(W) x 120(H) x 50 (d) – For Art.No 18101; 18101.V •65(W) x 120(H) x 60 (d) – For Art.No 1801.1; 18101.V1 •75(W) x 120(H) x 70 (d) – For Art.No 18101.2; 18101.V2  |
| WEIGHT, kg | •12 – For Art.No 18101; 18101.V •12,5 – For Art.No 18101.1; 18101.V1 •13 – For Art.No 18101.2; 18101.V2 |
| MATERIAL | For frame: • Carbon steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted |
| COMPONENTS | Stainless steel connectors and stainless steel Parking Sign |
| QTY ON PALLET | 10 units on Pallet 80×200 cm |
Installation
Tree Guard/Bike Rack Installation:
- Prepare the foundation by leveling the surface and ensuring a stable, compacted base for installation.
- Position the Tree Guard around the tree trunk, maintaining the required clearance between the tree and the frame construction.
- Assemble the guard sections using screws and nuts, ensuring a firm and stable connection.
- Verify that the guard is level and does not restrict the tree’s natural growth.
- If necessary, secure the guard to the concrete base or paving with anchor bolts.
MAINTENANCE
Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
- Materials and finishes used for the Product
- Influence of environmental conditions on urban furniture
- Care and maintenance
- The expected lifecycle
