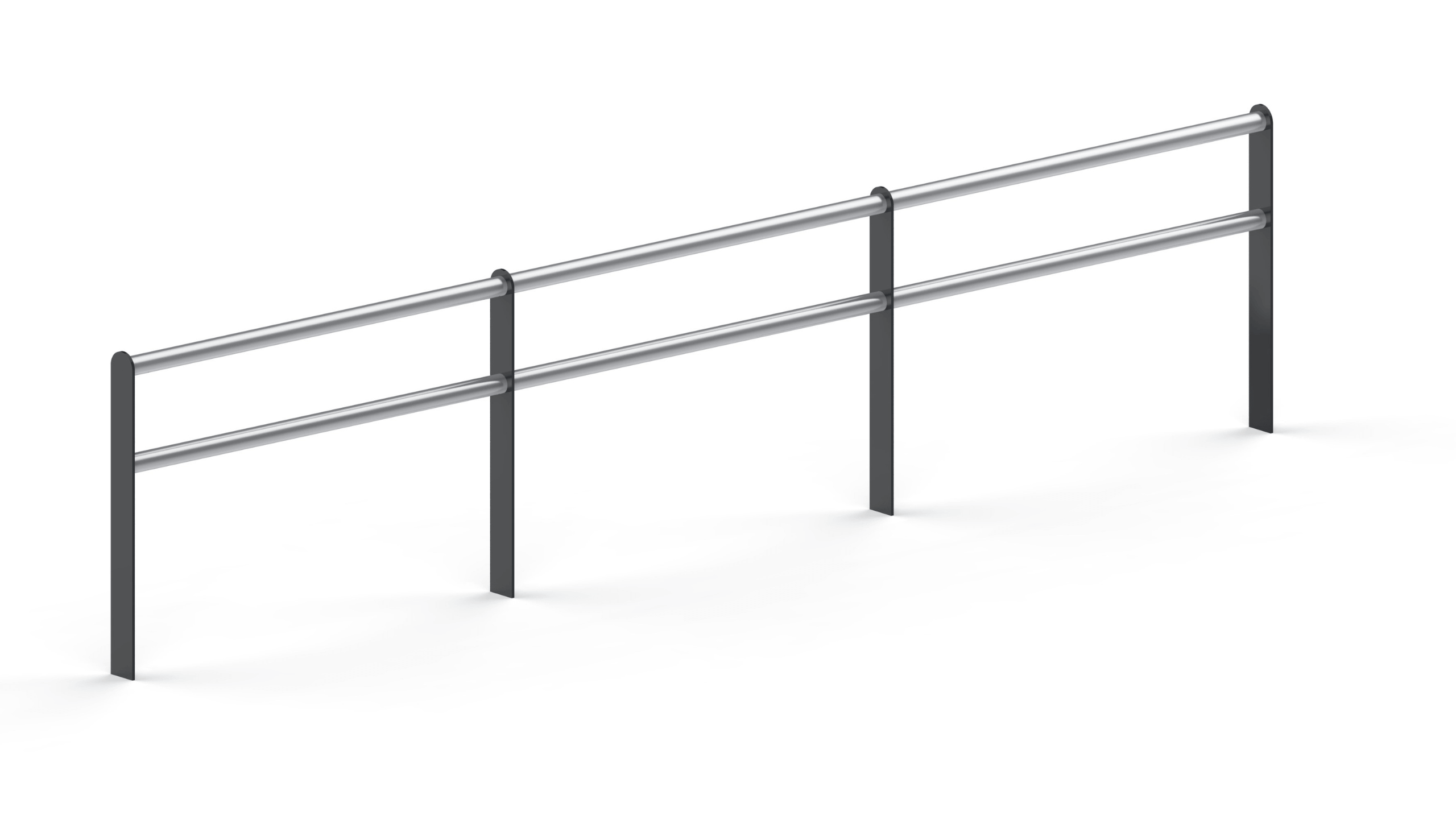

bike lane barrier from steel

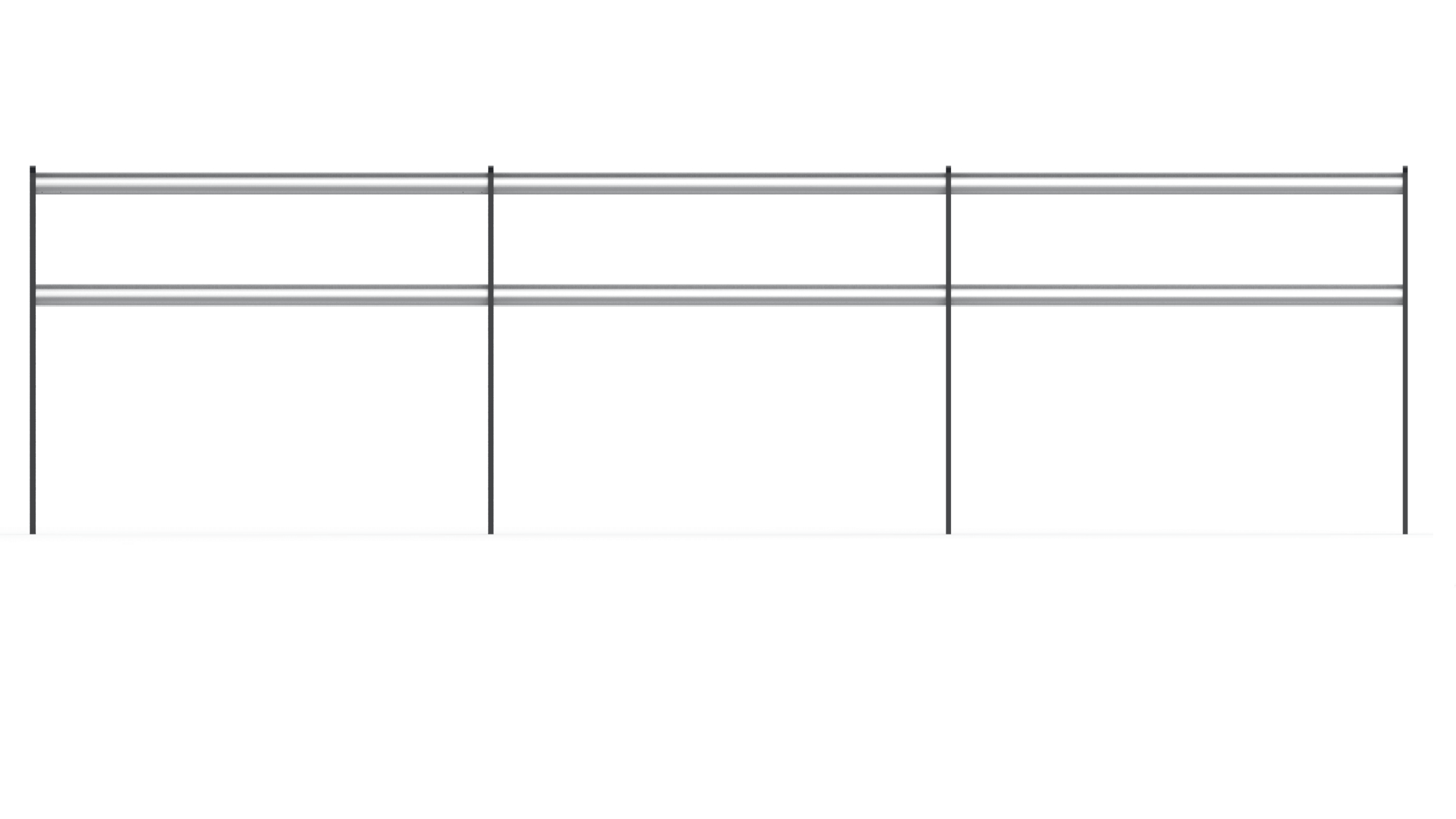

bike lane safety barrier from steel

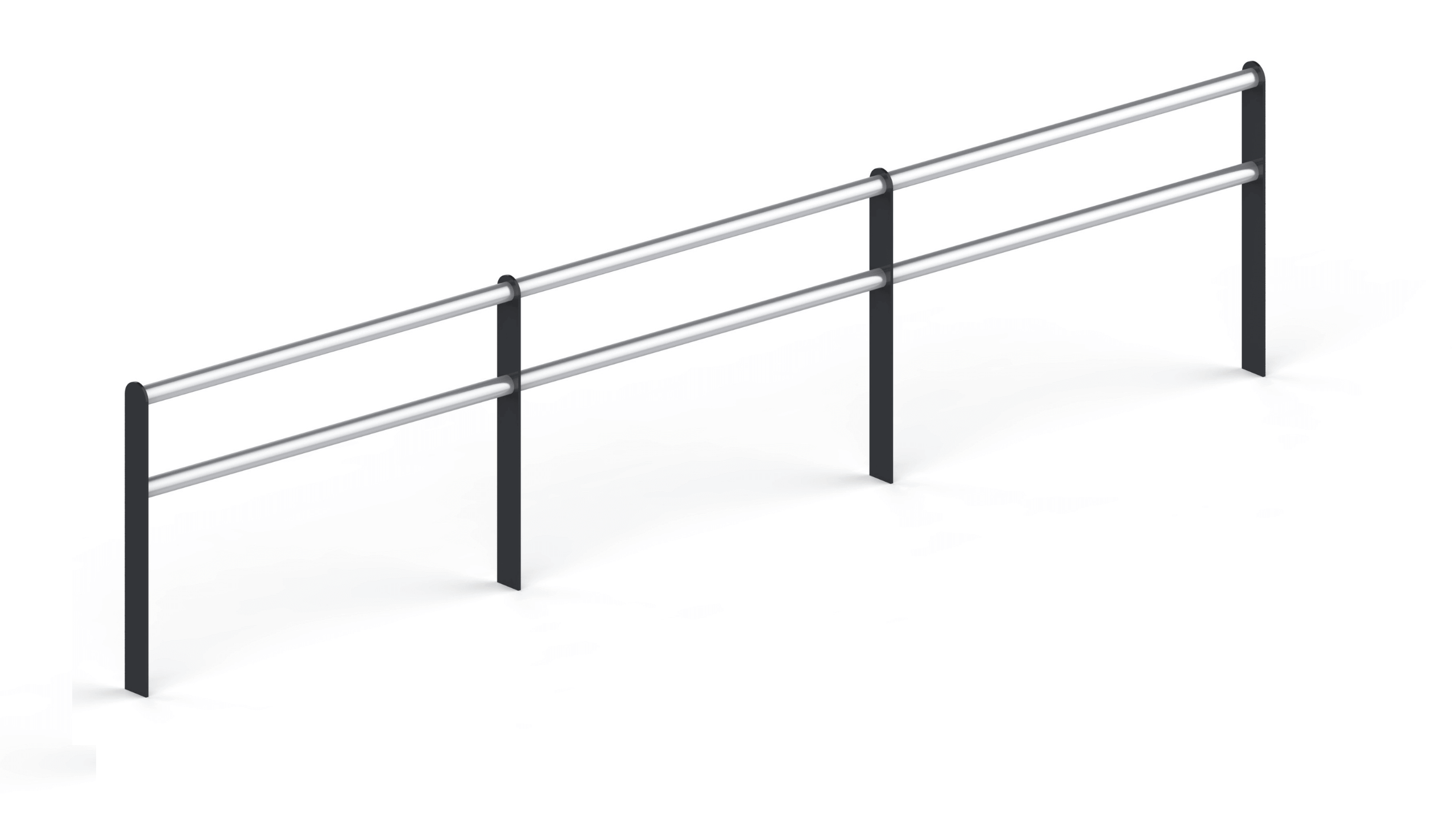

cycle line barrier from steel
pavement barrier from steel
guardrails different heights from steel

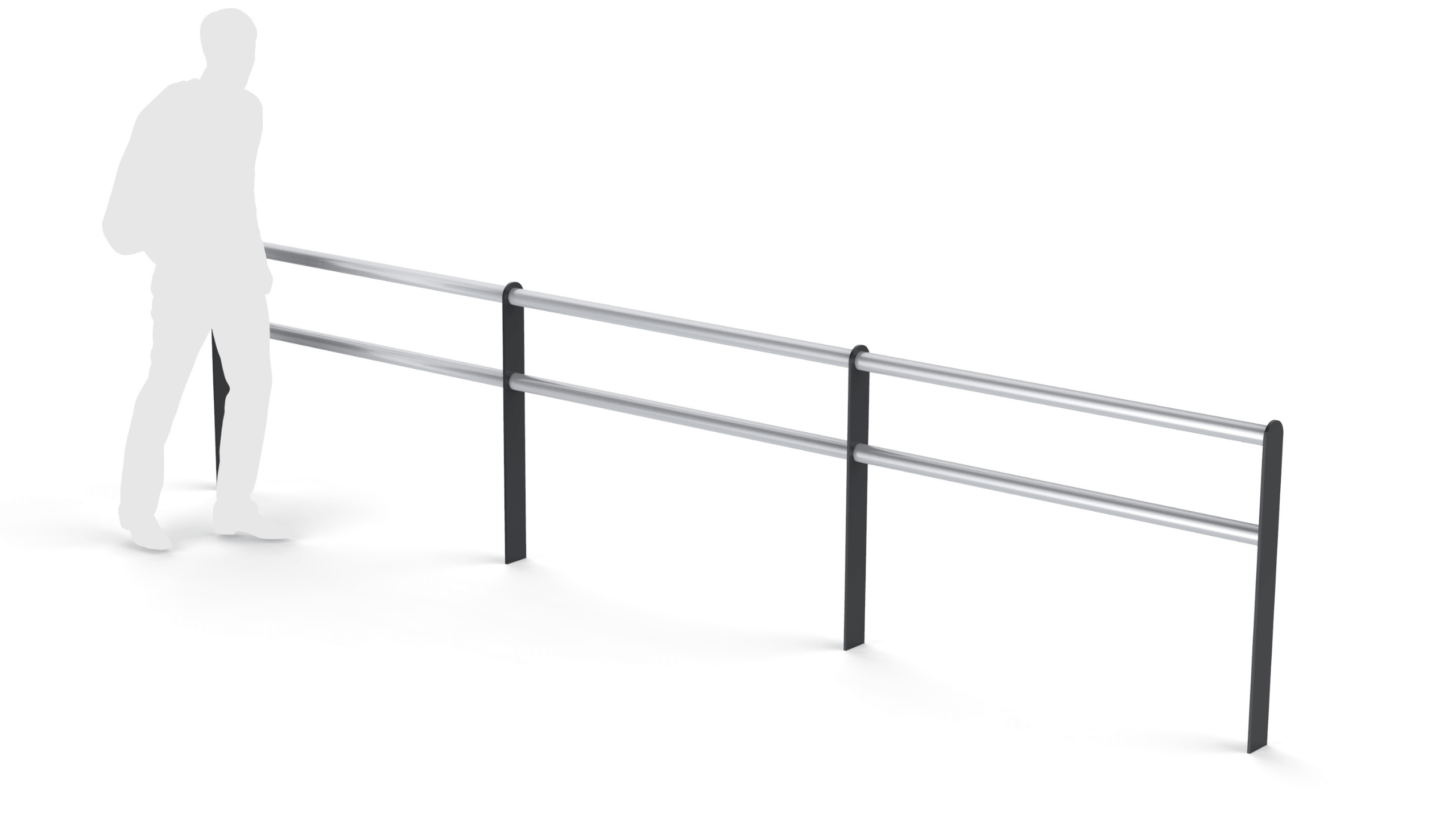

metal barriers sidewalk separation barriers

Barrier 22101.PROTECT

€130.00 excl. VAT




SKU: 22101.PROTECT Category: Tags: ,

Additional information

Height, cm

100, 130

Material & finish

Carbon steel galvanized & painted

Description

Robust & Reliable

Barrier 22101.PROTECT is a sturdier version of the 22101 series, designed to provide enhanced safety and durability in areas with light to medium traffic. While maintaining the same sleek and modern design as the 22101.LITE, this version is built with reinforced materials to withstand higher impact and ensure long-term reliability in more demanding environments.

Features

  • Contemporary Design: A simple yet modern look, featuring a stainless steel handrail (tube D60 mm) for a polished and professional appearance.
  • Reinforced Construction: Supporting posts are made from flat bars (10×100 mm), providing increased strength and stability for areas with light to medium traffic.
  • Modular Structure: Designed with a pitch of 1.5 meters, allowing for flexible configurations to suit various spaces.
  • Easy Installation: Requires only basic hand tools, ensuring quick and hassle-free setup.

Options

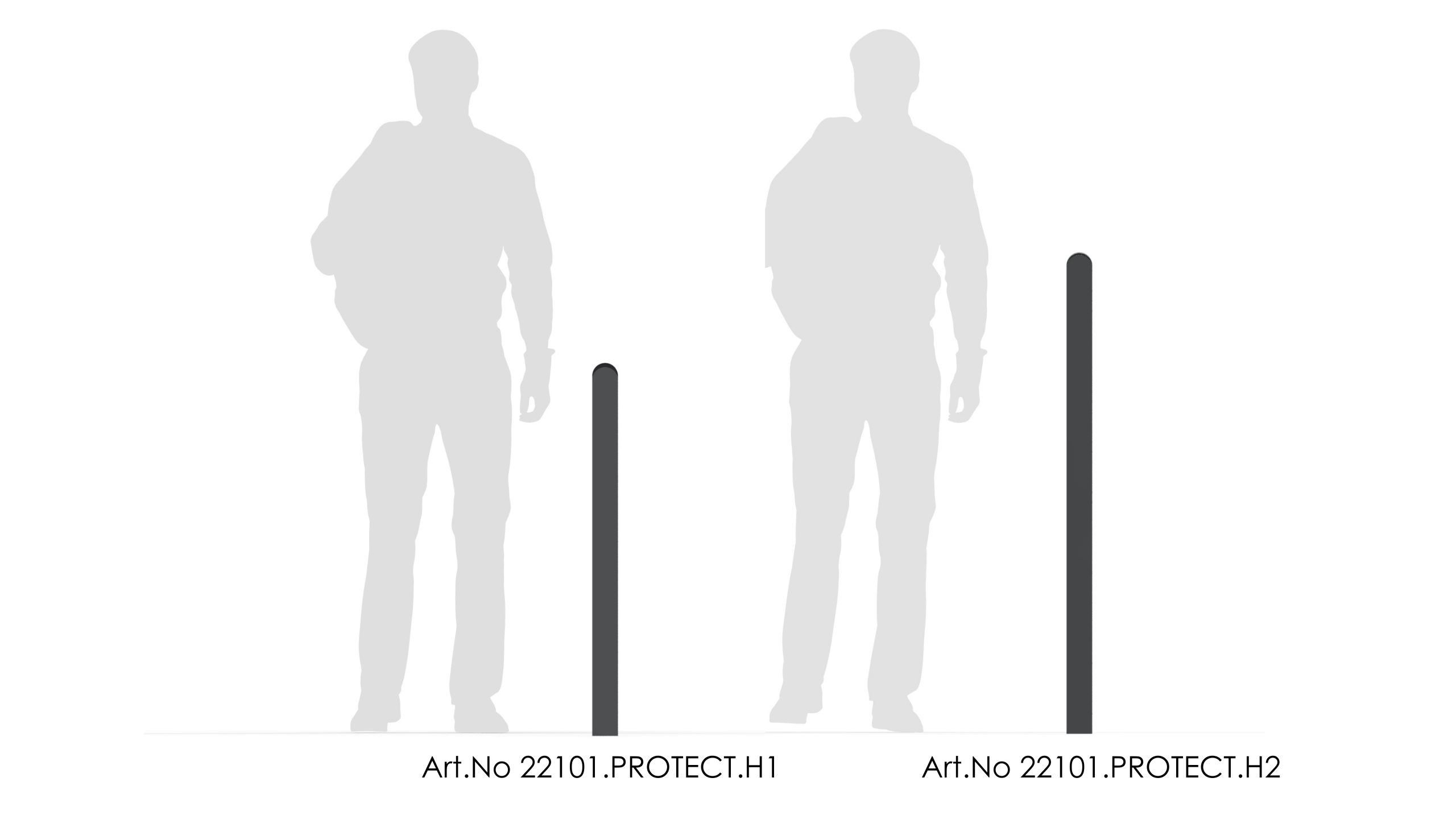

  • Height Variations:
    • 100 cm with 2 horizontal bars for standard applications.

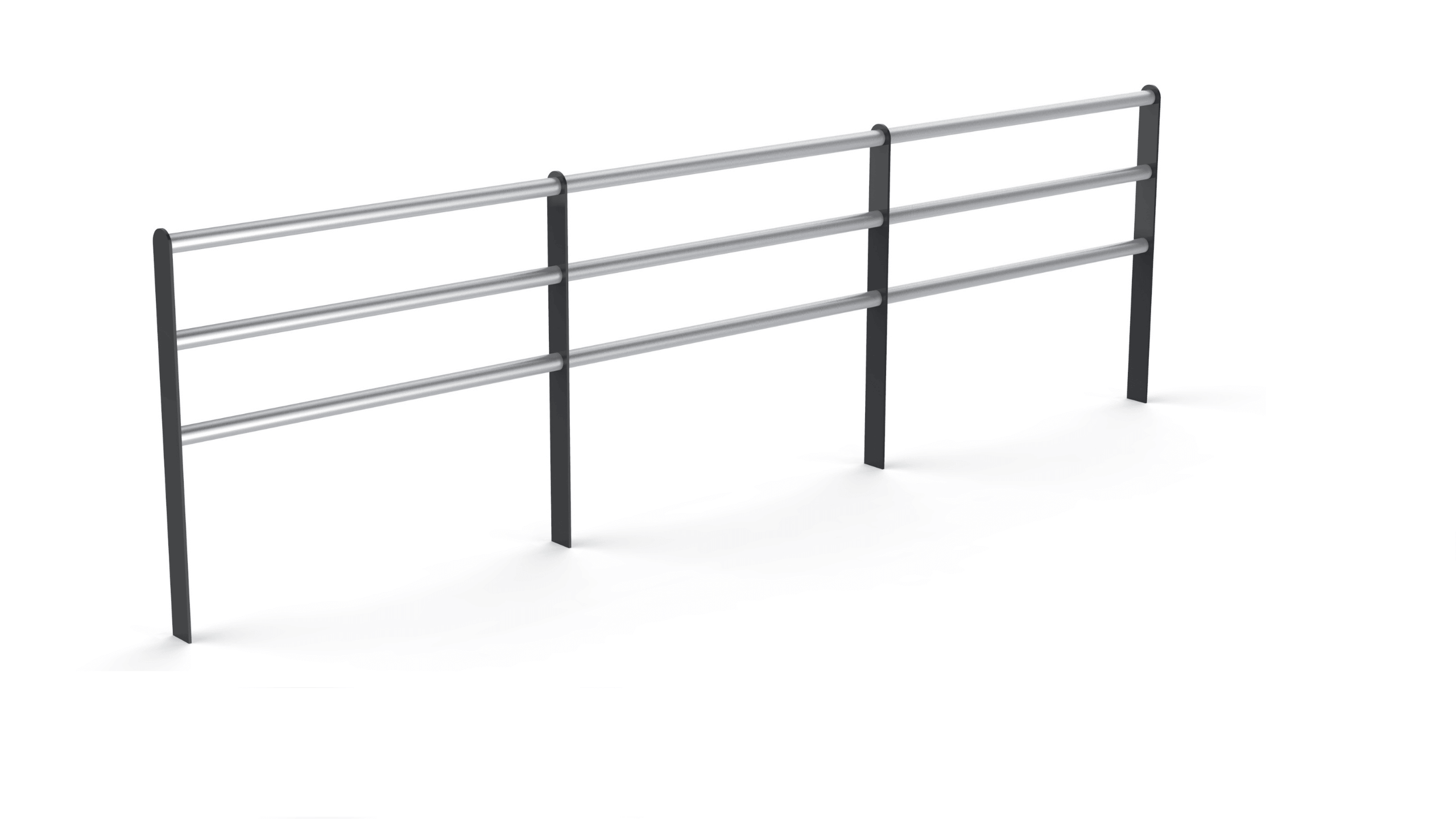

    • 130 cm with 3 horizontal bars for improved safety and to prevent climbing.

Applications

  • Ideal for areas with light to medium traffic, such as parking lots, pedestrian crossings, and low-traffic streets.
  • Provides a reliable boundary for separating vehicle and pedestrian zones while maintaining a visually appealing design.

SPECS

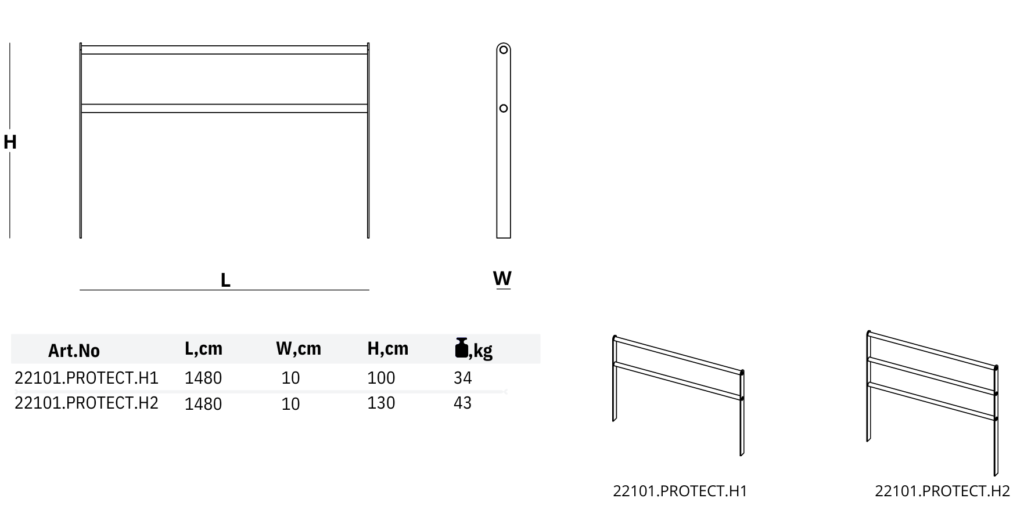

DIMENSIONS, cm• 10(W) x 1480(L) x 100 (H) – For Art.No 22101.PROTECT.H1
• 10(W) x 1480(L) x 130 (H) – For Art.No 22101.PROTECT.H222101 PROTECT sidewalk barrier dimensions
WEIGHT, kg• 34 – For Art.No 22101.PROTECT.H1
• 43 – For Art.No 22101.PROTECT.H2
MATERIALFor frame:
• Carbon steel
For pipes:
• Stainless steel
more about Materials
FINISHFor Carbon steel:
• Hot dip galvanized or
• Hot dip galvanized and painted
COMPONENTSStainless steel A2 screws
QTY ON PALLET10 units on Pallet 80×200 cm

INSTALLATION

The barrier 22101.PROTECT is ready for installation; it has mounting holes for anchoring in the ground.

Mounting  method

The barrier’s default mounting method is on-ground. Please refer to the Installation Instructions.

If sub-surface fastening is needed, we will modify the steel framework appropriately. Longer lead time and possible additional charges may apply.

Anchors

The barrier does not include anchors.

Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials.

ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.

The package includes:

  • A barrier, assembled and ready to install – 1 pc.
  • QR code labels linking to the Installation and Maintenance Instructions.
  • A Packing list.

MAINTENANCE
