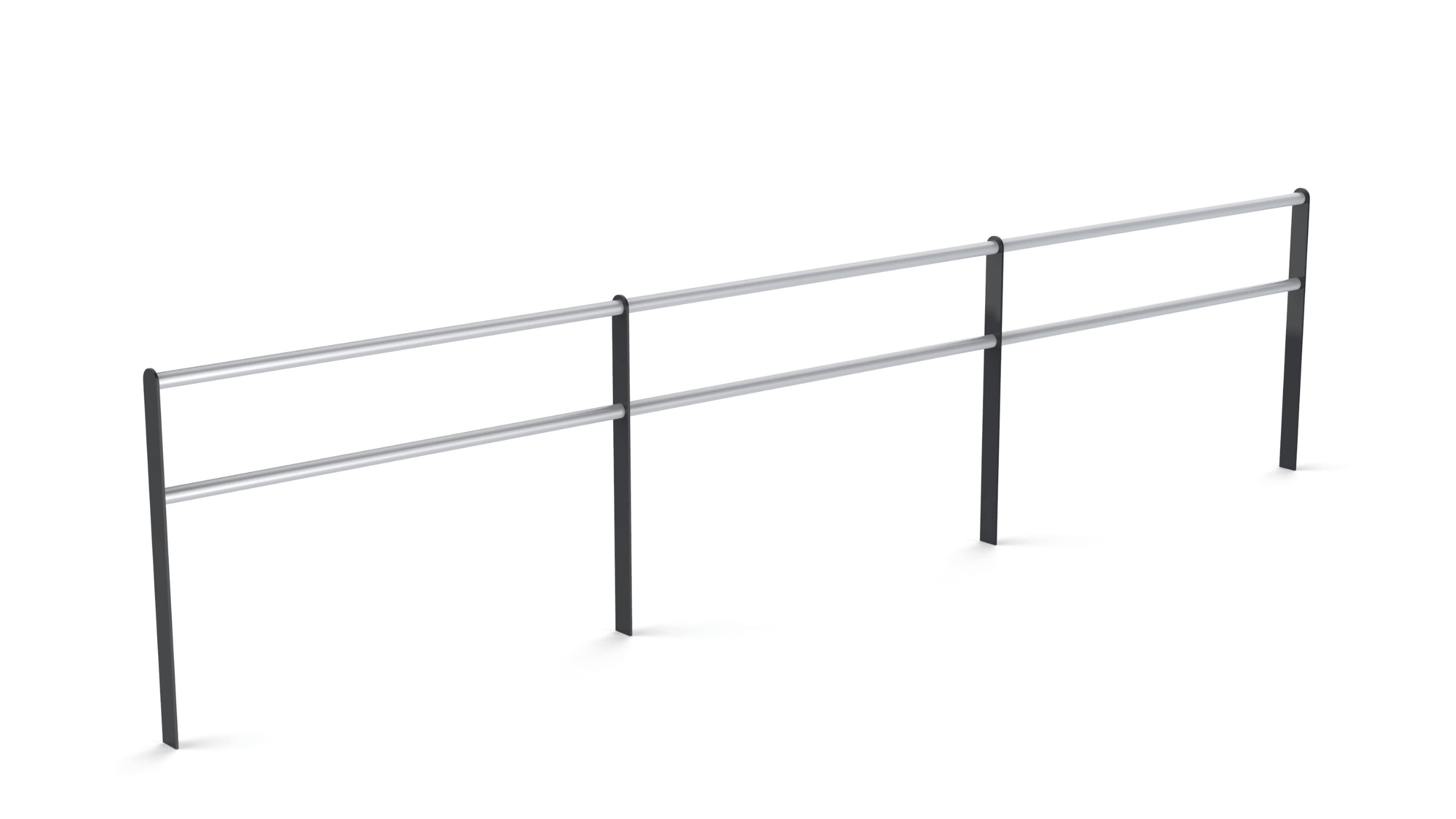

sidewalk barrier from steel

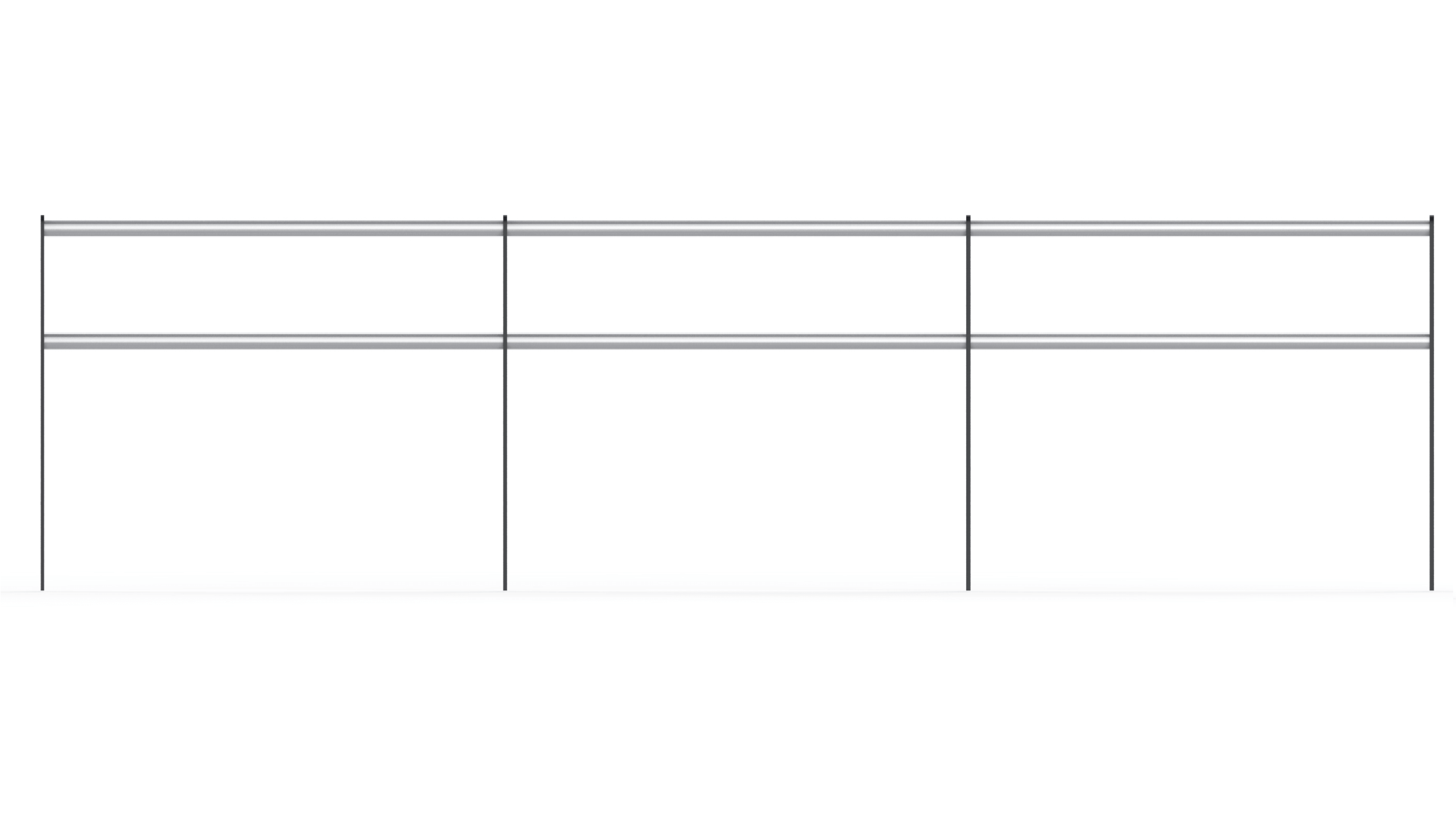

bike lane safety barrier counter view

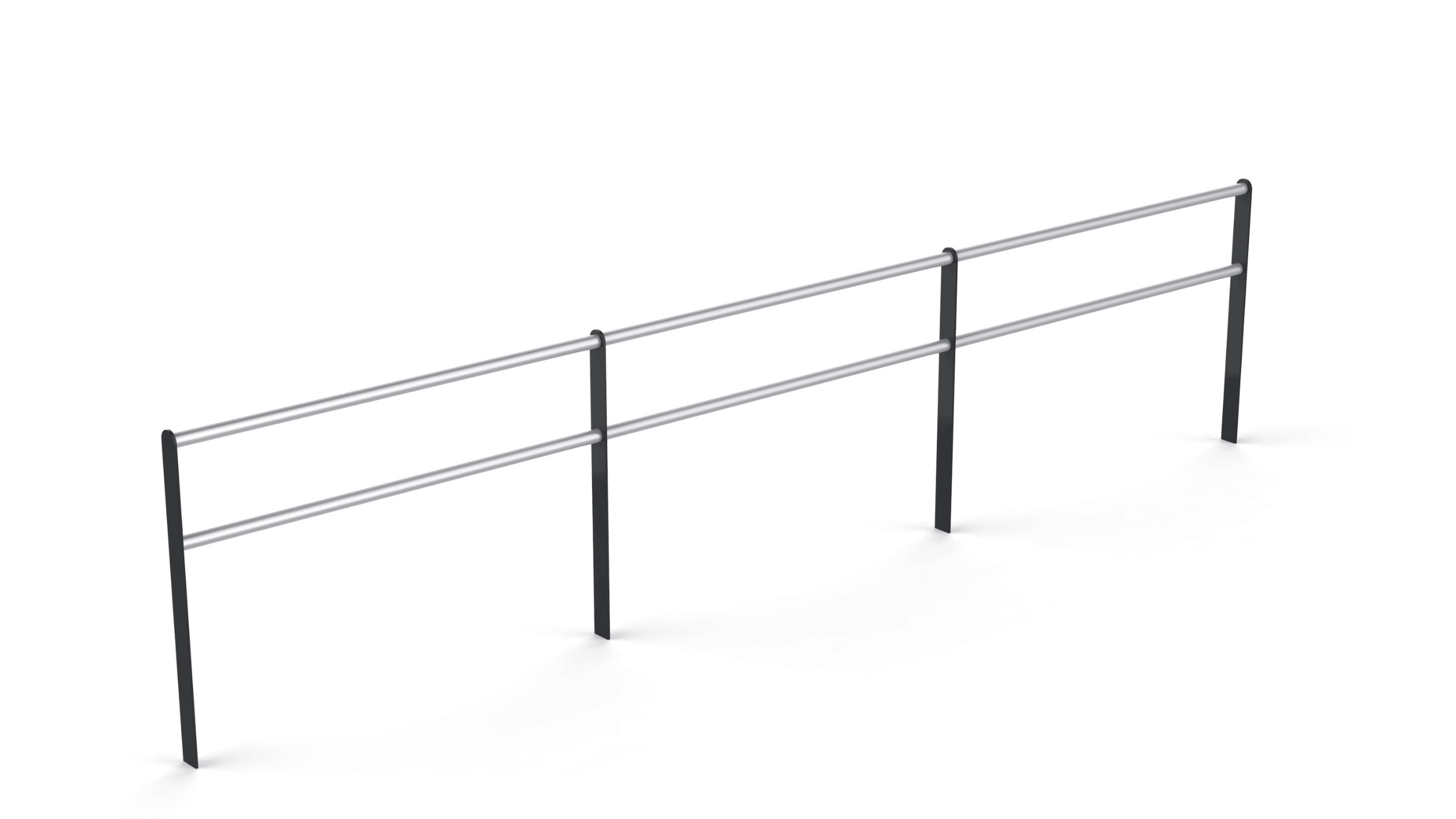

pedestrian barrier from steel
pedestrian walkway barrier from steel

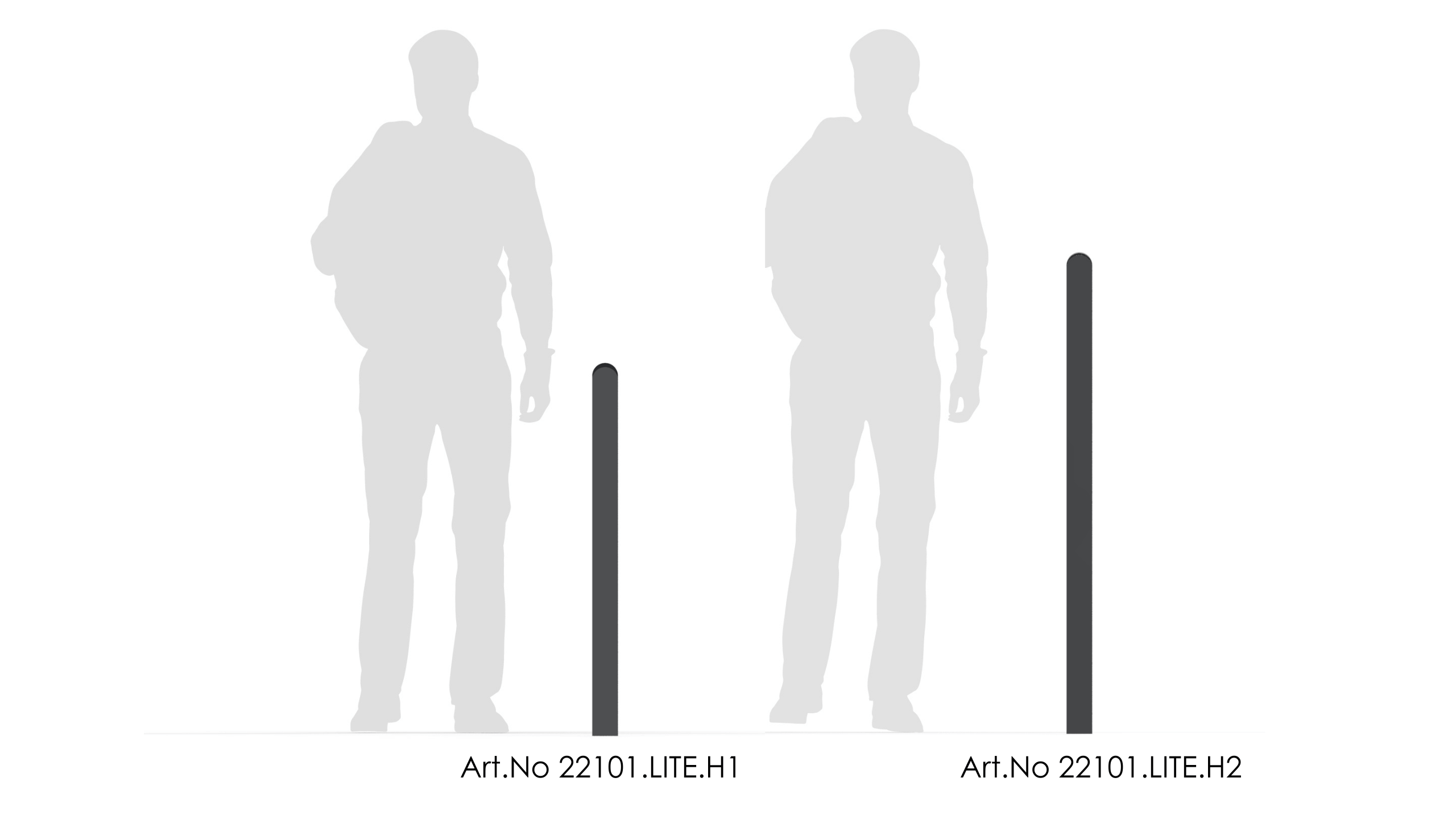

sidewalk separation barrier different heights

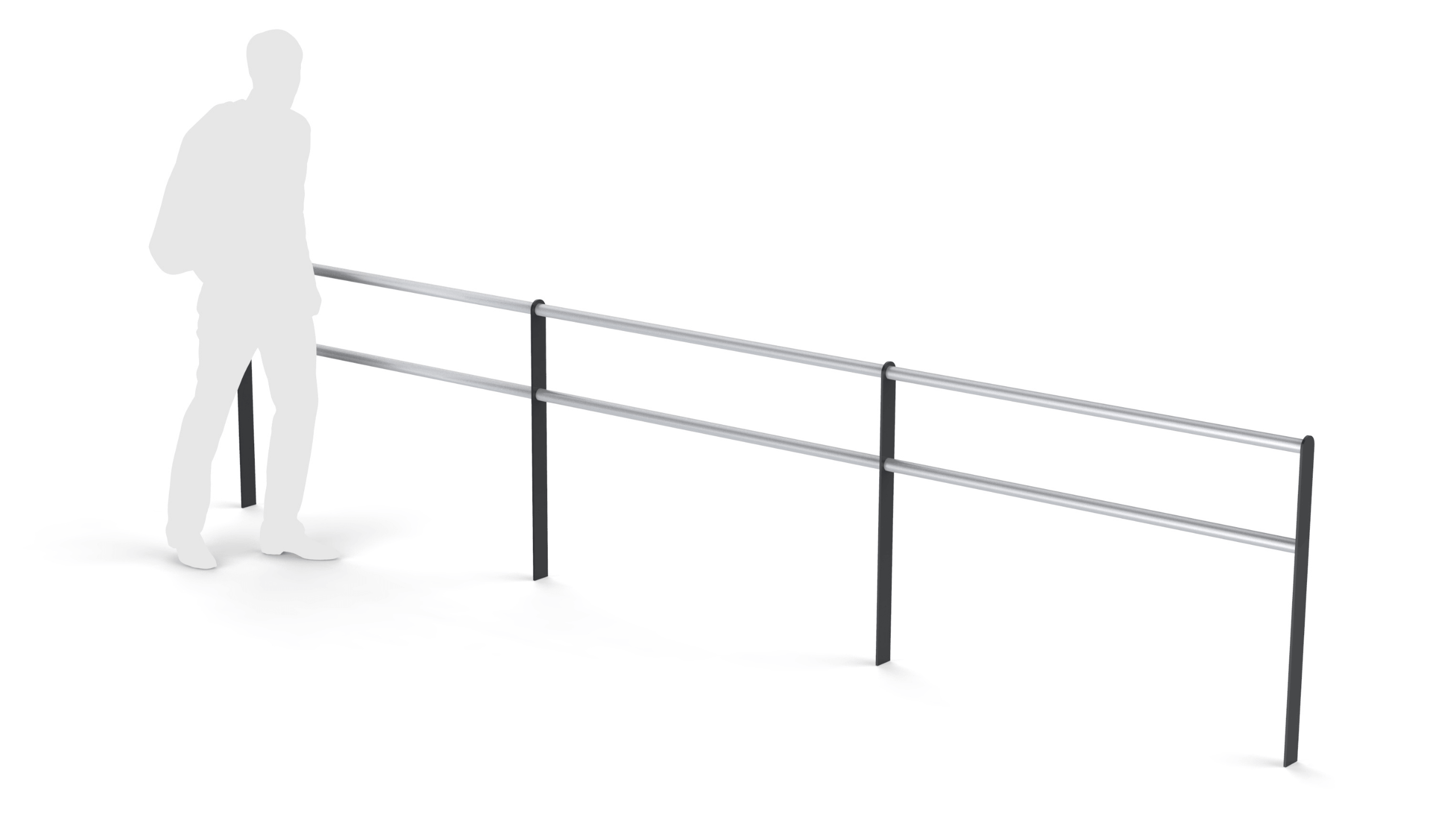

metal barrier for pedestrian traffic control

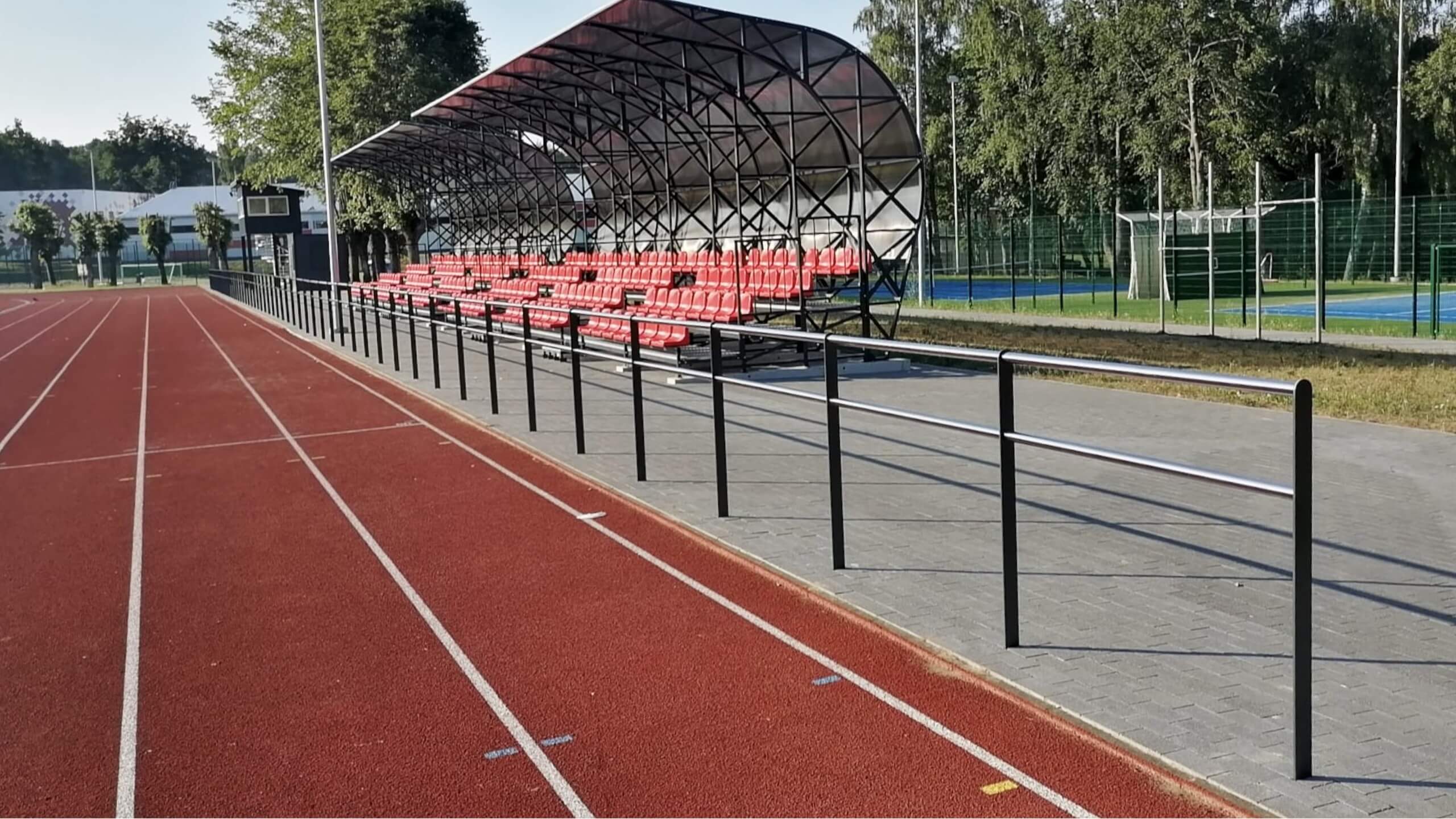

separation barrier in sport stadium

Barrier 22101.LITE

€115.00 excl. VAT




SKU: 22101.LITE Category: Tags: ,

Additional information

Height, cm

100, 130

Material & finish

Carbon steel galvanized & painted

Description

Simple & Functional

Barrier 22101.LITE is a versatile and modern solution for delineating pedestrian pathways and public spaces. Its sleek design, combined with durable materials, makes it an ideal choice for sports grounds, sidewalks, and other urban environments where safety and aesthetics are equally important.

Features

  • Contemporary Design: A simple yet modern look, enhanced by a stainless steel handrail (tube D42 mm), ensuring both functionality and visual appeal.Modular Structure: Designed with a pitch of 1.5 meters, allowing for flexible configurations to suit various spaces.
  • Easy Installation: Requires only basic hand tools, making setup quick and hassle-free
  • Durable Construction: Supporting posts are made from flat bars (8×70 mm), ensuring stability and longevity in public spaces.

Options

  • Light Version Barrier 22101.LITE: Perfect for sports grounds, sidewalks, and pedestrian pathways.
  • Heavy-Duty Version Barrier 22101.PROTECT: Designed for areas with medium to low traffic, offering enhanced safety and durability.
  • Height Variations:
    • 100 cm with 2 horizontal bars for standard applications.

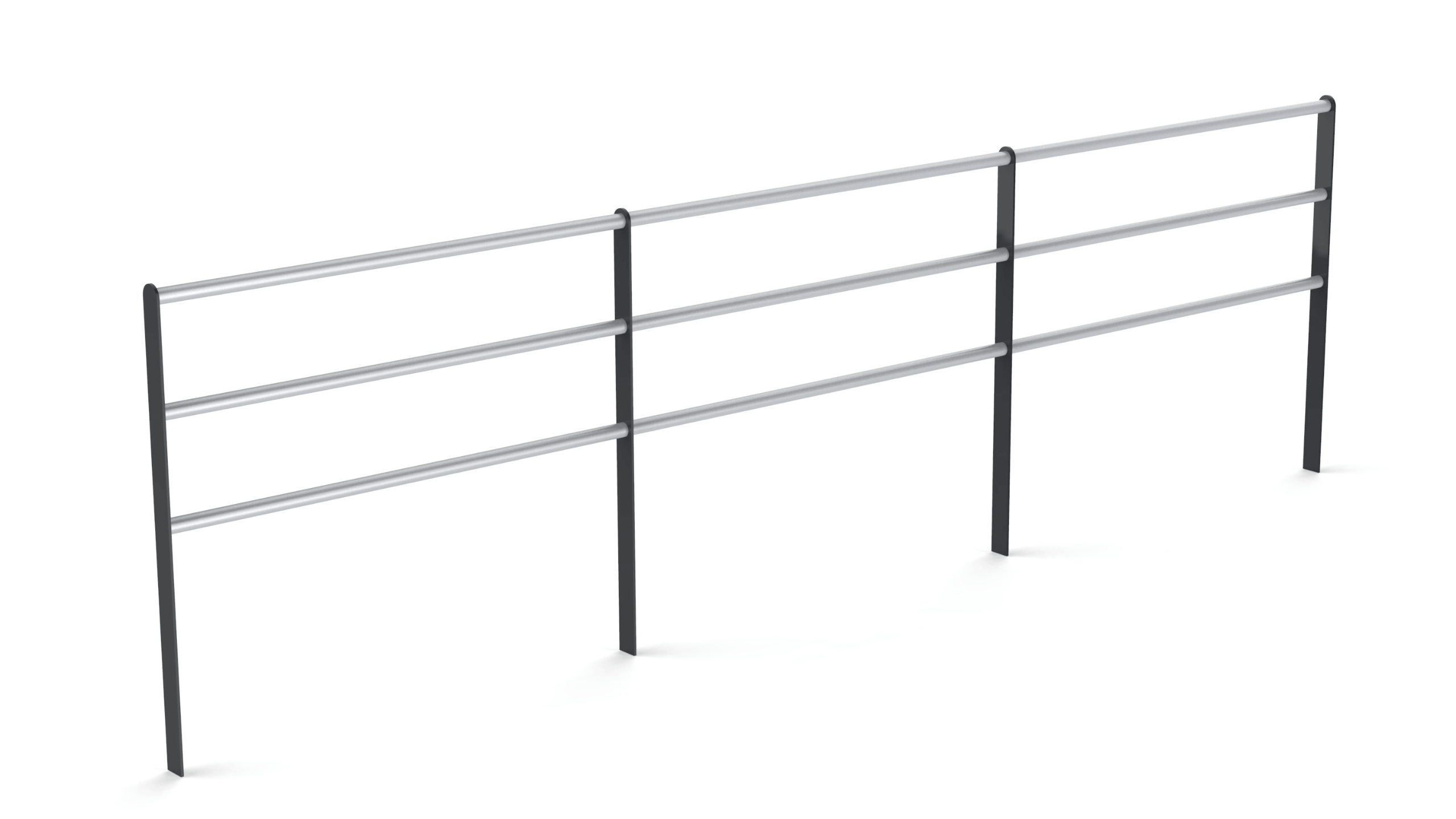

    • 130 cm with 3 horizontal bars for improved safety and to prevent climbing.

Applications

  • Ideal for public spaces, sports grounds, and pedestrian pathways.
  • The Barrier 22101.LITE version is not intended for traffic separation but provides an elegant and functional boundary for walkways.
  • The Barrier 22101.PROTECT version is suitable for low to medium traffic areas, offering the correct height and structure to prevent unauthorized crossing.

SPECS

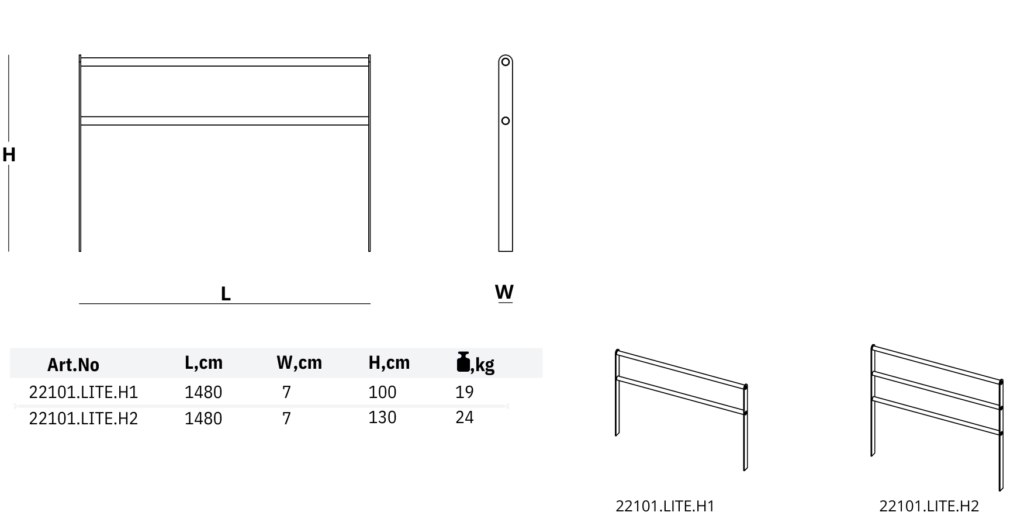

DIMENSIONS, cm• 7(W) x 1480(L) x 100 (H) – For Art.No 22101.LITE.H1
• 7(W) x 1480(L) x 130 (H) – For Art.No 22101.LITE.H2
WEIGHT, kg• 19 – For Art.No 22101.LITE.H1
• 24 – For Art.No 22101.LITE.H2
MATERIALFor frame:
• Carbon steel
For pipes:
• Stainless steel
more about Materials
FINISHFor Carbon steel:
• Hot dip galvanized or
• Hot dip galvanized and painted
COMPONENTSStainless steel A2 rivets
QTY ON PALLET10 units on Pallet 80×200 cm

INSTALLATION

The barrier 22101.LITE is ready for installation; it has mounting holes for anchoring in the ground.

Mounting  method

The barrier’s default mounting method is on-ground. Please refer to the Installation Instructions.

If sub-surface fastening is needed, we will modify the steel framework appropriately. Longer lead time and possible additional charges may apply.

Anchors

The barrier does not include anchors.

Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials.

ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.

The package includes:

  • A barrier, assembled and ready to install – 1 pc.
  • QR code labels linking to the Installation and Maintenance Instructions.
  • A Packing list.

MAINTENANCE
