Modular Bike Rack 13208
€95.00 excl. VAT
Additional information
| Material & finish | Carbon steel galvanized & painted, Stainless steel |
|---|
DESCRIPTION
Distinctive & Practice
The Modular Bike Rack’s 13208 design features straight lines and a modern minimalist look, bringing a sleek touch to urban surroundings.

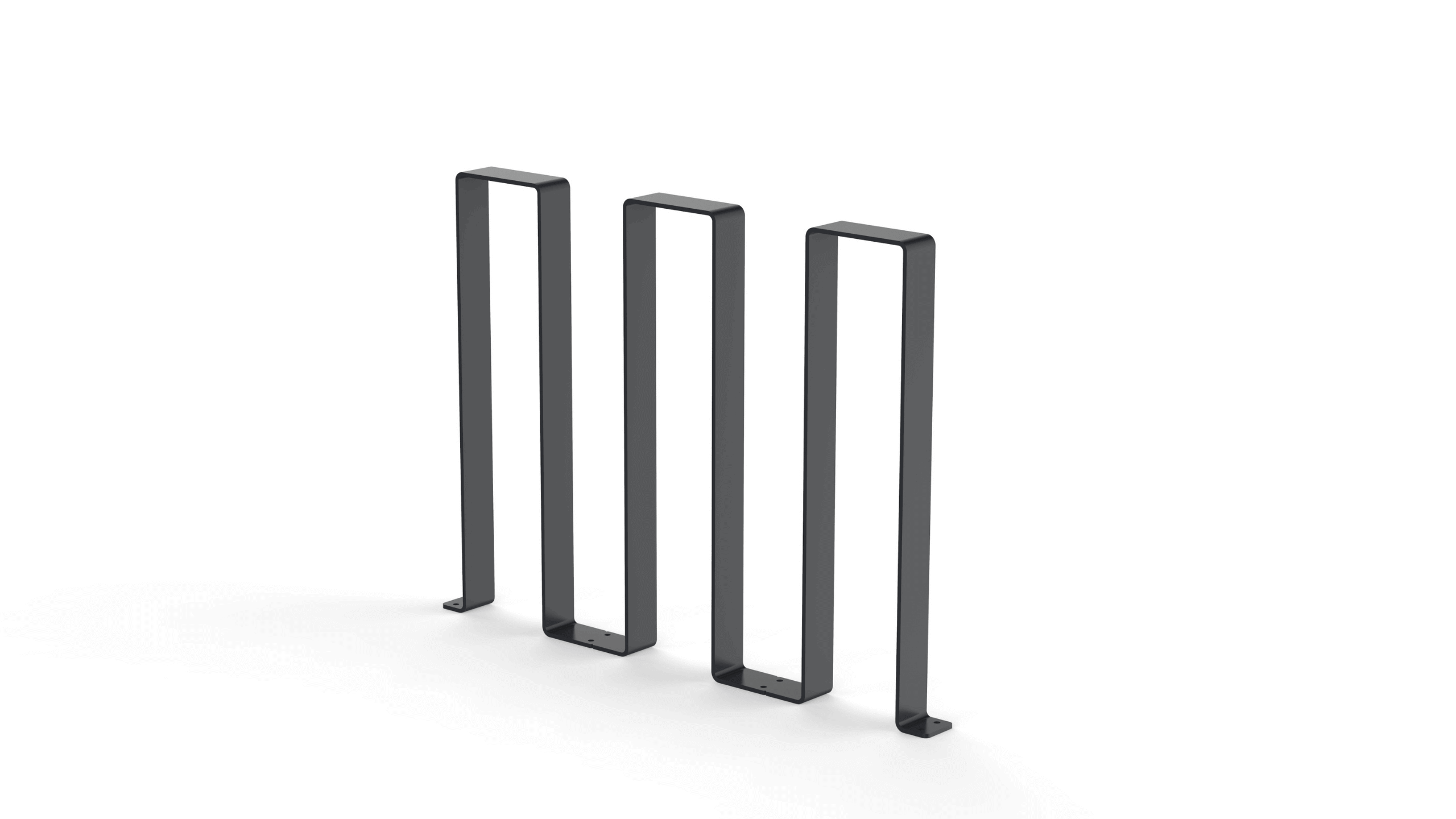

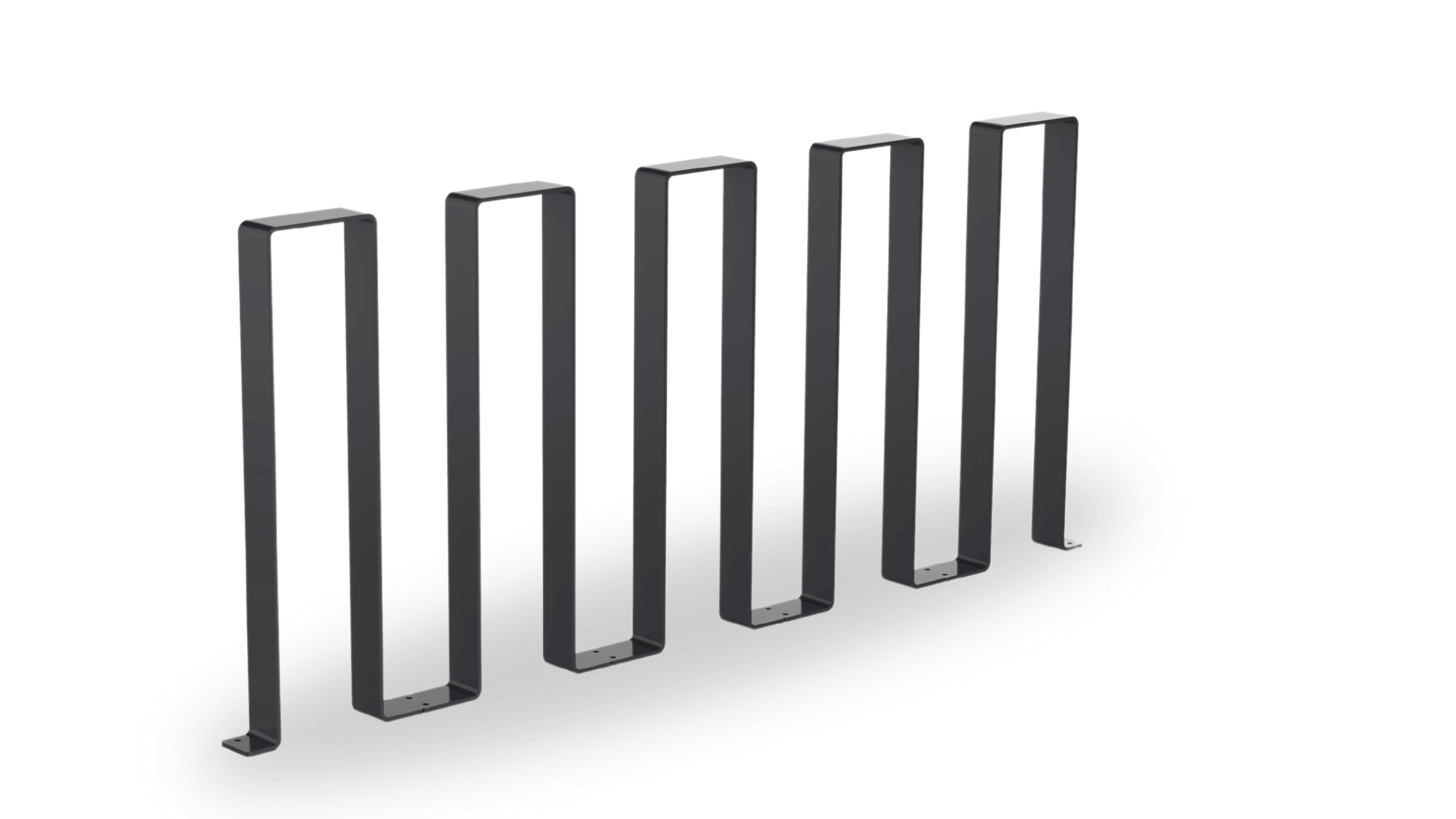

The bicycle rack consists of modules placed side by side, thus achieving the desired capacity of the bike storage. That creates a visually appealing structure with a consistent vertical rhythm.

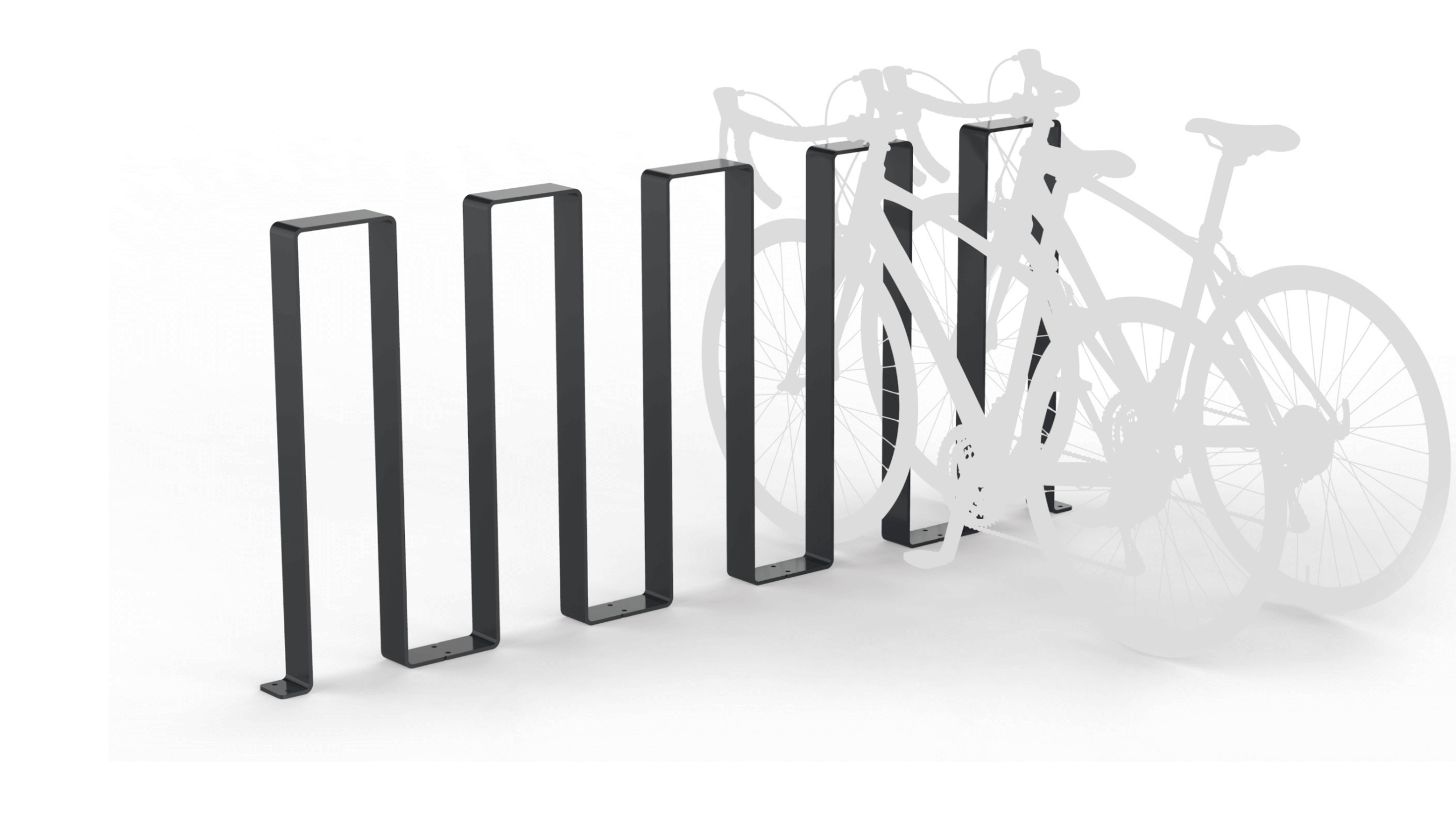

Bicycles are stored in alternate slots when parked from one side or in every slot if parked from both sides.

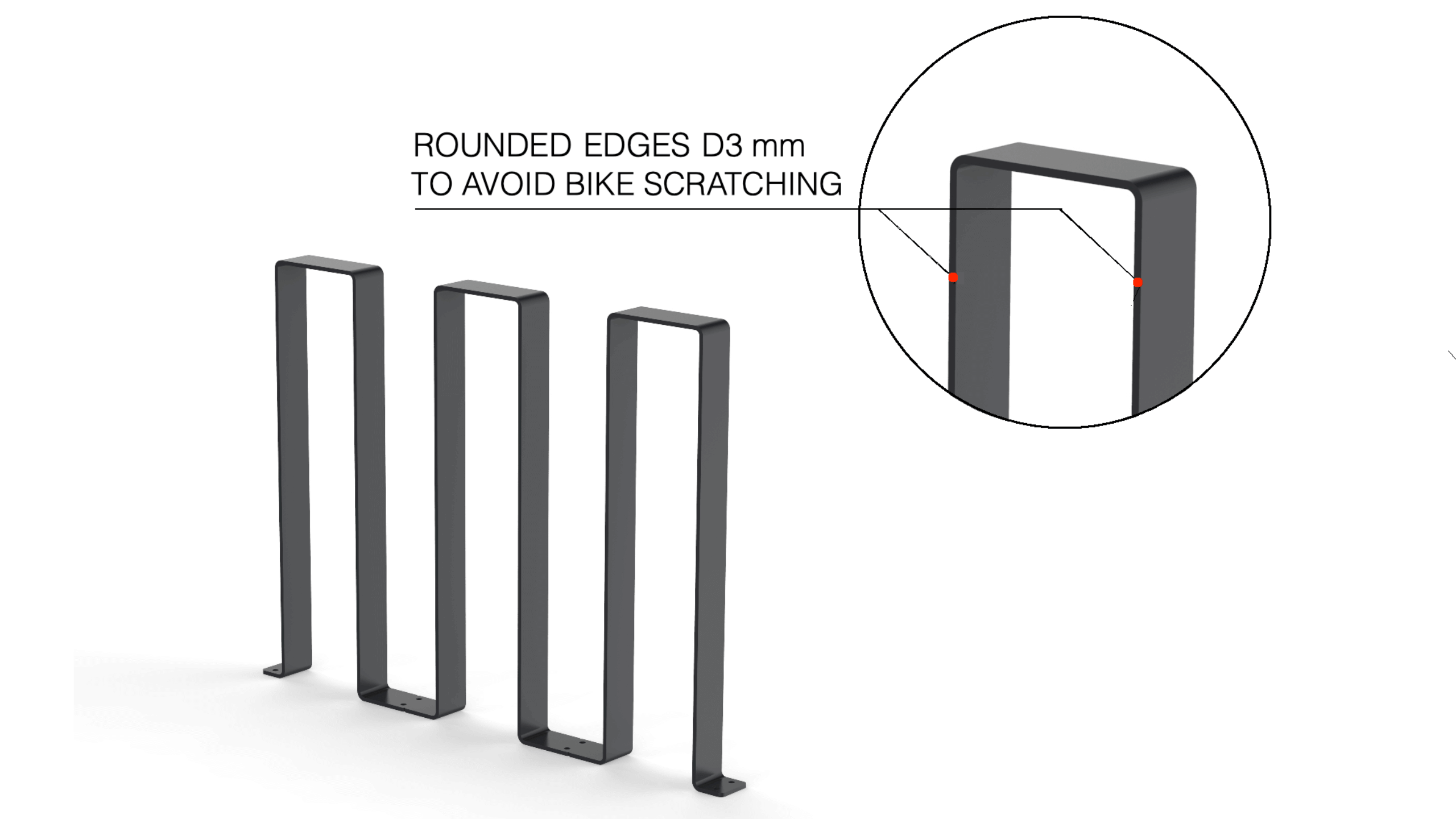

The body of the Modular Bike Rack 13208 is constructed from flat steel, and to make it more user-friendly, the edges are rounded to avoid possible scratching of the bike frame.
Features:
- Distinctive, appealing design.
- Capacity: 1 bike per module for a single-sided or 2 bikes per module for a double-sided rack.
- It comes flat-packed with easy set-up instructions.
- The frame comes in 2 options:
- Carbon steel with anti-rust coating – a solid and robust option for extensive usage.

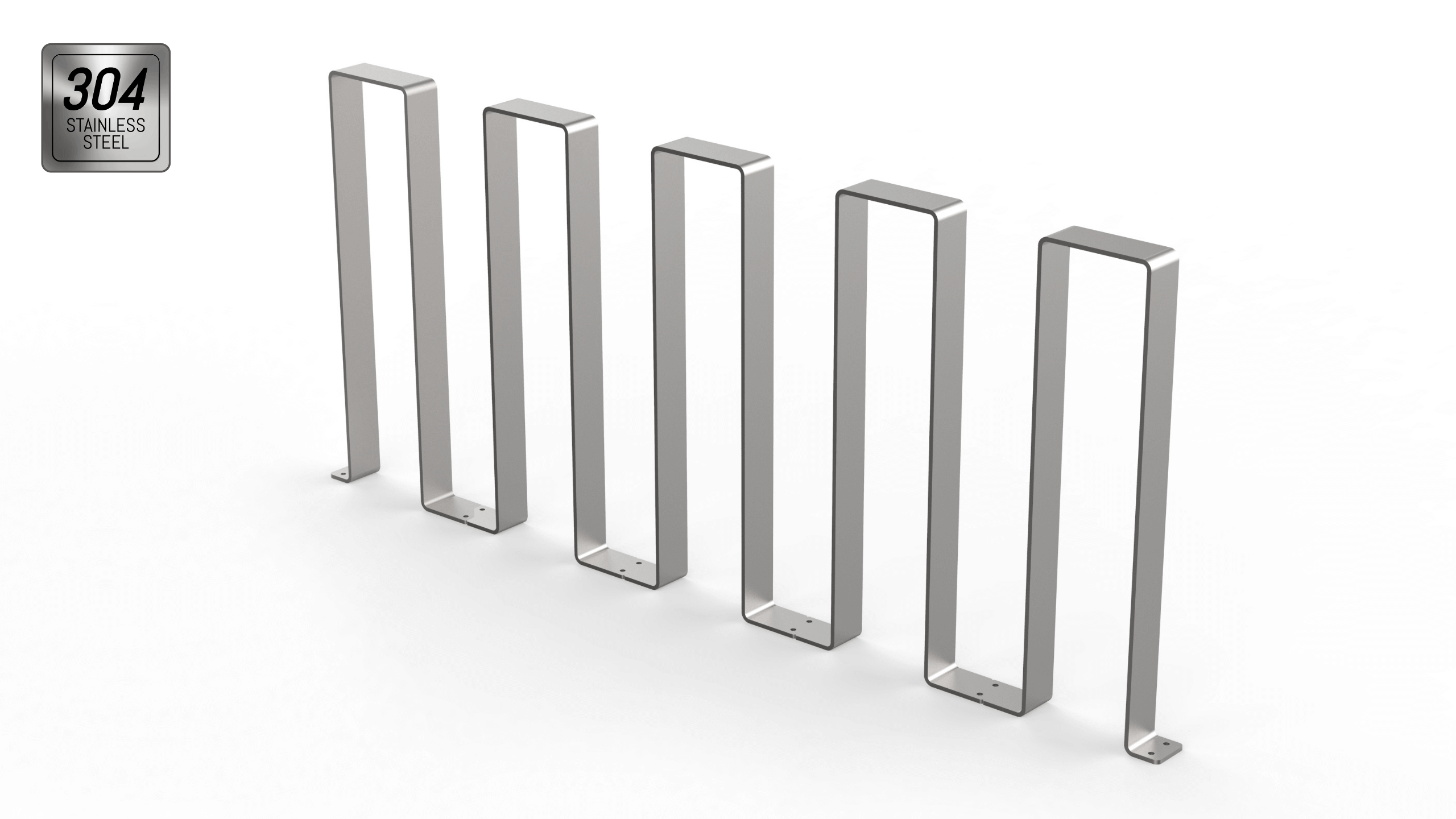

- Stainless steel with a semi-matte finish – provides a contemporary look and minor maintenance.
We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.
Read more about materials and choose the color from our color palettes.
SPECS

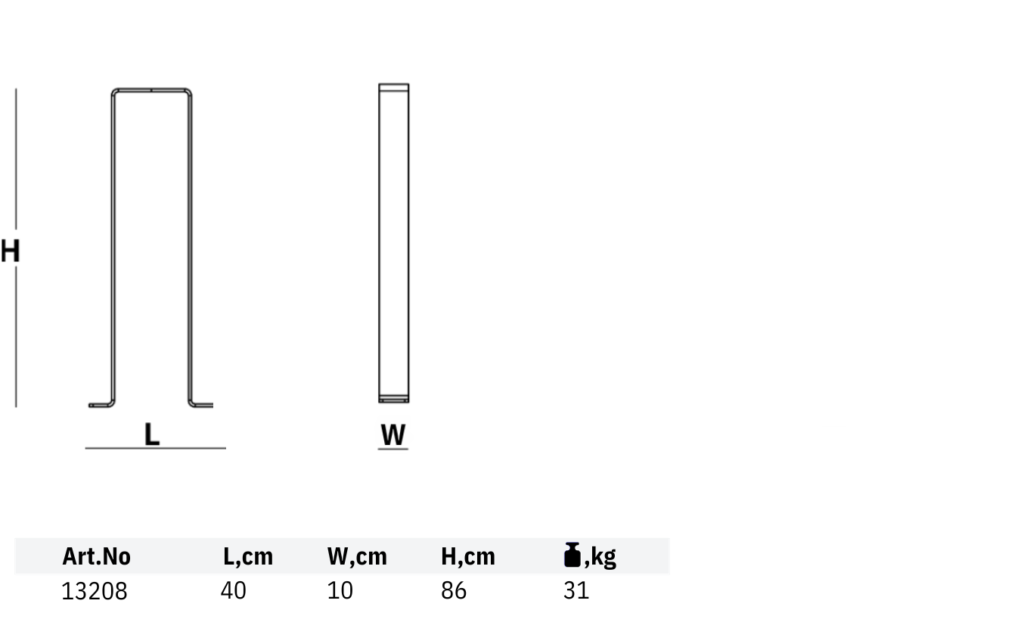

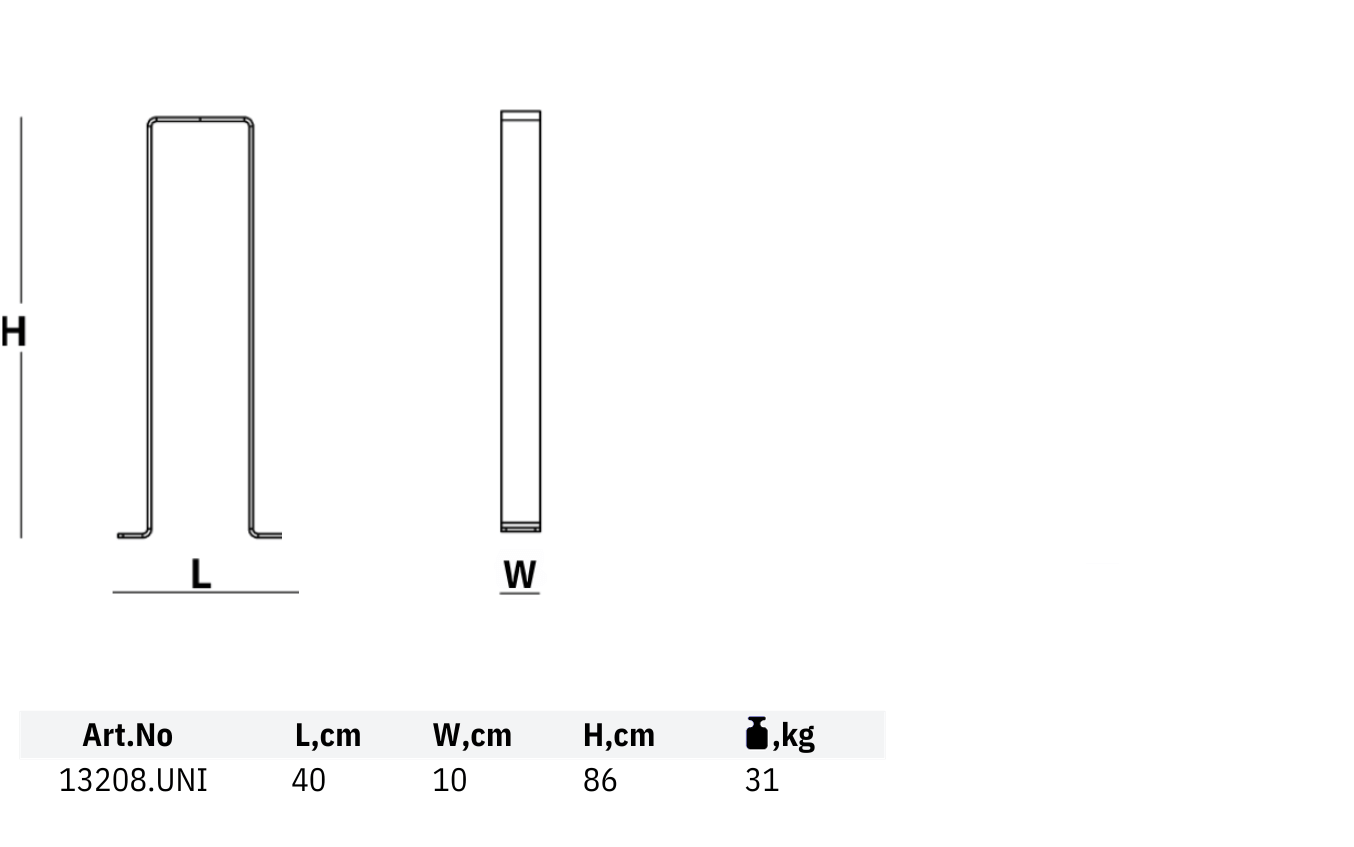

| DIMENSIONS, cm | 10(W) x 40(L) x 86 (H)
|
| WEIGHT, kg | 31 |
| MATERIAL | For frame: • Carbon steel or • Stainless steel more about Materials |
| FINISH | For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted For Stainless steel: • Brushed finish or • Bead blasted (subject to availability) |
| COMPONENTS | Stainless steel A2 screws |
| QTY ON PALLET | 15 units on Pallet 80×200 cm |
INSTALLATION
The bike rack 13208 is ready for installation; it has mounting holes for anchoring in the ground.
Mounting method
The bike rack’s default mounting method is on-ground. Please refer to the Installation Instructions.
If sub-surface fastening is needed, we will modify the steel framework appropriately. Longer lead time and possible additional charges may apply.
Anchors
The bike rack does not include anchors.
Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials.
ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.
The package includes:
- A bike rack, assembled and ready to install – 1 pc.
- QR code labels linking to the Installation and Maintenance Instructions.
- A Packing list.
MAINTENANCE
Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
- Materials and finishes used for the Product
- Influence of environmental conditions on urban furniture
- Care and maintenance
- The expected lifecycle
