Name: Bike Rack 13204
SKU: 13204
Availability: InStock

Additional information

Single or in Block	Single Rack, Block of 2 Racks, Block of 3 Racks, Block of 4 Racks, Block of 5 Racks, Block of CIRCLE
Material & finish	Carbon steel galvanized & painted

DESCRIPTION

Compact & Simple

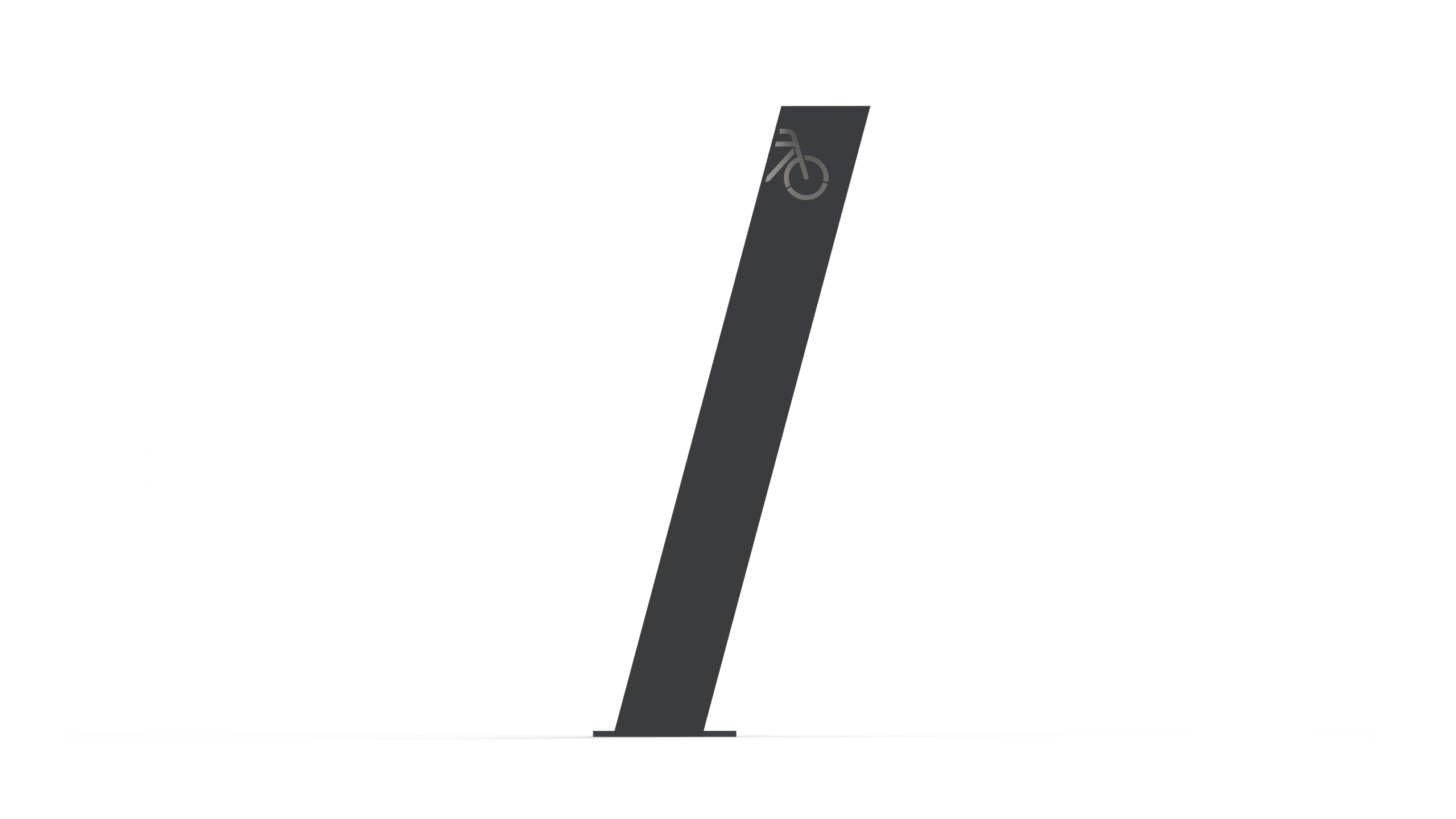

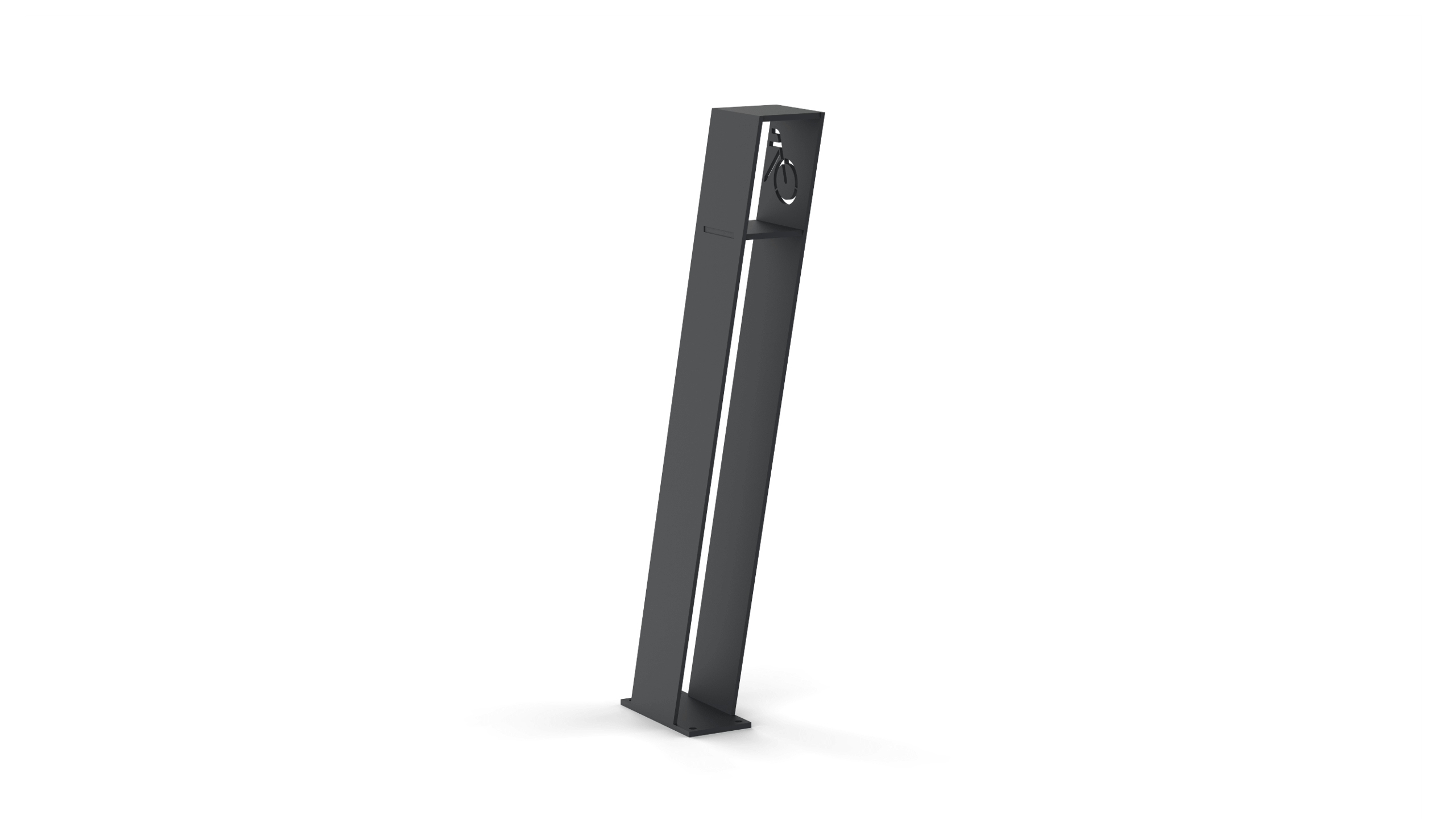

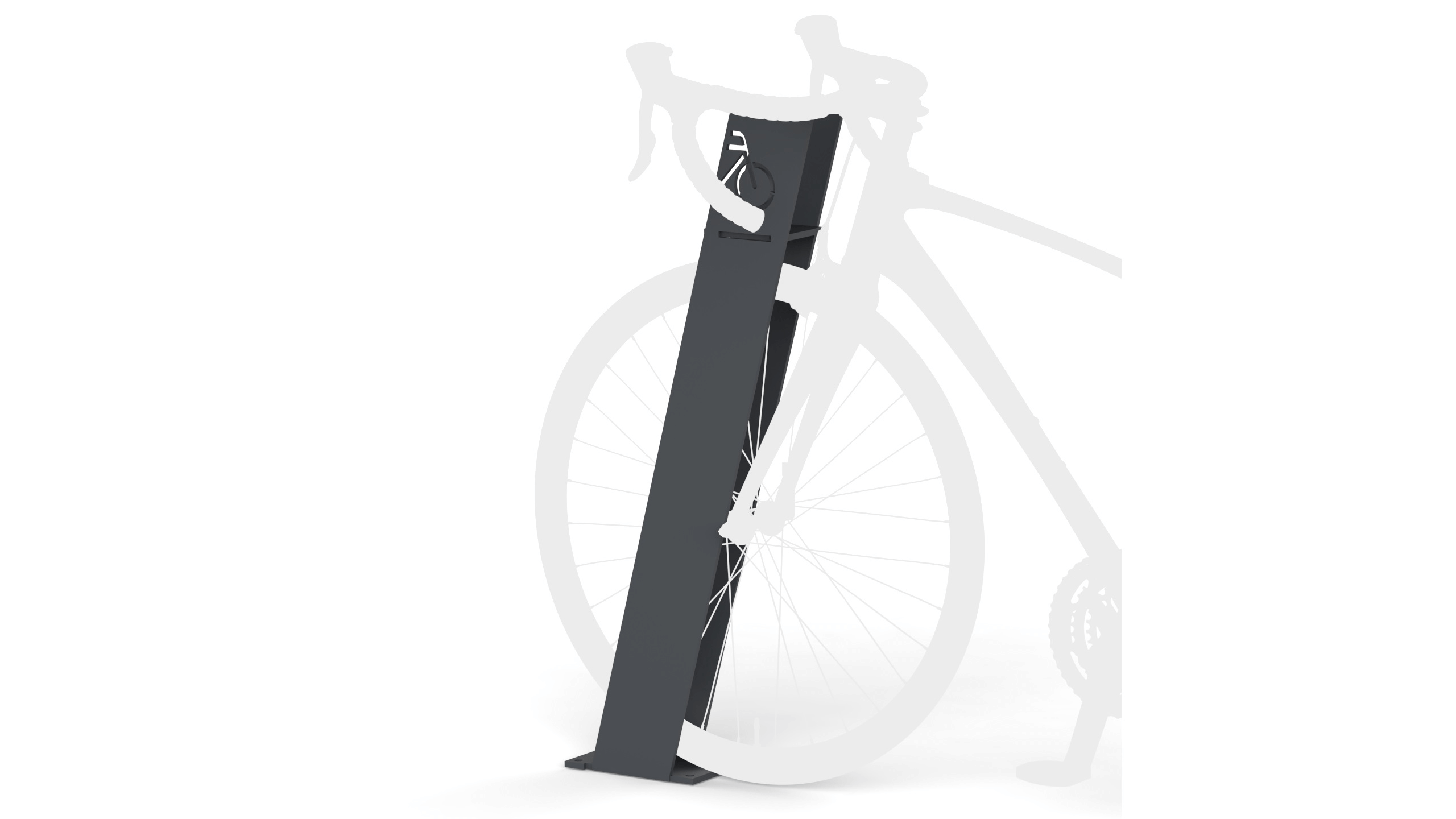

The Bike Rack 13204 may appear deceptively simple with its minimalist design, yet it harbors a rather unique feature. Thanks to the slope of bicycle rack, it falls into the category of ‘secure bike racks’. This incline is strategically designed to securely fasten bicycles to the frame, ensuring their safe storage.

A variety of Bike Rack 13204 configurations are offered, ranging from a freestanding single rack to a circular block, making cityscapes more eye-catching.

Features:

Unique and practical design.

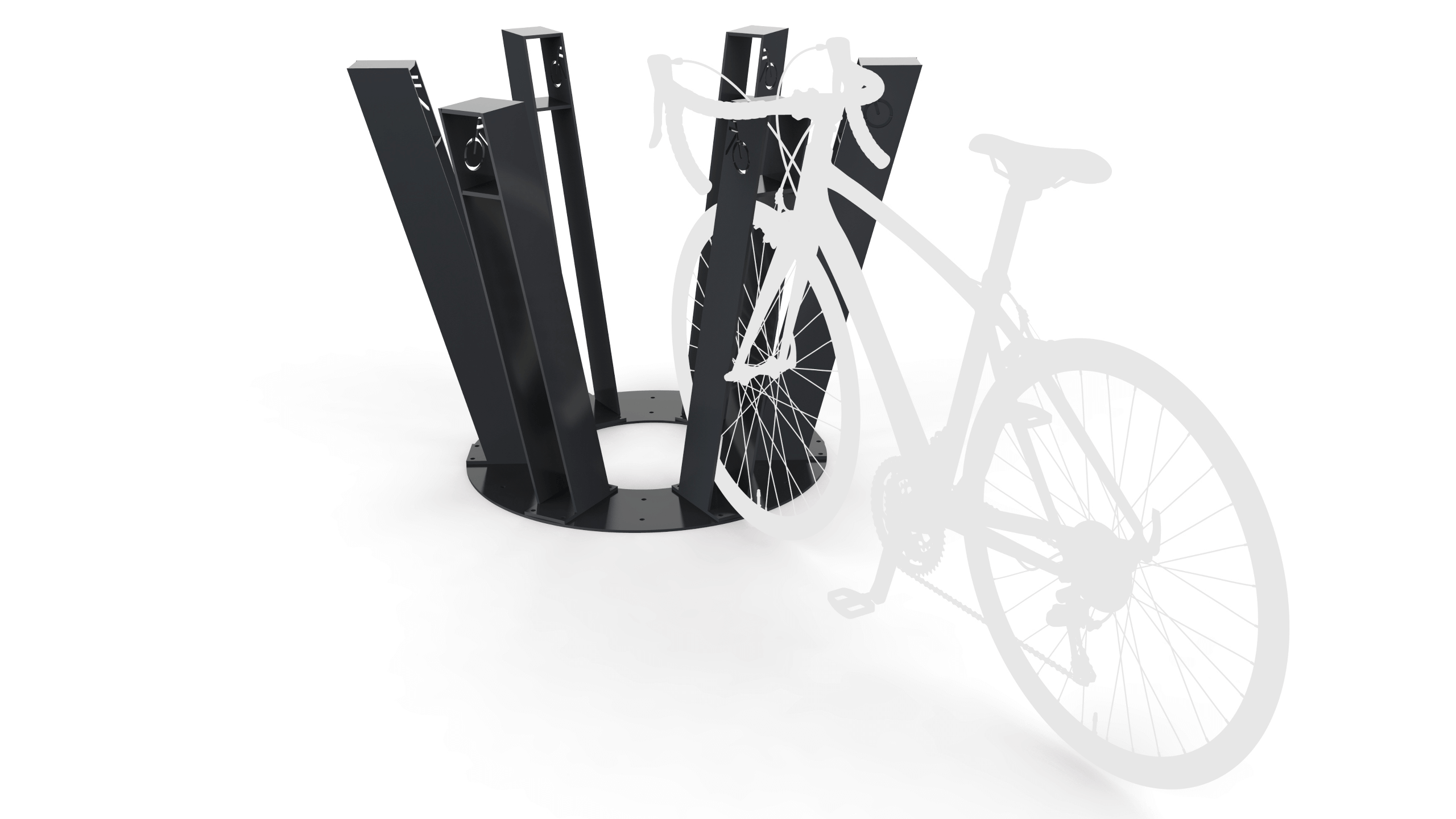

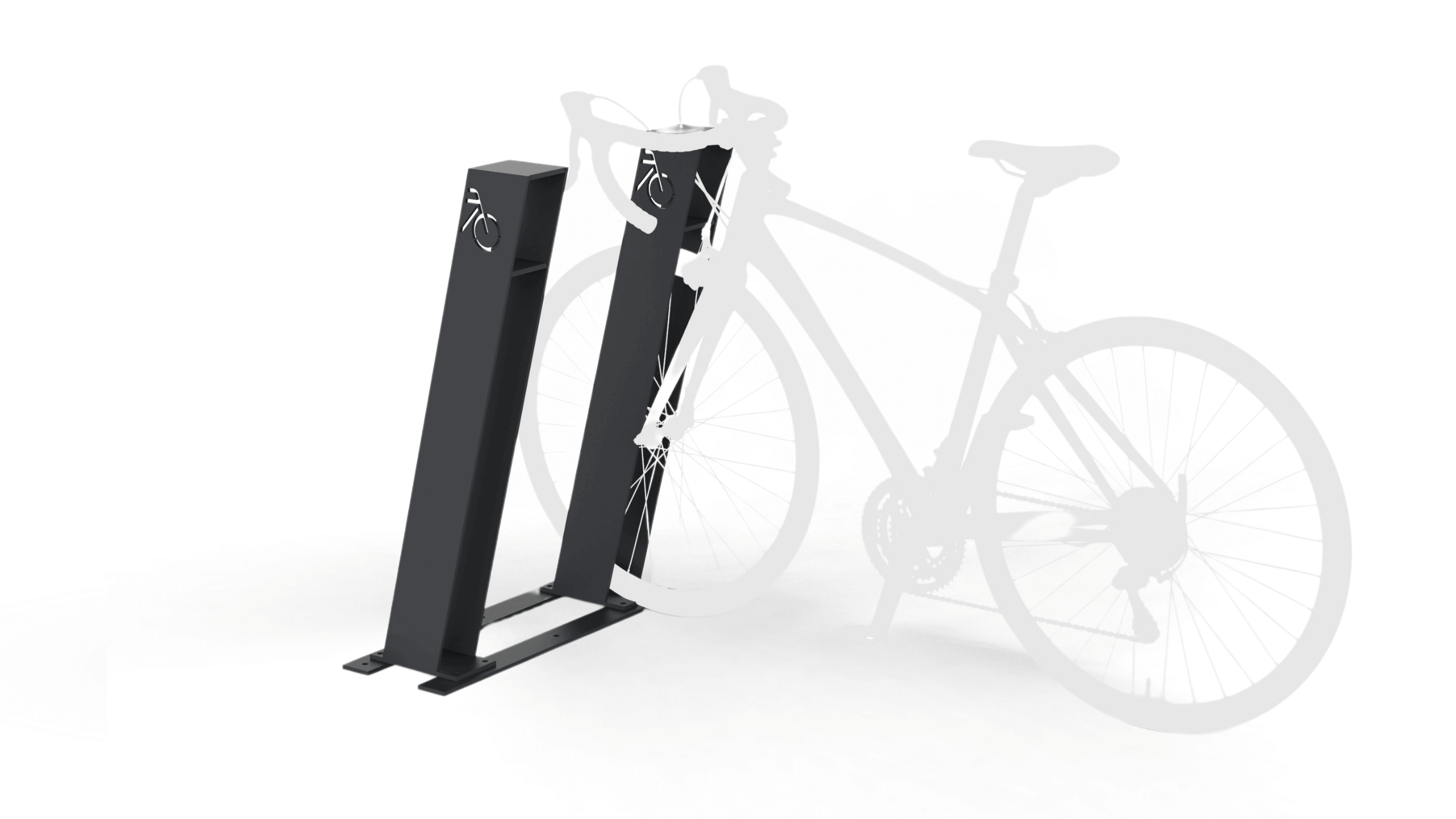

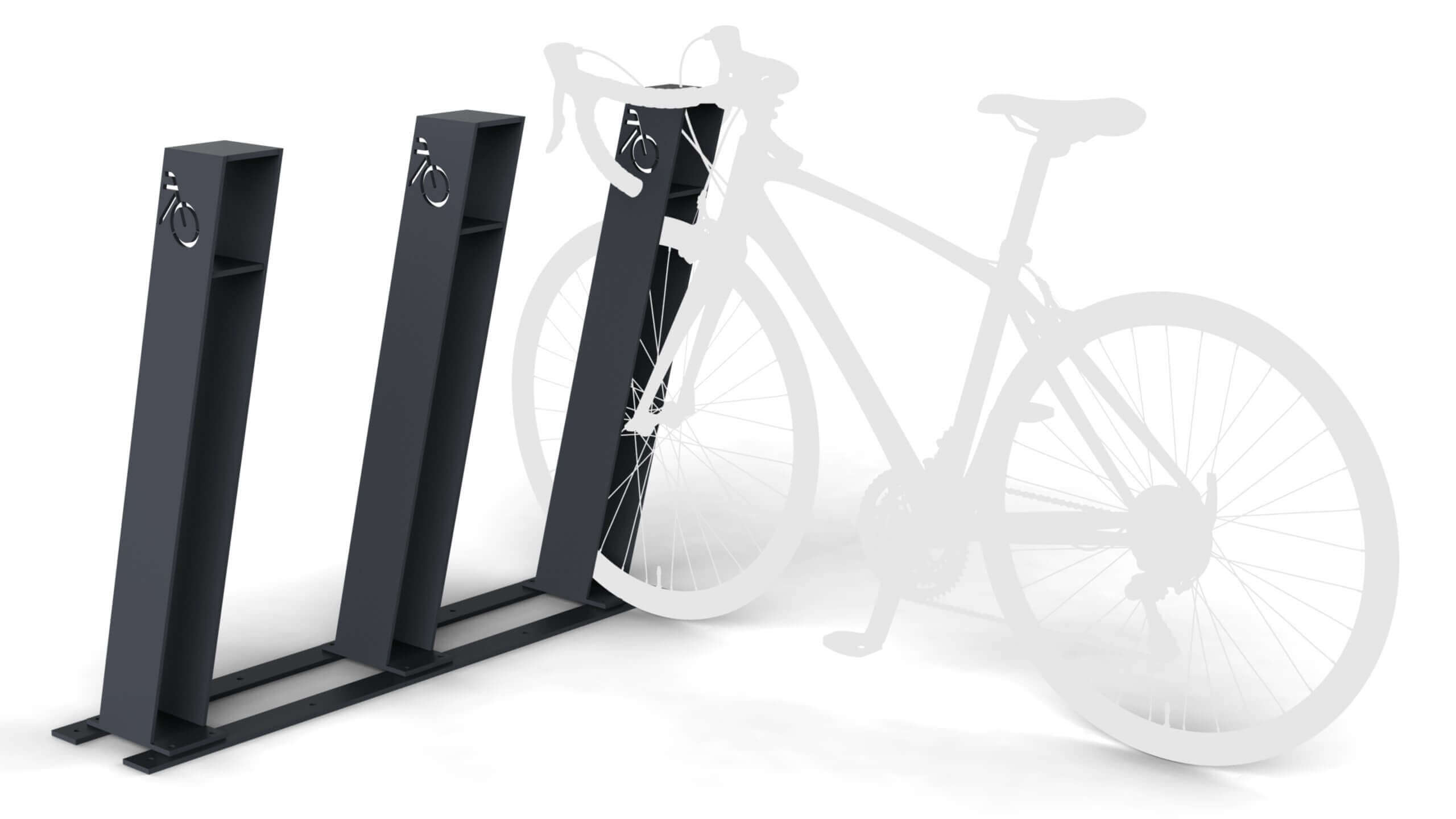

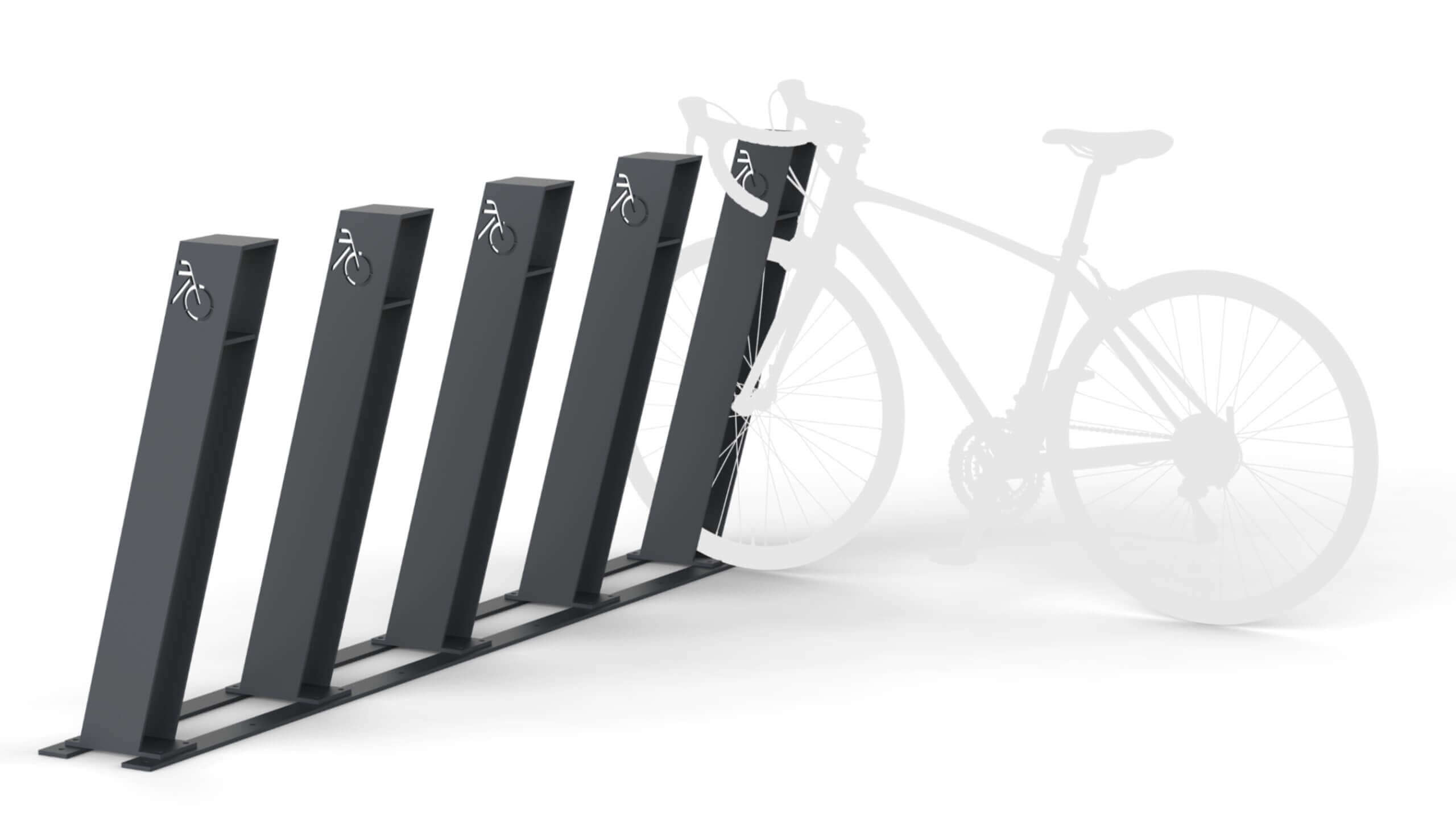

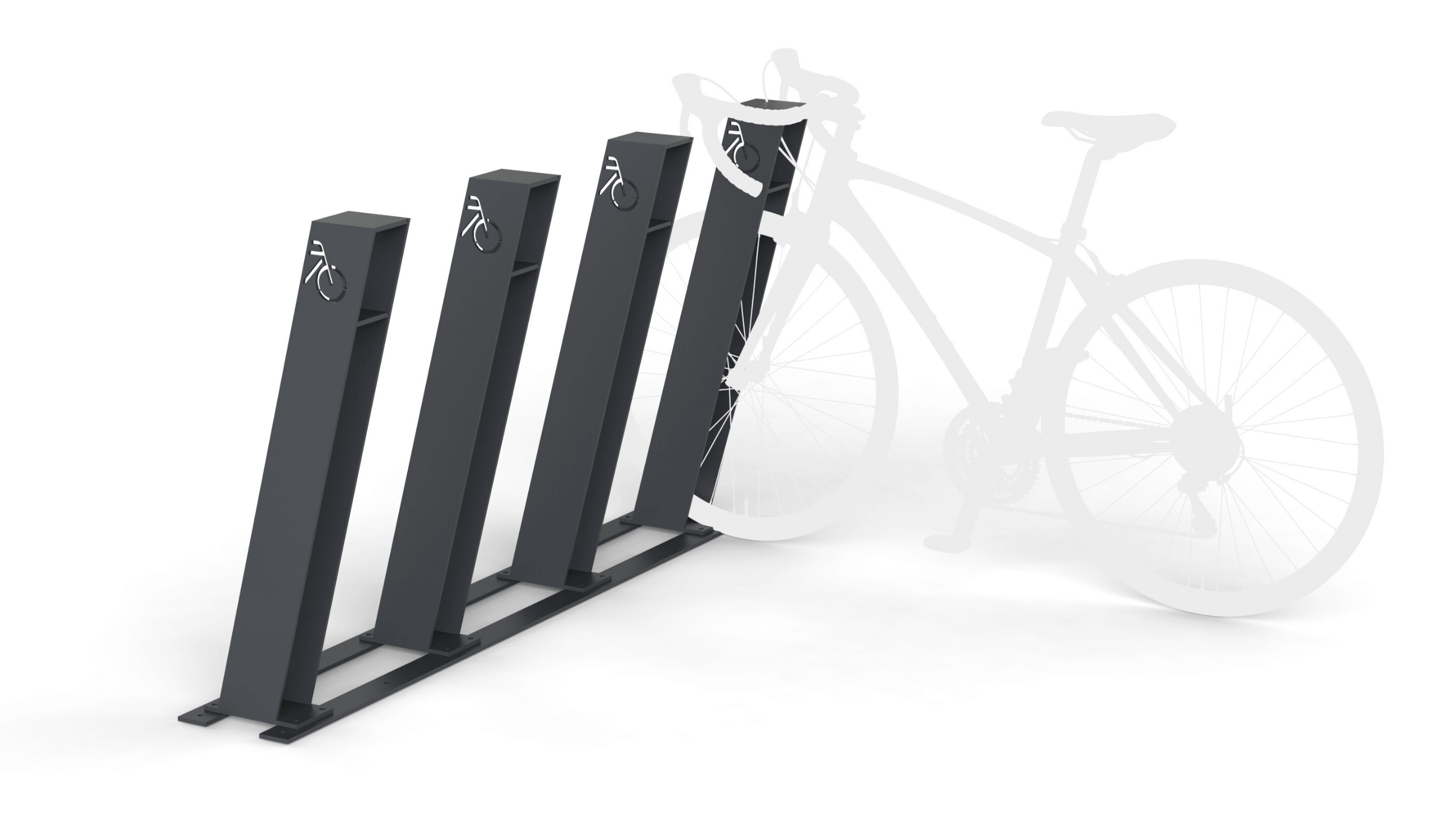

Capacity: Freestanding rack or a Block of 2, 3, 4 or 5 racks in line, or round block CIRCLE of 6 bikes.
Frame material:Carbon steel with anti-rust coating – a solid and robust option for extensive usage.
It comes flat-packed with easy set-up instructions.

We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.

Read more about materials and choose your color from our color palettes.

SPECS

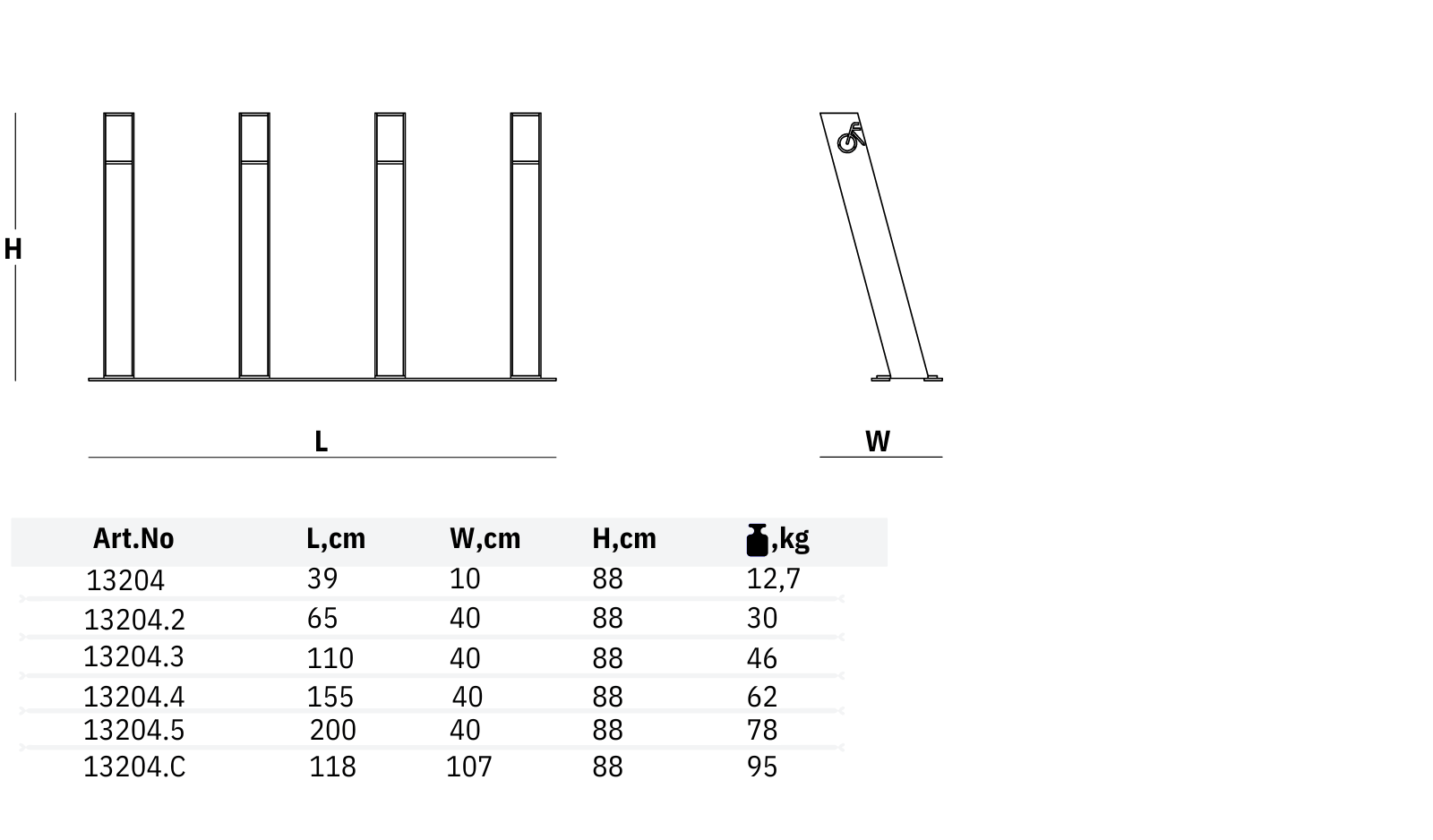

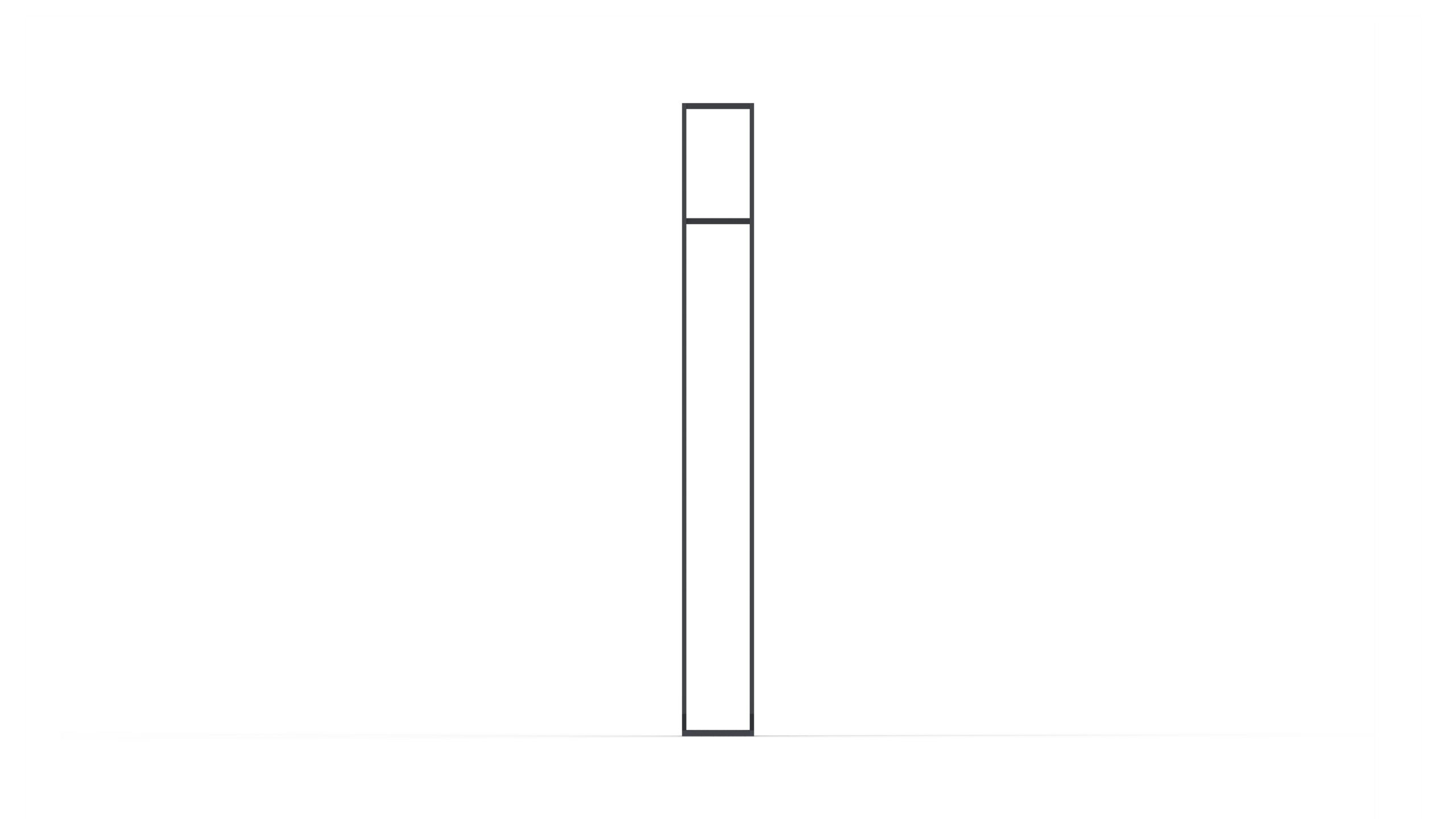

DIMENSIONS, cm	•10 (W) x 39 (L) x 88 (H) – For Art.No 13204 •40 (W) x 65 (L) x 88 (H) – For Art.No 13204.2 •40 (W) x 110 (L) x 88 (H) – For Art.No 13204.3 •40 (W) x 155 (L) x 88 (H) – For Art.No 13204.4 •40 (W) x 200 (L) x 88 (H) – For Art.No 13204.5 •107 (W) x 118 (L) x 88 (H) – For Art.No 13204.C
WEIGHT, kg	•12,7 – For Art.No 13204 •30 – For Art.No 13204.2 •46 – For Art.No 13204.3 •62 – For Art.No 13204.4 •78 – For Art.No 13204.5 •95 – For Art.No 13204.C
MATERIAL	For body: • Carbon steel more about Materials
FINISH	For Carbon steel: • Hot dip galvanized or • Hot dip galvanized and painted
COMPONENTS	Stainless steel A2 screws
QTY ON PALLET	•24 units on Pallet 80×200 cm – For Art.No 13204 •6 units on Pallet 80×200 cm – For Art.No 13204.3 •4 units on non-standard size pallet – For Art.No 13204.5 •6 units on non-standard size pallet – For Art.No 13204.C

INSTALLATION

The bike rack 13204 is ready for installation; it has mounting holes for anchoring in the ground.

Mounting method

The bike rack’s default mounting method is on-ground. Please refer to the Installation Instructions.

If sub-surface fastening is needed, we will modify the steel framework appropriately. Longer lead time and possible additional charges may apply.

Anchors

The bike rack does not include anchors.

Depending on the mounting surface, loads, and external conditions, the contractor chooses the proper anchoring method and materials.

ANCHOR.200 ensures secure fastening and minor visible elements. Countersunk or ‘mushroom’ type bolts deliver a ‘clean’ look in case the anchoring screws are exposed. ANCHOR.200 can be ordered here.

The package includes:

A bike rack, assembled and ready to install – 1 pc.
QR code labels linking to the Installation and Maintenance Instructions.
A Packing list.

MAINTENANCE

Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:
