Bench 11205.BENCH.65.STEEL

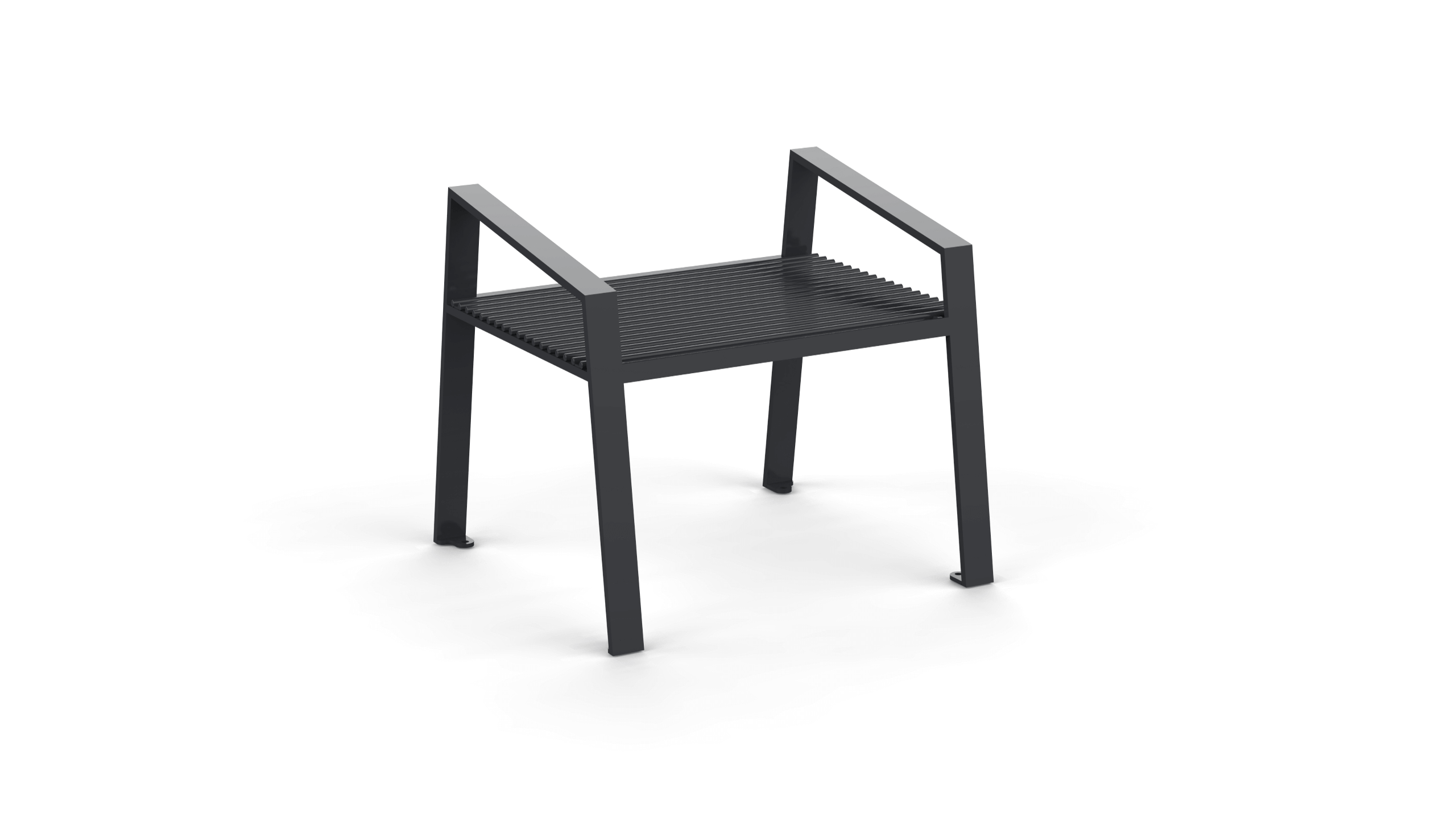

metal bench without backrest

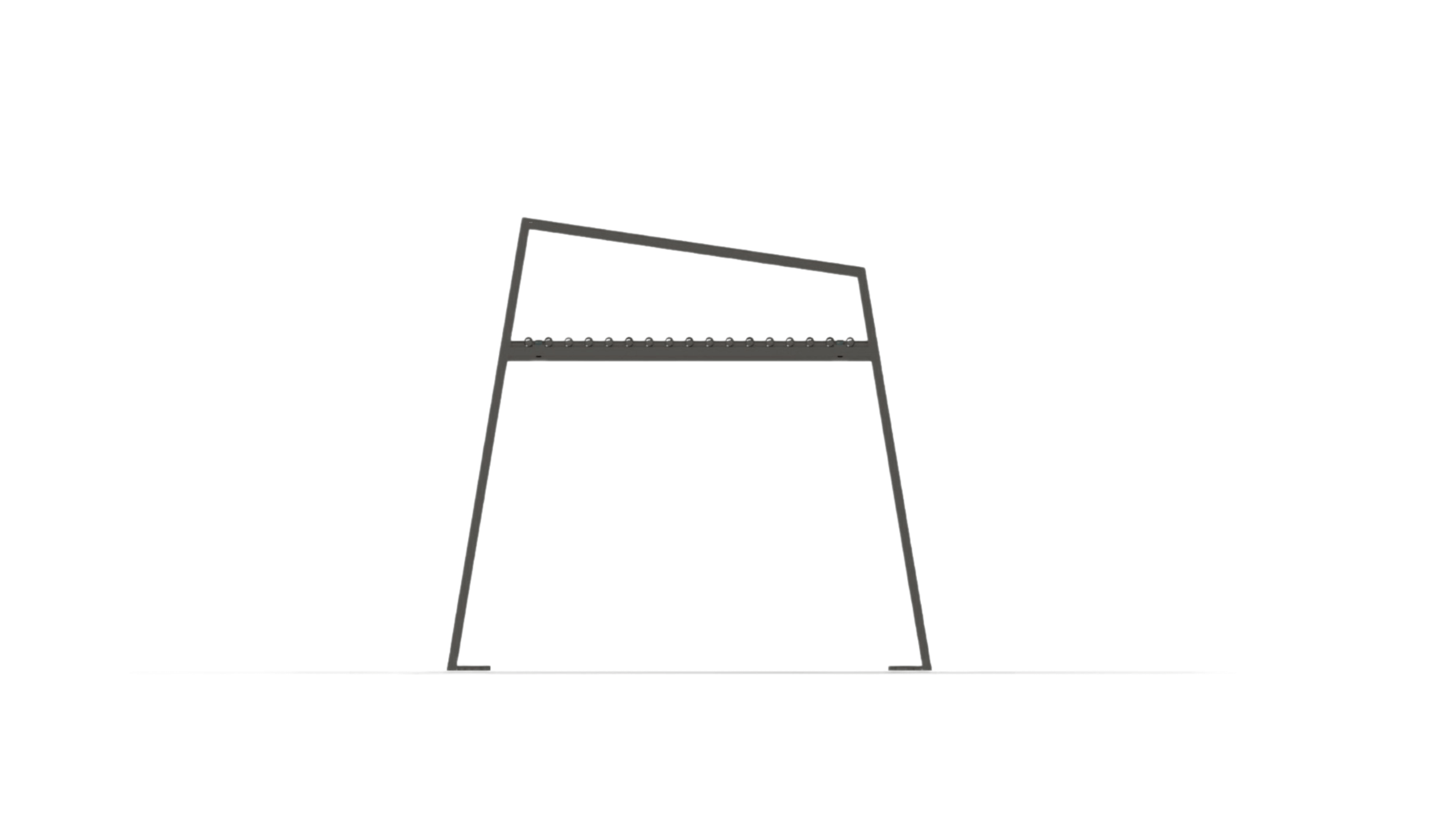

carbon steel park benches without backrest side view

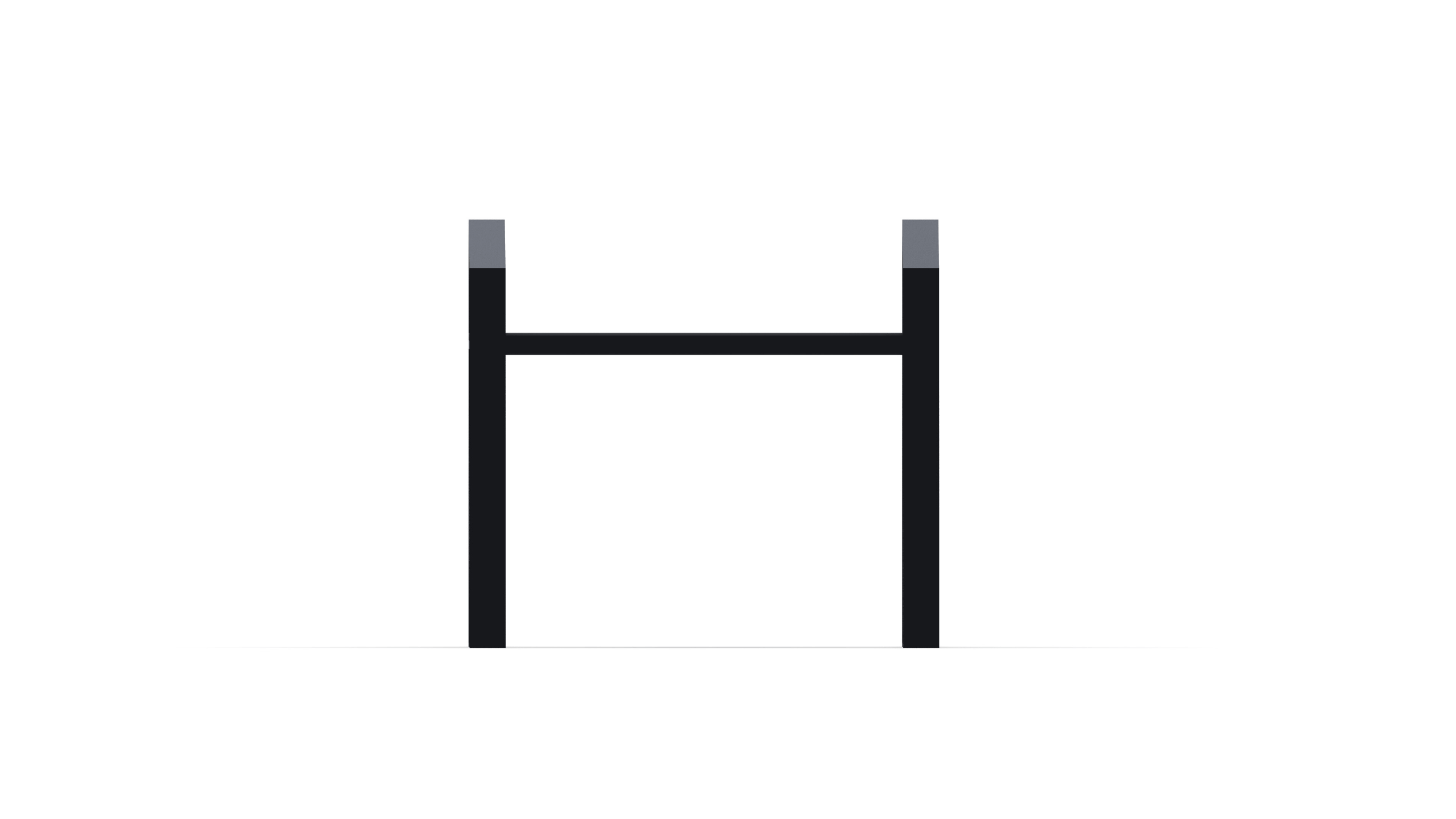

metal bench without backrest counter view

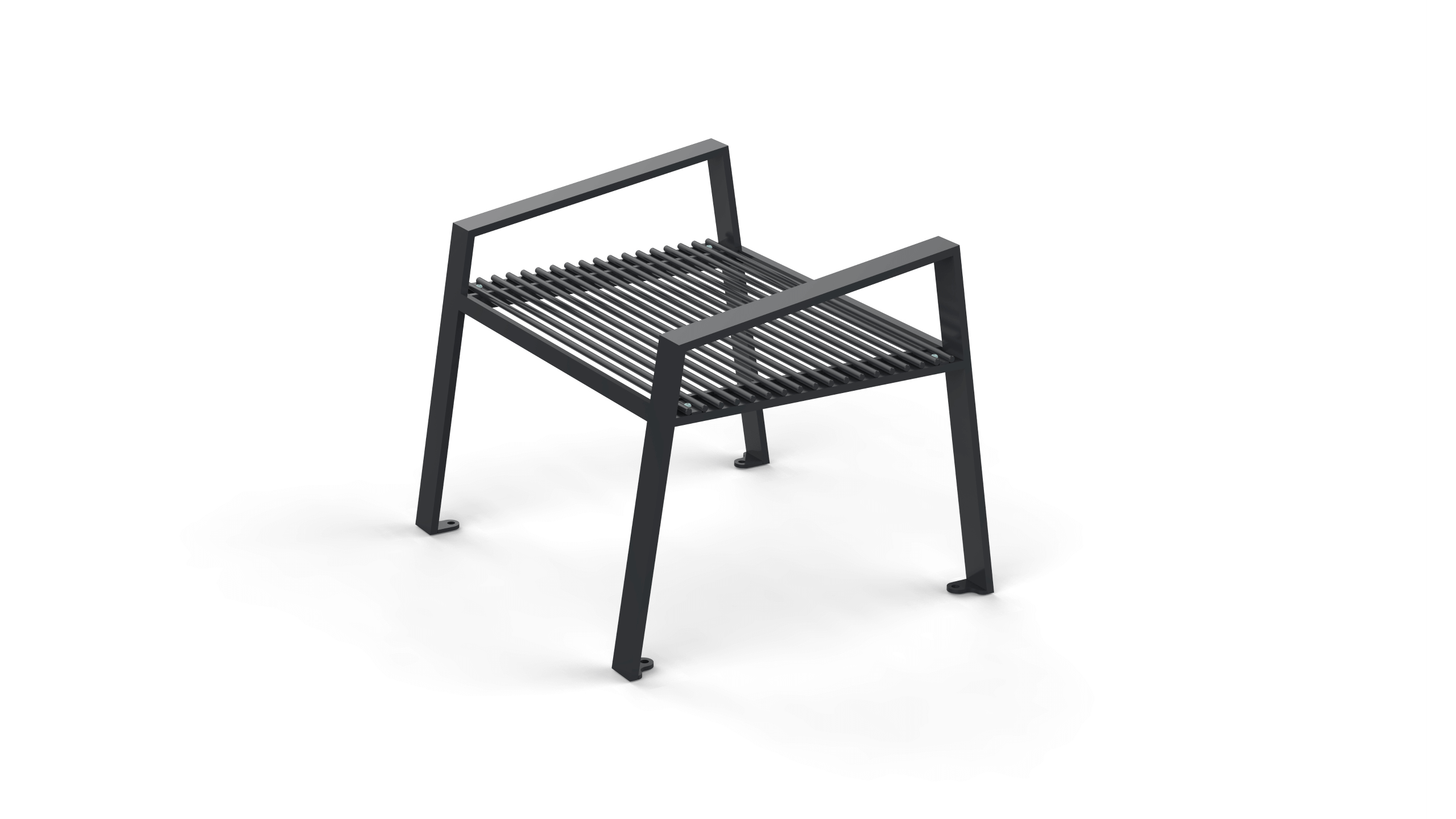

carbon steel metal bench without backrest

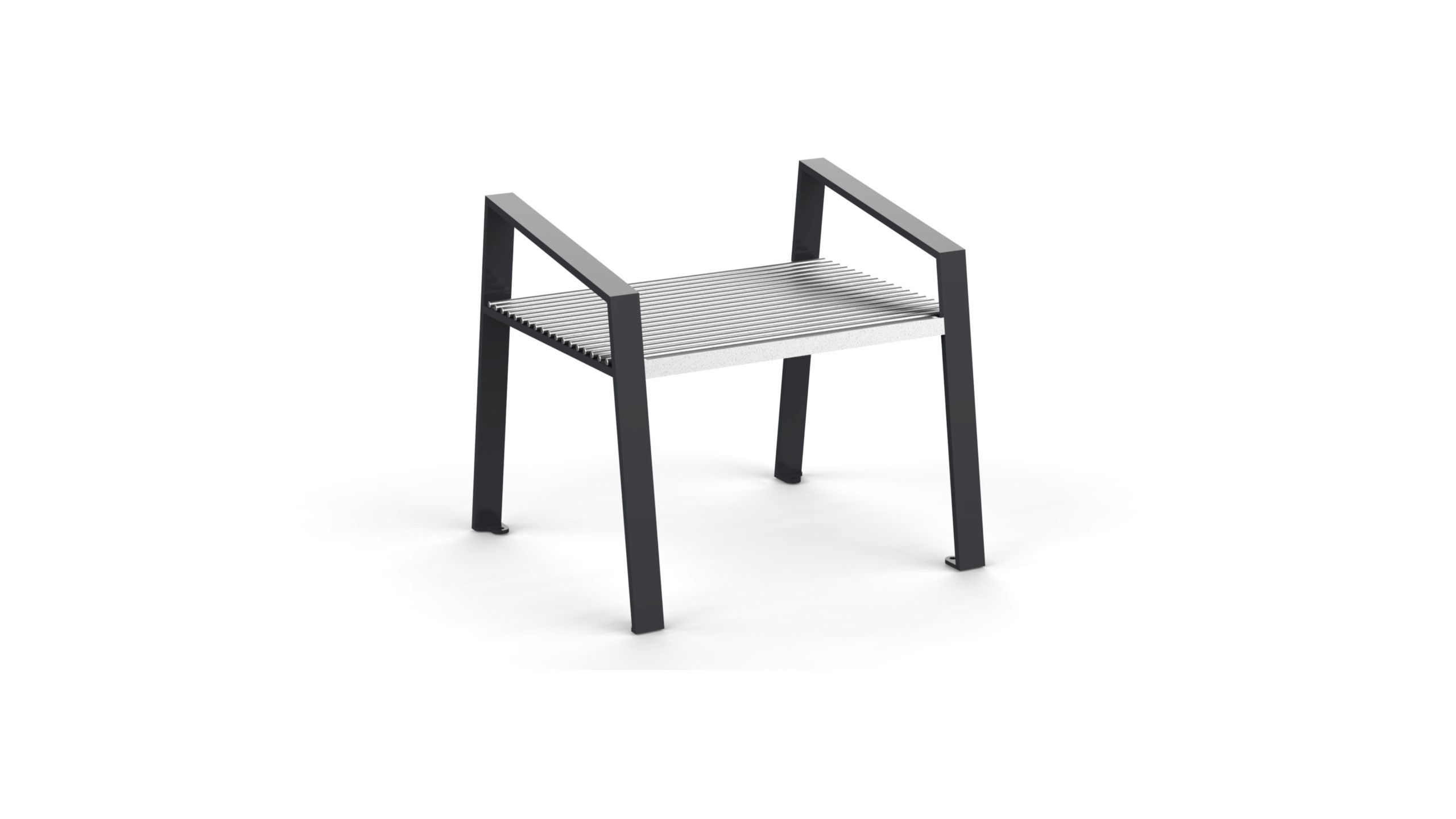

Bench 11205.BENCH.65.STEEL - Image 5

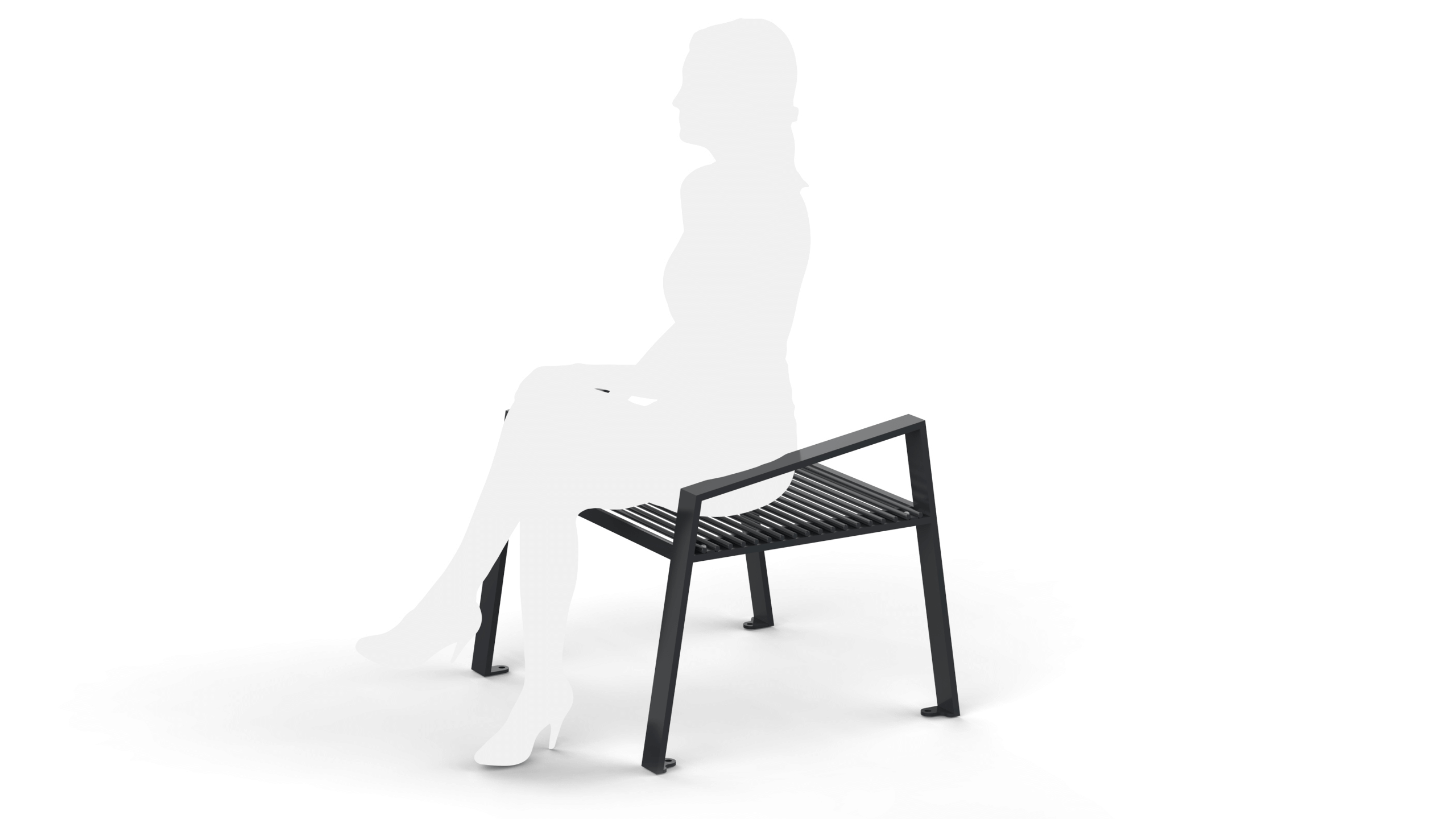

carbon steel street bench with a human silhouette

Bench 11205.BENCH.65.STEEL

€245.00 excl. VAT




SKU: 11205.BENCH.65.STEEL Category: Tags: , , ,

Additional information

Weight30 kg
Dimensions65 × 60 × 59 cm
Seat material & finish

Carbon steel galvanized & painted, Stainless steel

DESCRIPTION

Elegant & Durable

Bench 11205.BENCH.65.STEEL belongs to the LeanLine series and features a sleek, minimalist look. It also carries durability for harsh climates and urban impacts, ensuring it withstands tough weather conditions while maintaining its quality and aesthetic appeal over time. Its refined, slender form integrates organically into modern city environments.



Bench 11205.BENCH.65.STEEL features:

  • The frame is made of either carbon steel coated with and anti-corrosion.
  • The seat is made of carbon steel or stainless steel for ensuring long-lasting durability and resilience.
  • Stainless steel can hardly be damaged or scratched and is suited for extensively used spaces.
  • The carbon steel frame comes in various colors, making it easy to blend in with urban or natural environments.Color variations include 22 RAL tones, choosing from Contemporary, Nature and Accents palettes.



We recommend choosing ANCHOR.200 for additional secure mounting support. The threaded part of ANCHOR.200 is anchored in the concrete footing, thus providing secure and load-bearing support. ANCHOR.200 can be ordered here.

SPECS

DIMENSIONS, cm60(W) x 65(L) x 59 (H)

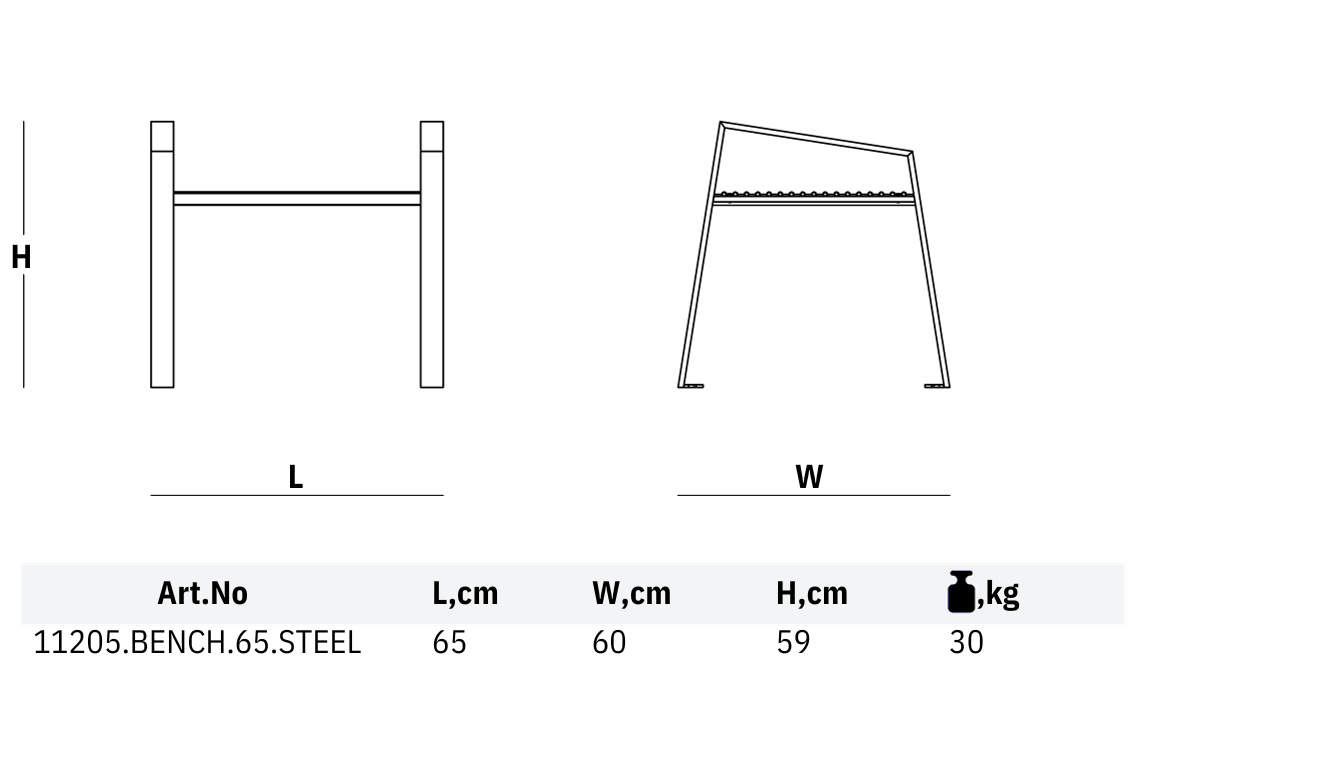

11205 bench 65 steel dimensions carbon steel street bench

WEIGHT, kg30
MATERIALFor frame:
• Carbon steel
For seat:
• Carbon steel or
• Stainless steelmore about Materials
FINISHFor Carbon steel:
• Hot dip galvanized and painted
For Stainless steel:
• Brushed finish or
• Bead blasted (subject to availability)
COMPONENTSStainless steel bolts
QTY ON PALLET10 units on Pallet 80×200 cm

INSTALLATION

The  bench 11205.BENCH.65.STEEL is manufactured with pre-drilled holes and supplied with bolts, and it requires easy self-assembly.



Mounting  method

The benche’s default mounting method is on-ground. Please refer to the Installation Instructions.

If sub-surface fastening is needed, we will make the appropriate modifications to the steel framework. Longer lead time and possible additional charges may apply.



Anchors

The set of the bench does not include anchors.

The contractor is responsible for choosing the proper anchoring method and materials depending on the mounting surface, loads, and external conditions.

ANCHOR.200 ensures secure fastening and minor visible elements (countersunk or ‘mushroom’ type bolt). For the bench anchoring 4 sets of ANCHOR.200 can be ordered here.



The bench package includes:

  • Steel structure (bench legs) with holes for anchoring into the ground and for connecting to a seat – 1 pc.
  • Seat screwed onto the steel frame – 1 pc.
  • Bolts and nuts for the assembly of bench legs to seat.
  • QR code labels linking to the Installation and Maintenance Instructions.
  • Packing list.

Maintenance

Care and maintenance of urban furniture depends on a combination of factors: what materials are used in the product, what kind of protective coating is applied, and what environmental conditions impact the furniture. Below we share our best knowledge describing the following sections:



  • Materials and finishes used for the Product
  • Influence of environmental conditions on urban furniture
  • Care and maintenance
  • The expected lifecycle



Read more

Downloads

Dimensions
Installation scheme
Maintenance manual
CAD files
